Left Rear of Engine Compartment Components

Left Rear of Engine Compartment Components

Component Name Callout
M75 Windshield Wiper Motor 1
X60B Junction Block- Battery Cable 2
B19B Brake Booster Vacuum Sensor (L99 and LFX) 3
B20 Brake Fluid Level Switch 4

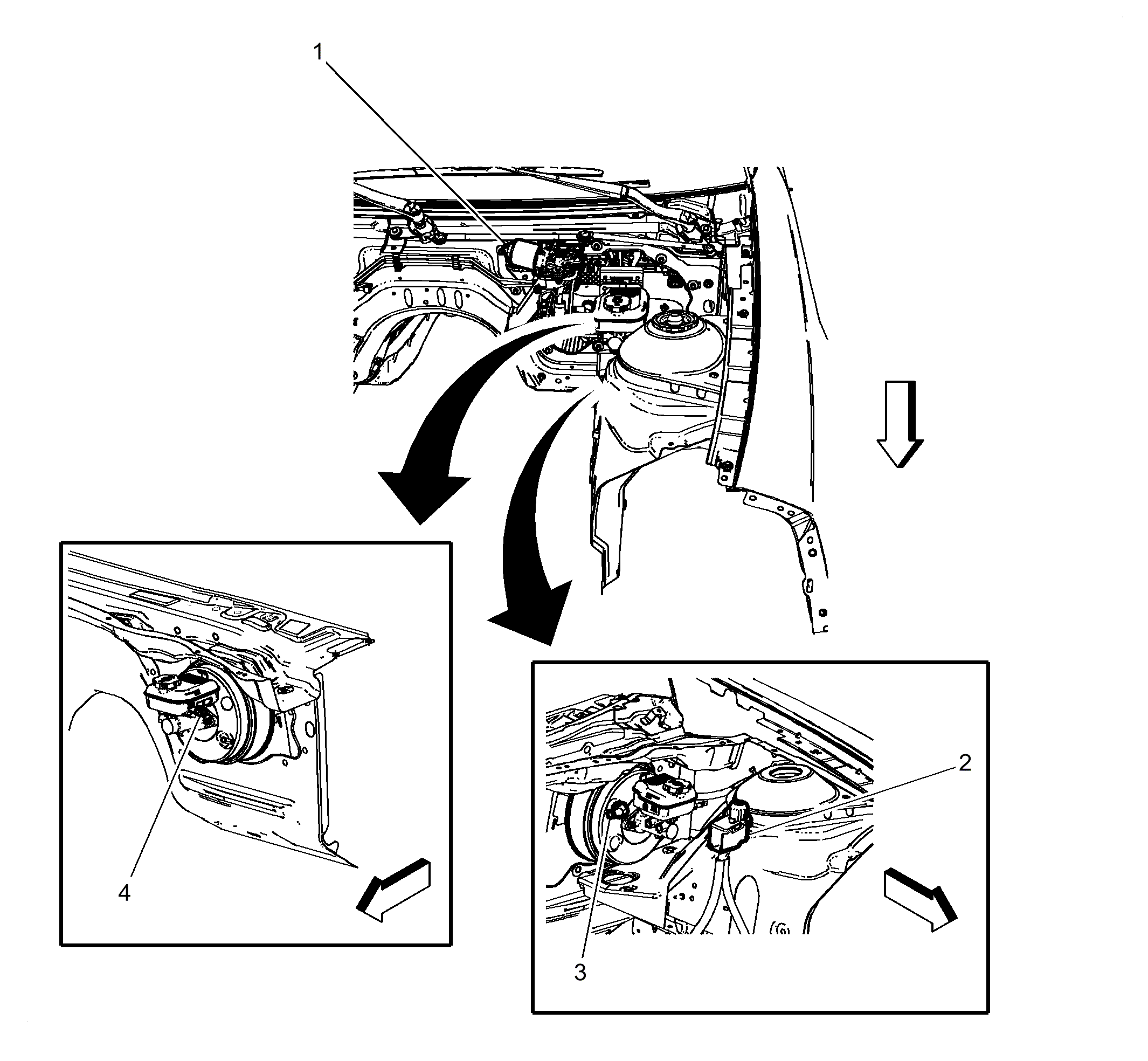

Fig 1: Left Rear of Engine Compartment Components
GM2291055Courtesy of GENERAL MOTORS COMPANY
