Starting and Charging Wiring Schematics: Charging

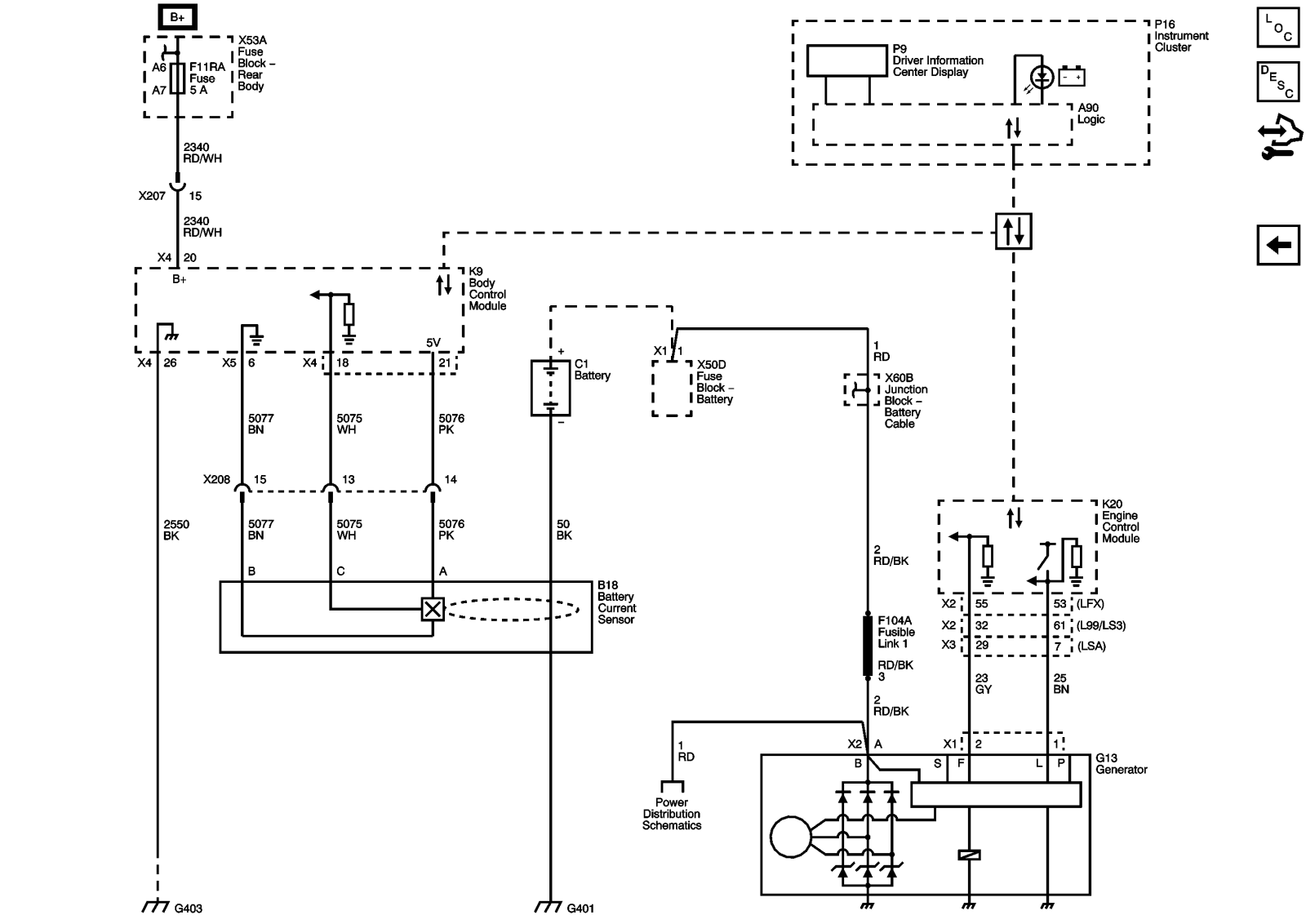

Fig 1: Charging System Wiring Schematic

GM2619140

Courtesy of GENERAL MOTORS COMPANY
