Starter Replacement (LFX)

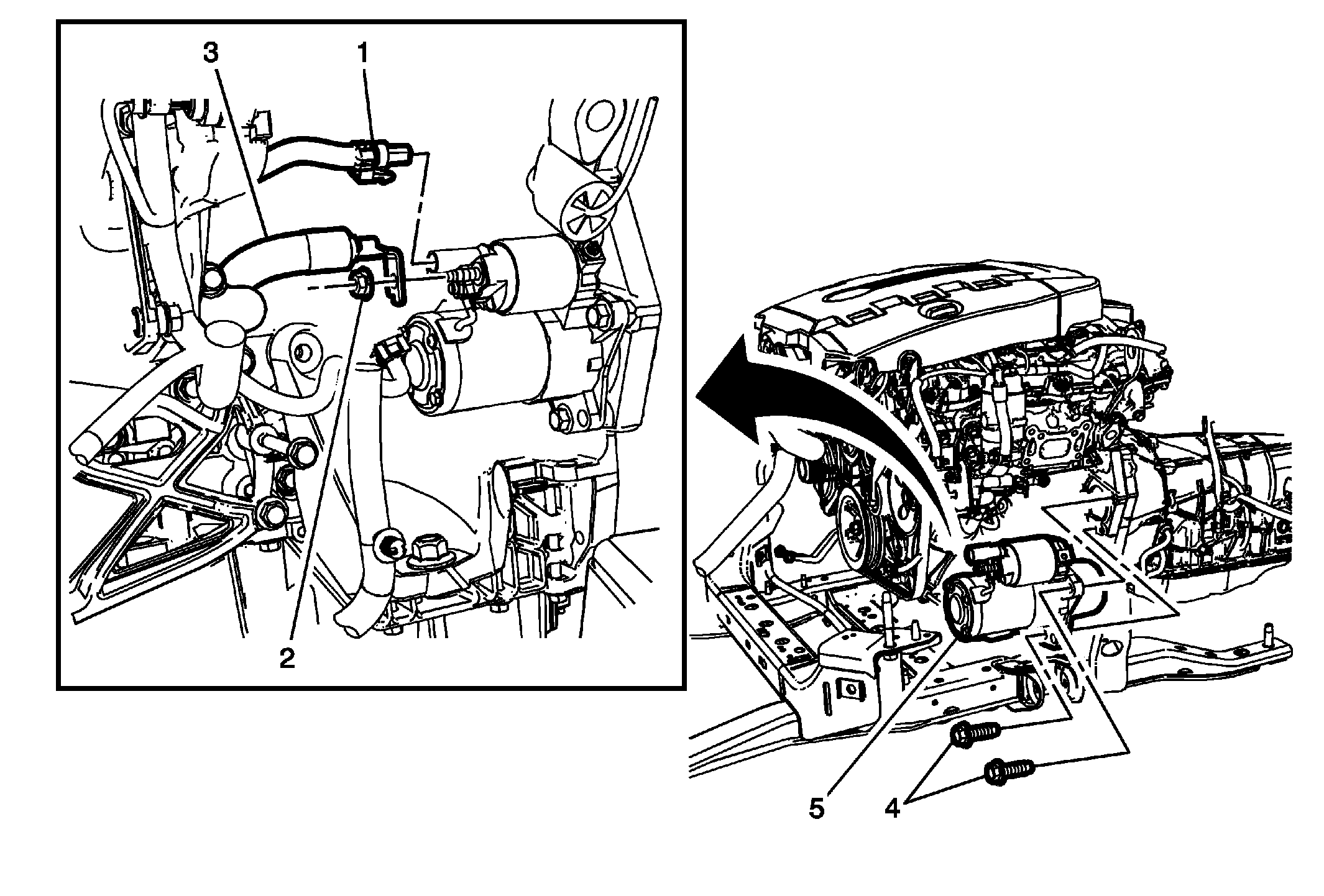

Fig 1: Starter, Engine Harness Connectors, Battery Positive Cable & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Engine Harness Connector
2	Battery Positive Fastener CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb in)
3	Battery Positive Cable
4	Starter Mounting Fasteners (Qty: 2) Tighten 58 N.m (43 lb ft)
5	Starter
