Auxiliary Audio Input (USR)
Auxiliary Audio Input (USR)

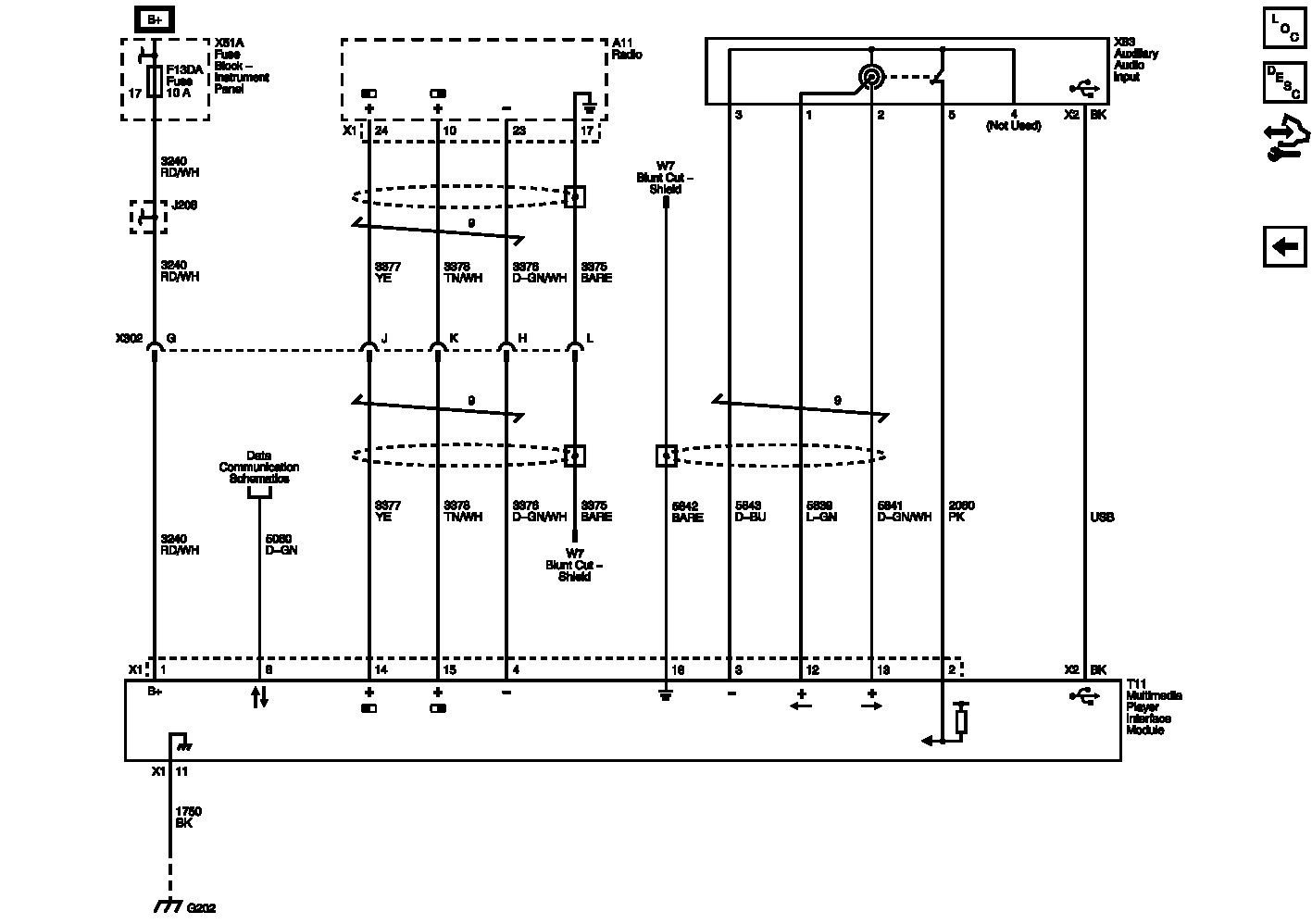

Fig 1: Auxiliary Audio Input Wiring Schematic (USR)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
