Cellular Telephone Wiring Schematics: UPH

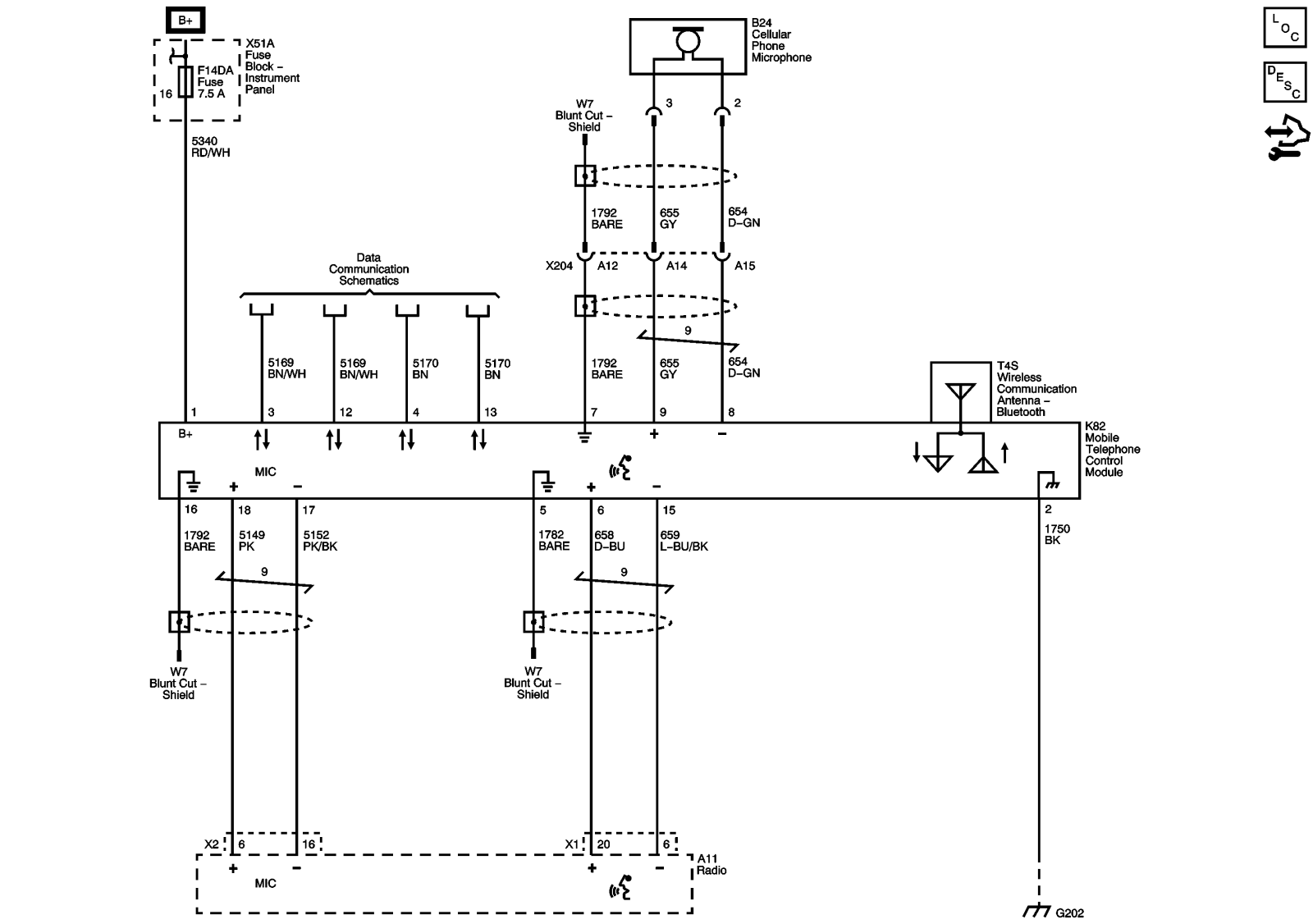

Fig 1: UPH Wiring Schematic

GM2625115

Courtesy of GENERAL MOTORS COMPANY
