Section 10 (Shift Lock Control System)
>>
Wiring Schematics
>>
Shift Lock Control Wiring Schematics
>>
MYB or MYC
MYB or MYC
WARNING:
This page is about a different variant/trim than selected.

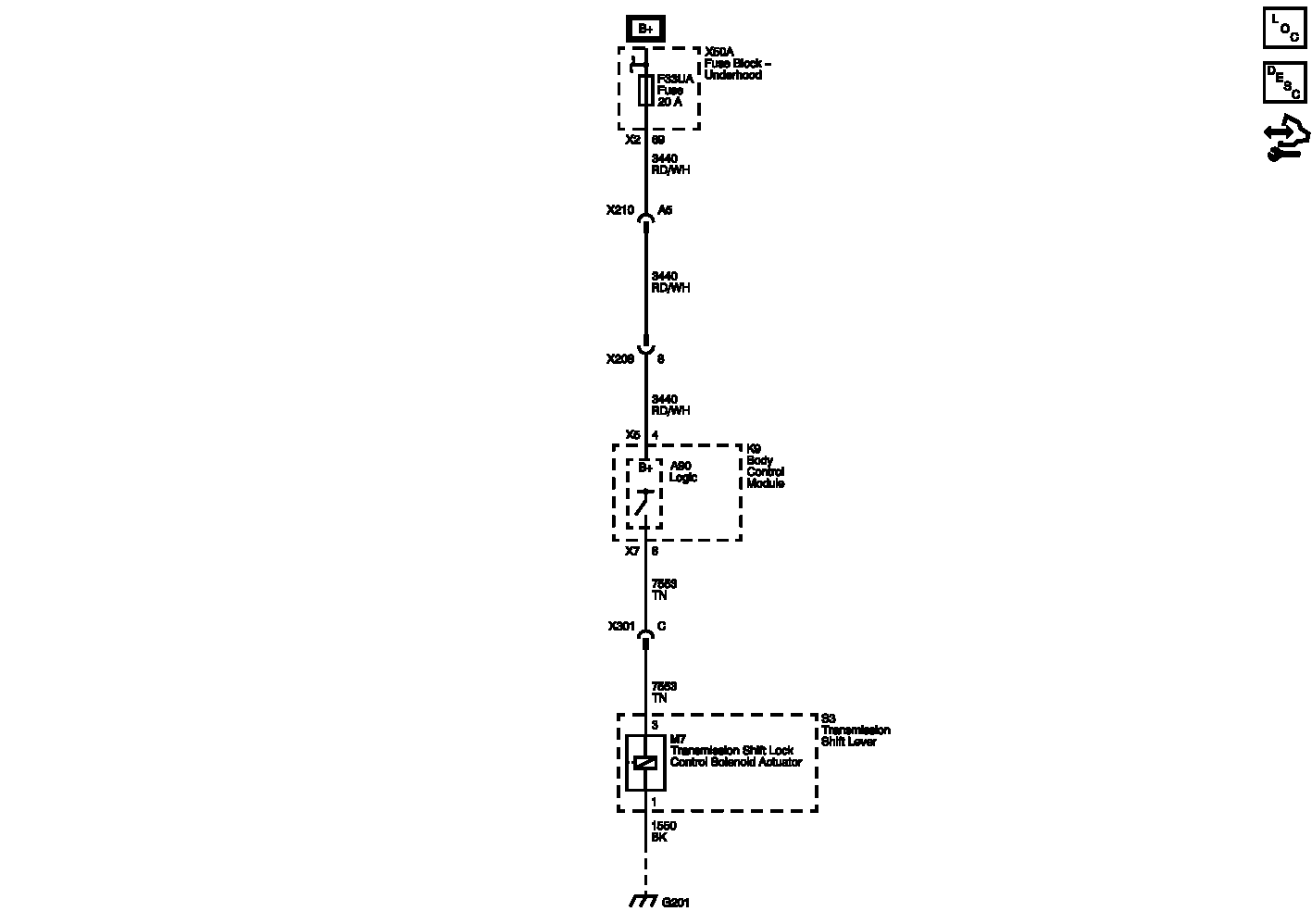

Fig 1: MYB or MYC Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
