Front Seat Belt Buckle Replacement

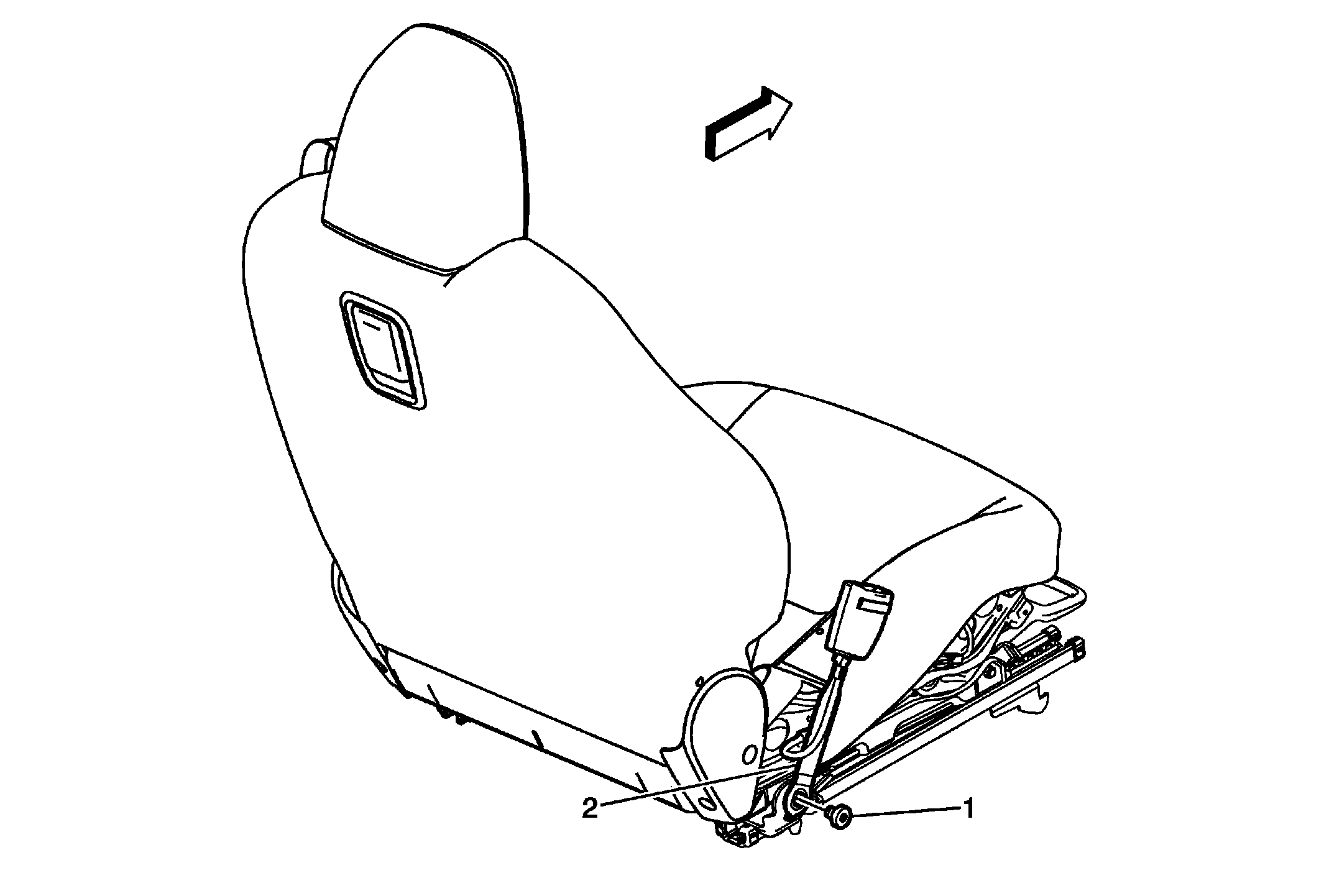

Fig 1: Driver Or Passenger Seat Belt Buckle
GM2209451Courtesy of GENERAL MOTORS COMPANY
Front Seat Belt Buckle Replacement

Callout Component Name
Preliminary Procedure
Remove front seat. Refer to Driver or Passenger Seat Replacement .
1 Front Seat Belt Buckle Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
40 N.m (30 lb ft)
2 Front Seat Belt Buckle Assembly
TIP:  Disconnect electrical connectors.
