Rear of Transmission Components (M10)

Rear of Transmission Components (M10)

Component Name Callout
B115 Vehicle Speed Sensor 1
B16 Backup Lamp Switch 2
Q34 Skip Shift Solenoid Actuator 3
M47 Reverse Inhibit Solenoid Actuator 4
B173 Manual Transmission Fluid Temperature Sensor 5

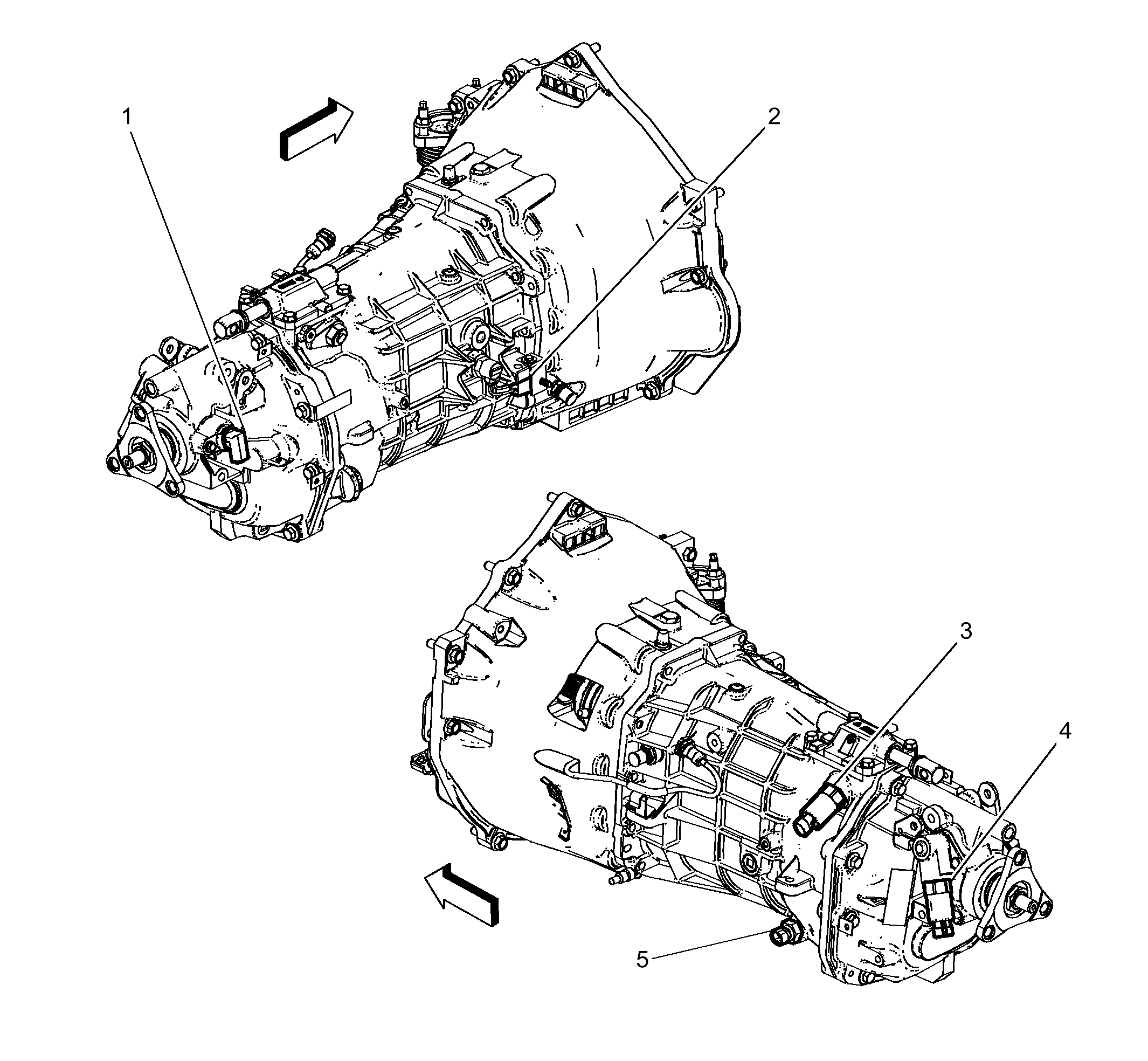

Fig 1: Rear of the Transmission (M10)
GM2292427Courtesy of GENERAL MOTORS COMPANY
