Section 164 (Cellular System, Entertainment System, And Navigation System)
>>
Wiring Schematics
>>
OnStar Wiring Schematics
OnStar Wiring Schematics
WARNING:
This page is about a different car, the 2011 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

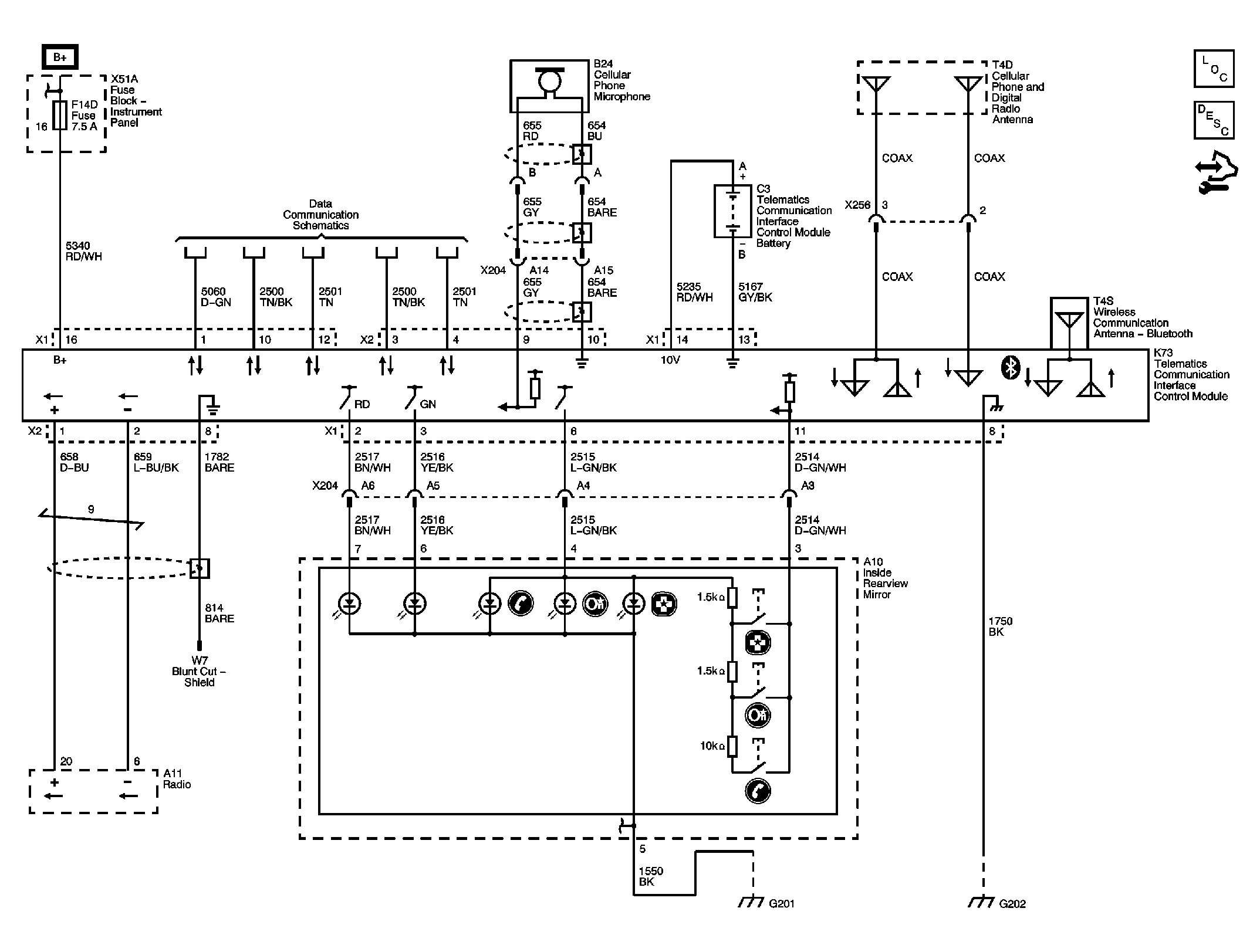

Fig 1: OnStar Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
