Knock Sensor Replacement - Bank 1
Knock Sensor Replacement - Bank 1

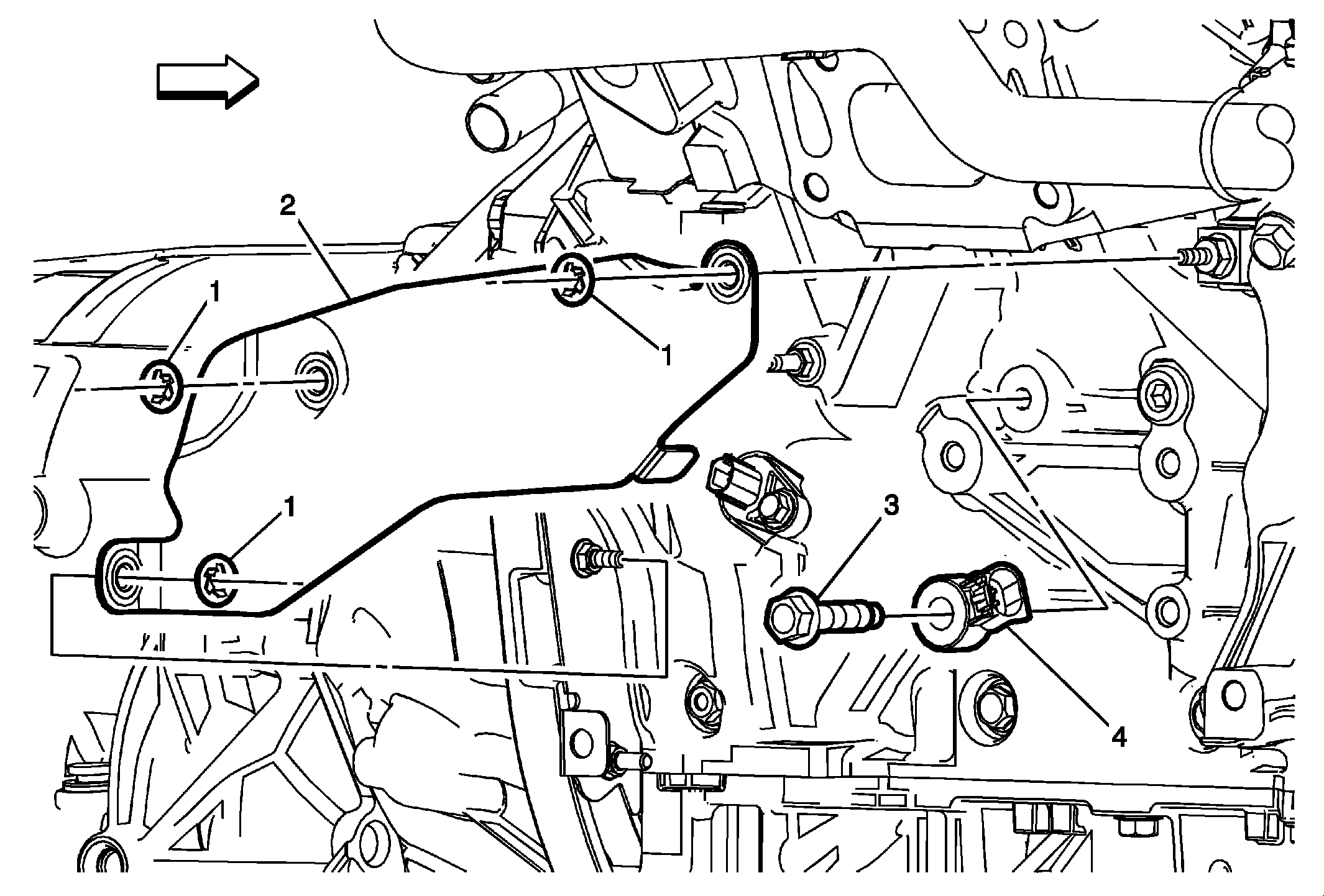

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Heat Shield Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Heat Shield |
| 3 | Knock Sensor Fastener Tighten 23 (17 lb ft) |
| 4 | Knock Sensor Procedure Disconnect the knock sensor electrical connector. |
