Installation Procedure

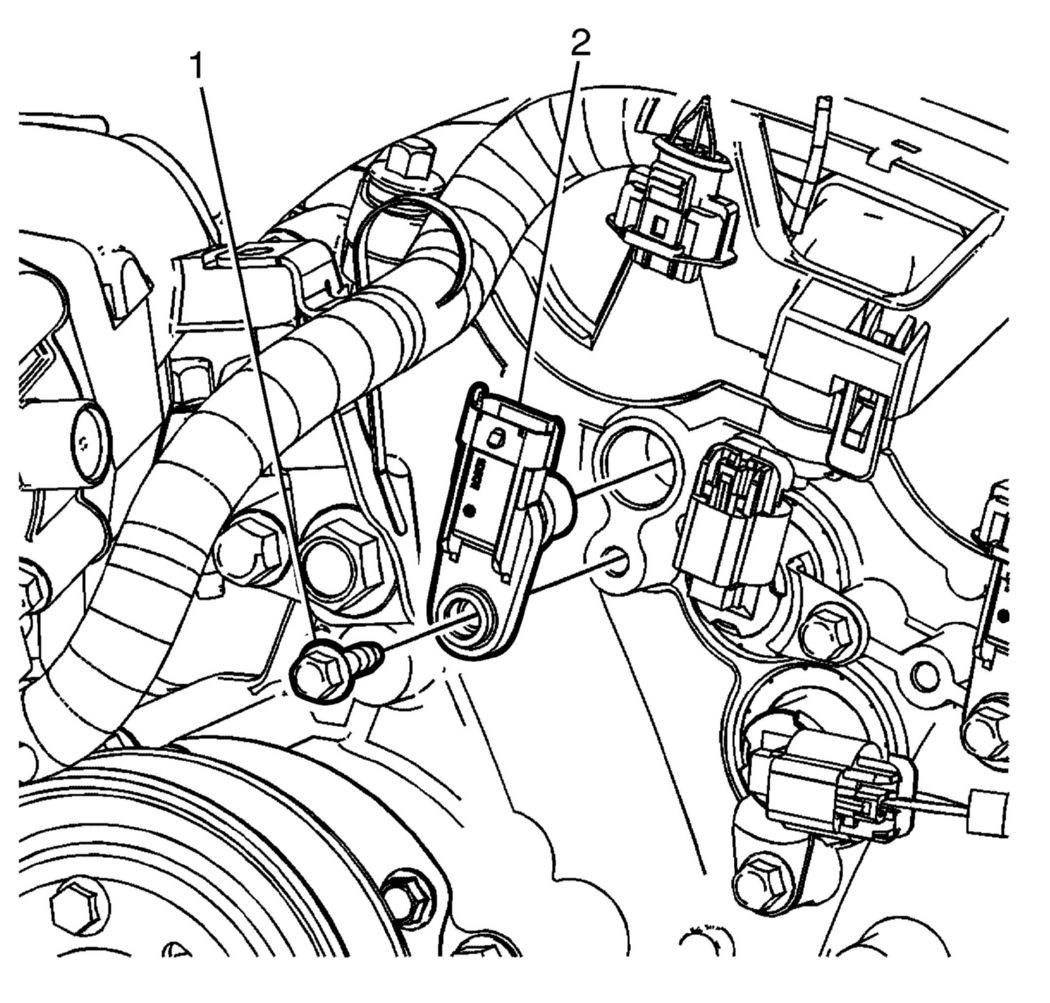

    Fig 1: Identifying CMP Sensor To Engine Front Cover Retaining Bolt
    GM1949777Courtesy of GENERAL MOTORS COMPANY
  1. Install the CMP sensor (2) to the engine.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CMP sensor to engine front cover retaining bolt (1) and tighten to 10 Y (89 lb in).

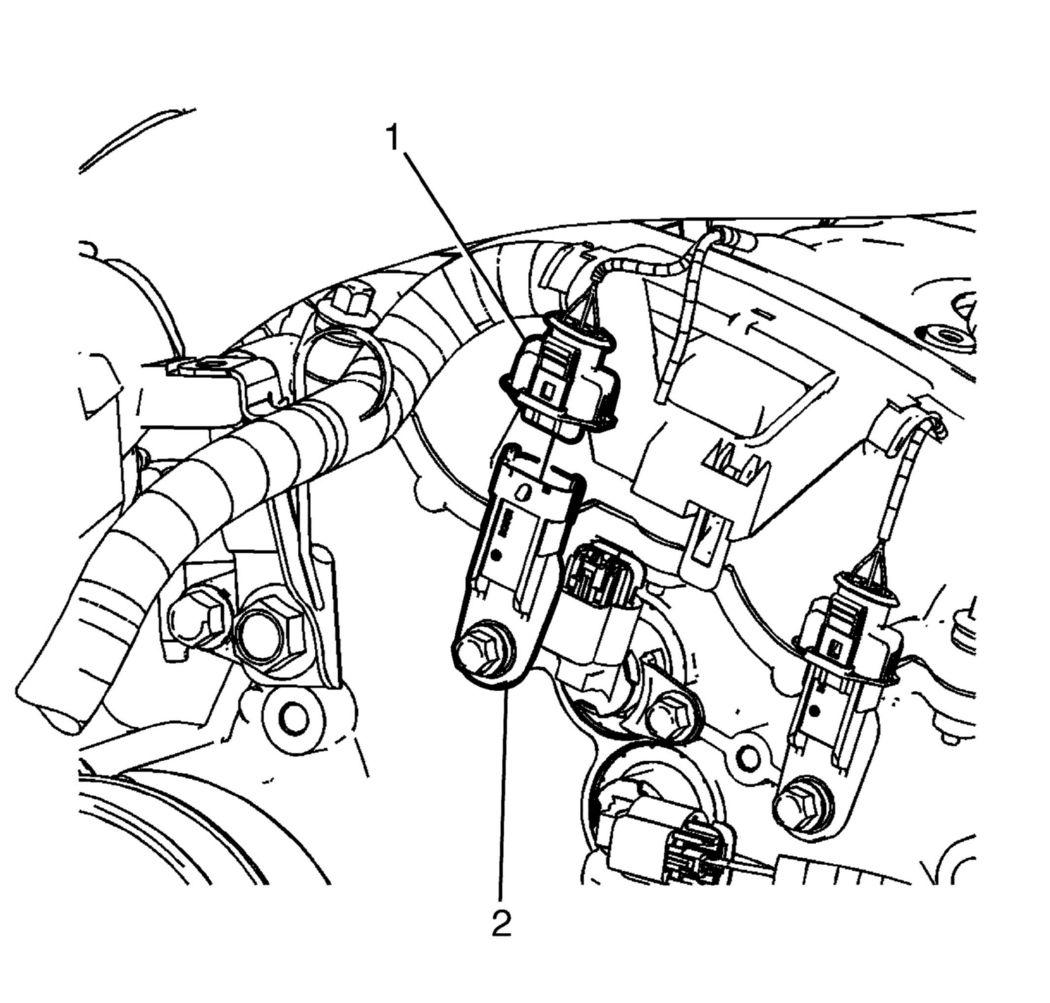

    3. Fig 2: Identifying CMP Sensor & Electrical Connector
    GM1949776Courtesy of GENERAL MOTORS COMPANY
  3. Install the CMP sensor electrical connector (1) to the CMP sensor (2).
  4. Install the water outlet housing.
  5. Install the intake manifold. Refer to Intake Manifold Replacement .
  6. Install the intake manifold sight shield.
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
