Installation Procedure

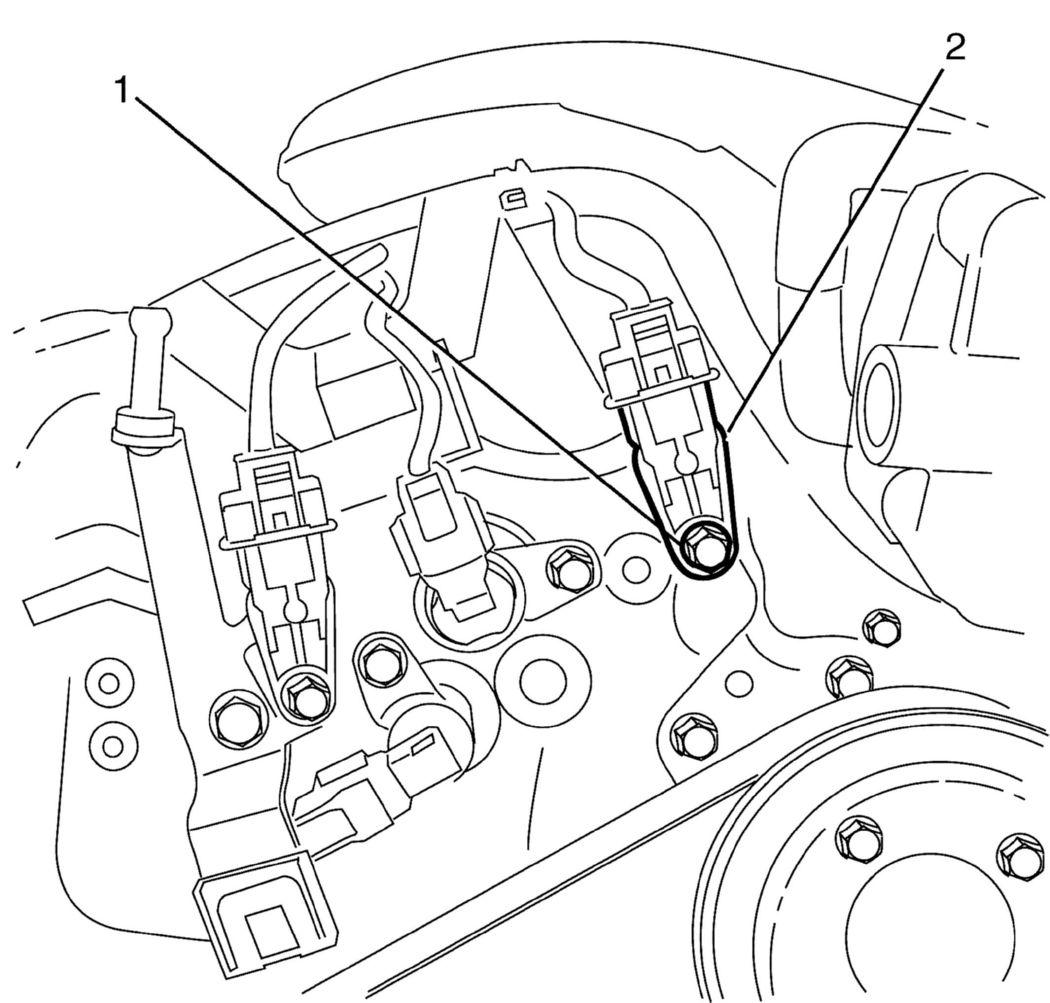

    Fig 1: Identifying CMP Sensor To Engine Front Cover Retaining Bolt
    GM1949769Courtesy of GENERAL MOTORS COMPANY
  1. Install the CMP sensor (2) to the engine front cover.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CMP sensor to engine front cover retaining bolt (1) and tighten to 10 Y (89 lb in).

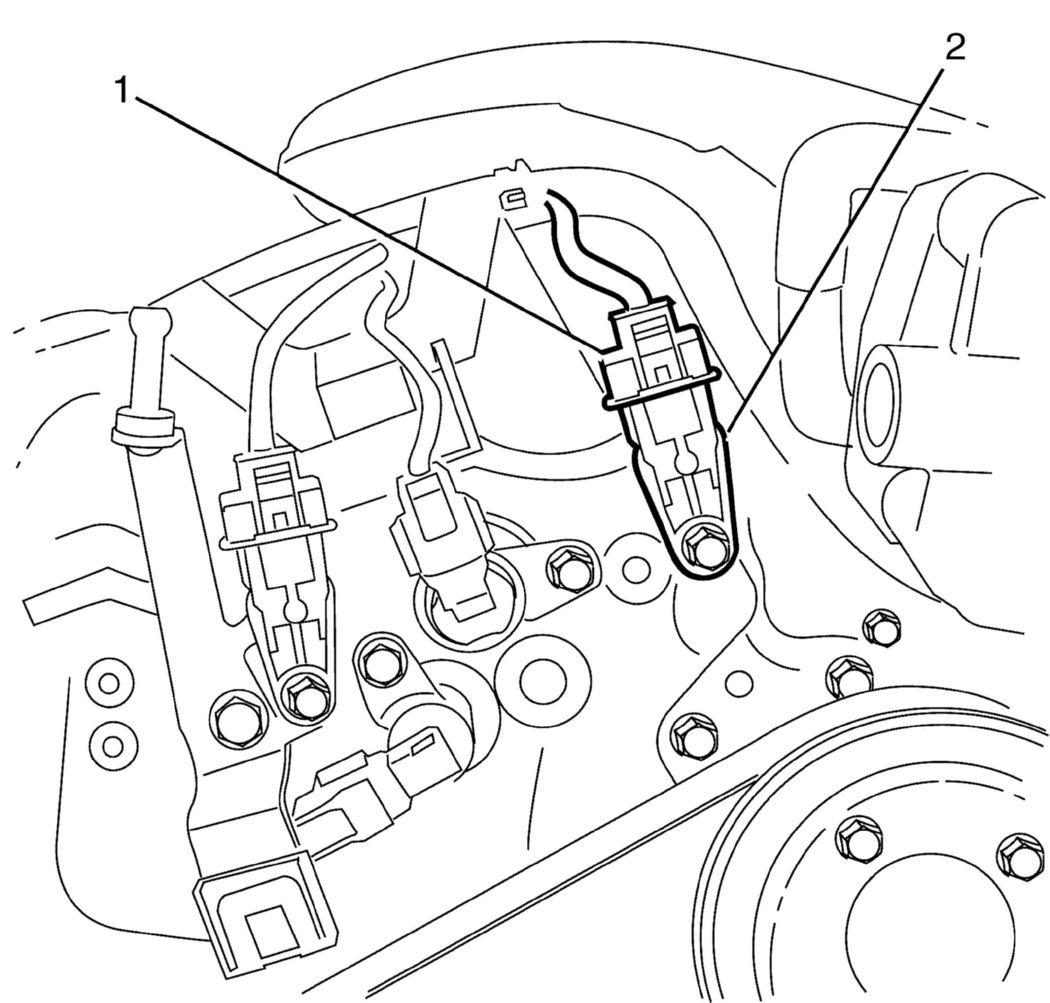

    3. Fig 2: Identifying CMP Sensor Electrical Connector
    GM1949767Courtesy of GENERAL MOTORS COMPANY
  3. Install the CMP sensor electrical connector (1) to the CMP sensor.
