Removal Procedure

WARNING:

Refer to Safety Glasses Warning .

  1. Ignition OFF.

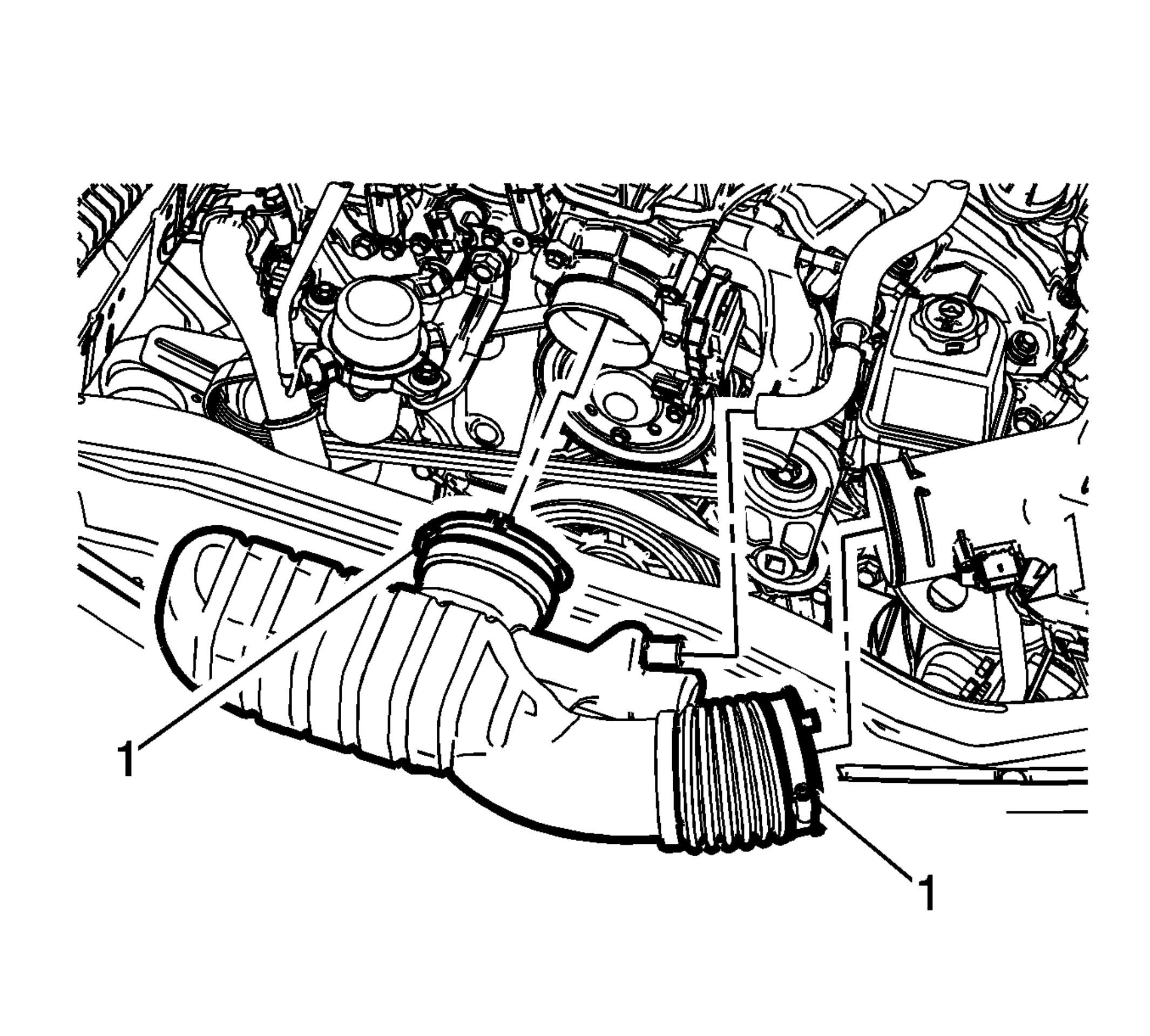

    2. Fig 1: Air Cleaner Outlet Duct & Retaining Clamps
    GM2665040Courtesy of GENERAL MOTORS COMPANY
  2. Detach the positive crankcase ventilation (PCV) hose from the air cleaner outlet duct .
  3. Remove the air cleaner outlet duct retaining clamps (1).
  4. Remove the air cleaner outlet duct from the vehicle.
