Starter Replacement (LSA,LS3,L99)

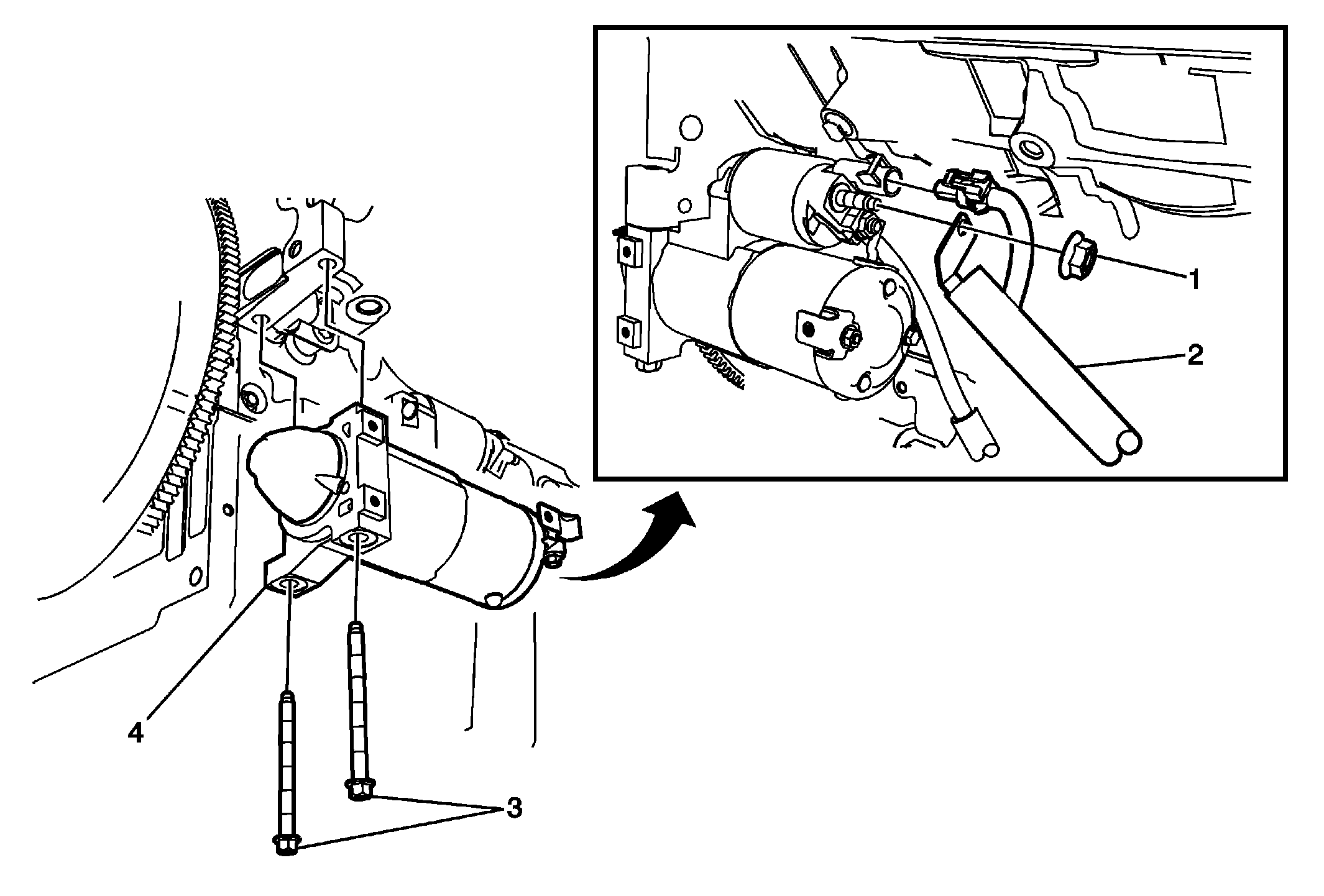

Fig 1: Starter, Battery Positive Cable, Nut And Bolts (LS3/L99)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the starter heat shield. Refer to Starter Shield Replacement (LSA,LS3,L99) .
1	Nut CAUTION: Refer to Fastener Caution . Tighten 13 N.m (115 lb in)
2	Battery Positive Cable
3	Bolt (Qty: 2) Tighten 58 N.m (43 lb ft)
4	Starter Procedure Disconnect the engine harness starter connector.
