Engine Ground Cable Replacement (L99,LS3)
Engine Ground Cable Replacement (L99,LS3)

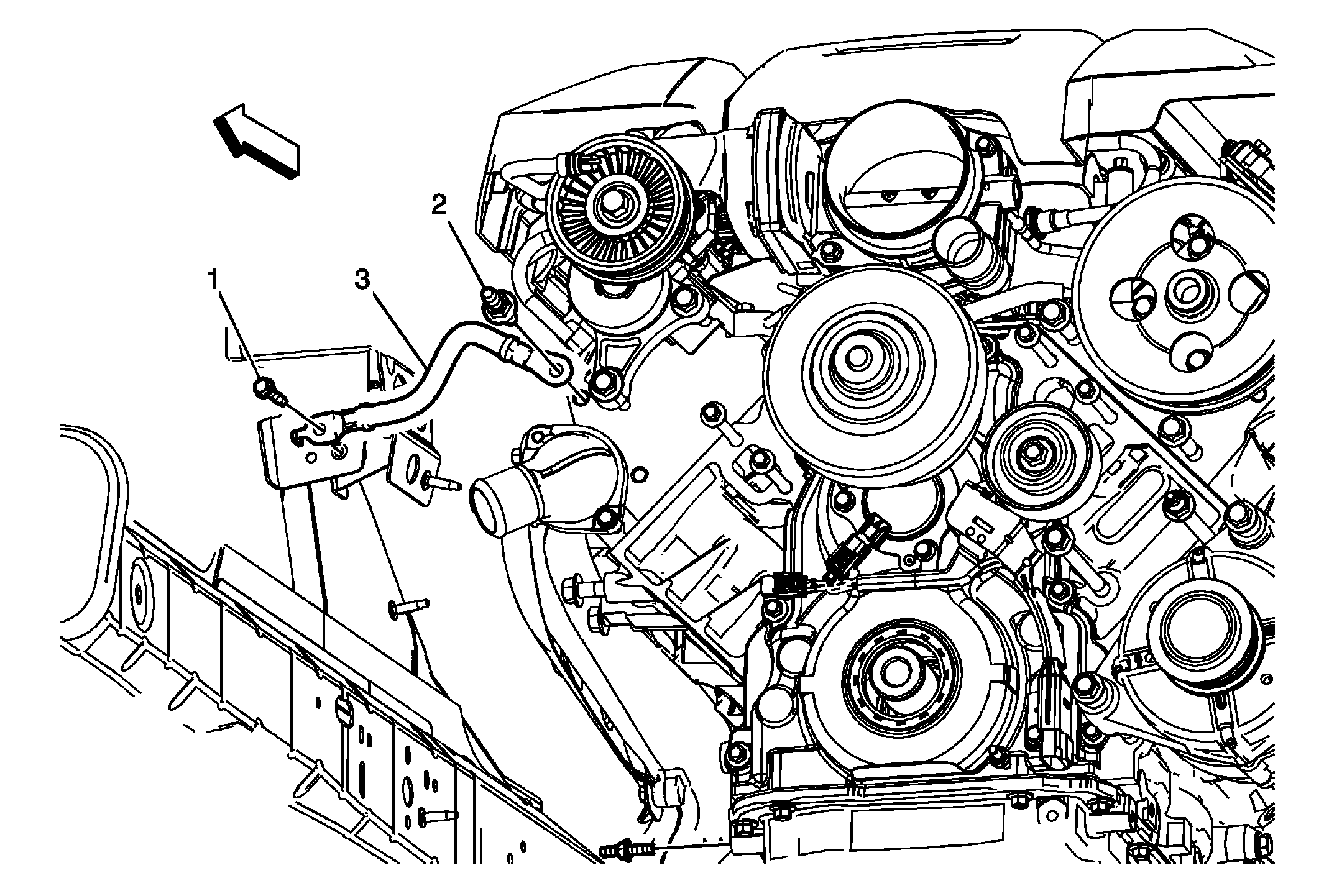

| Callout | Component Name |
|---|---|
| 1 | Engine Ground Cable Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Engine Ground Cable Stud Tighten 48 N.m (35 lb ft) |
| 3 | Engine Ground Cable |
