T6 Power Inverter Module X8

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

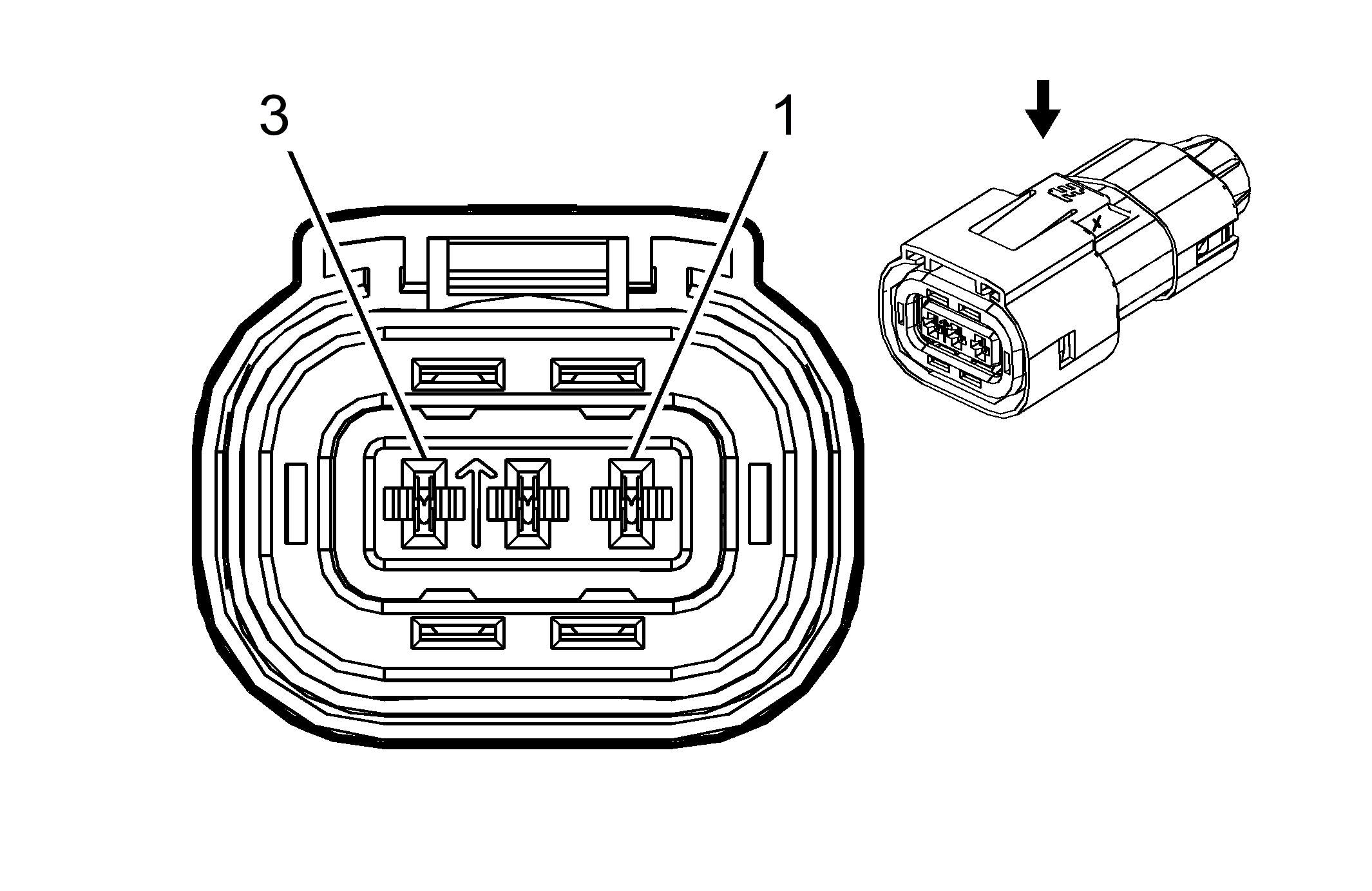

GM2553163
Connector Part Information
  • Harness Type: Auxiliary Transmission Fluid Pump
  • OEM Connector: Not Available
  • Service Connector: Service by Component - See Part Catalog
  • Description: 3-Way F (OG)
 Terminal Part Information
  • Terminated Lead: Service by Component - See Part Catalog
  • Release Tool: Service by Component - See Part Catalog
  • Diagnostic Test Probe: J-35616-2A
  • Terminal/Tray: Service by Component - See Part Catalog
  • Core/Insulation Crimp: Service by Component - See Part Catalog
T6 Power Inverter Module X8

Pin Size Color Circuit Function Option
1 - OG 3770 Transmission Fluid Pump 300V W Phase -
2 - OG 3771 Transmission Fluid Pump 300V V Phase -
3 - OG 3772 Transmission Fluid Pump 300V U Phase -
