T6 Power Inverter Module X3

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

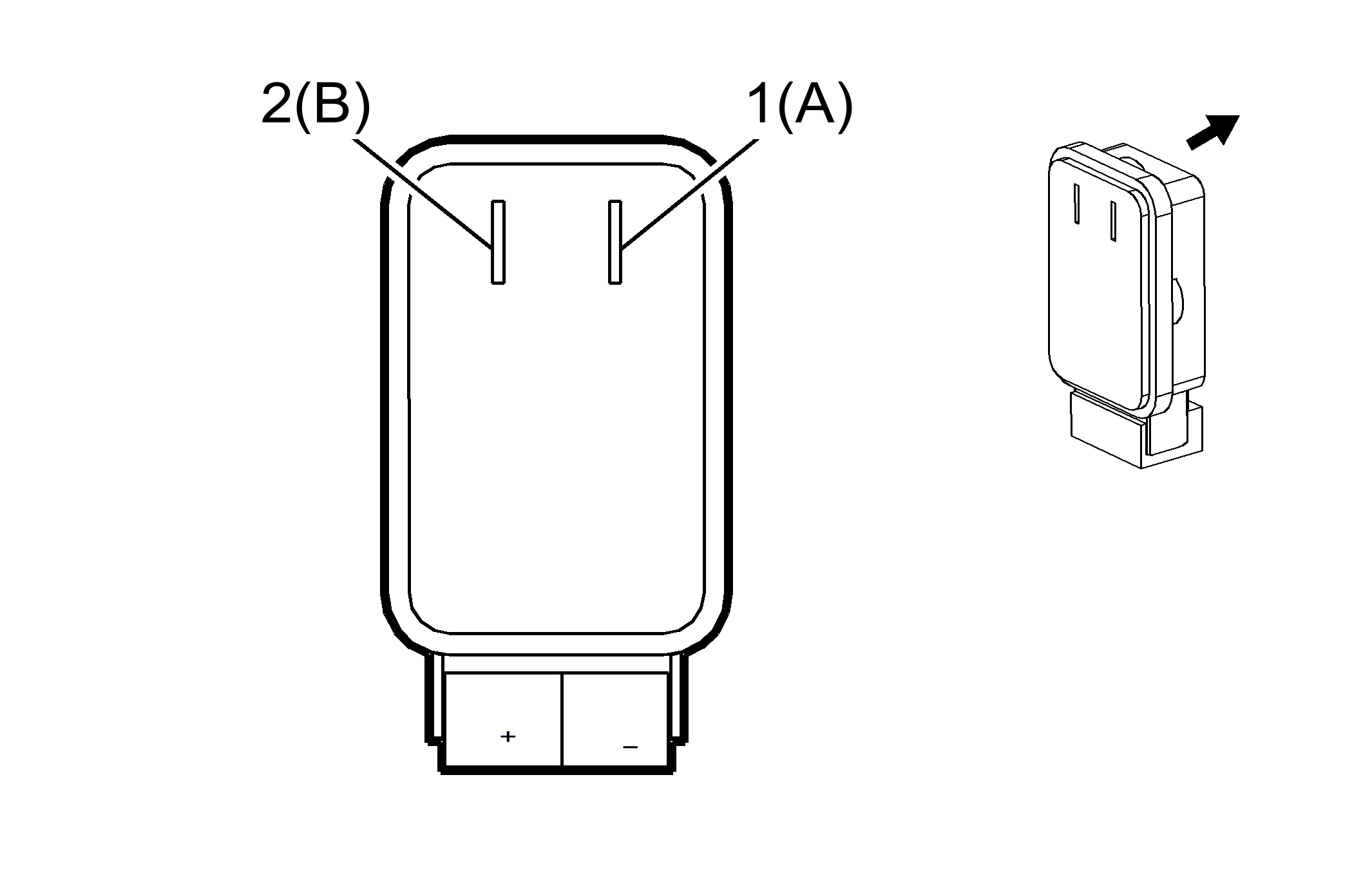

GM2475599
Connector Part Information
  • Harness Type: High Voltage
  • OEM Connector: 13505765
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way (Metal)
 Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Service by Harness - See Part Catalog
  • Diagnostic Test Probe: Service by Harness - See Part Catalog
  • Terminal/Tray: Service by Harness - See Part Catalog
  • Core/Insulation Crimp: Service by Harness - See Part Catalog
T6 Power Inverter Module X3

Pin Size Color Circuit Function Option
1 (A) 35 OG 5083 High Voltage Battery (-) -
2 (B) 35 OG 5084 High Voltage Battery (+) -
