Instrument Panel Side Trim Panel Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

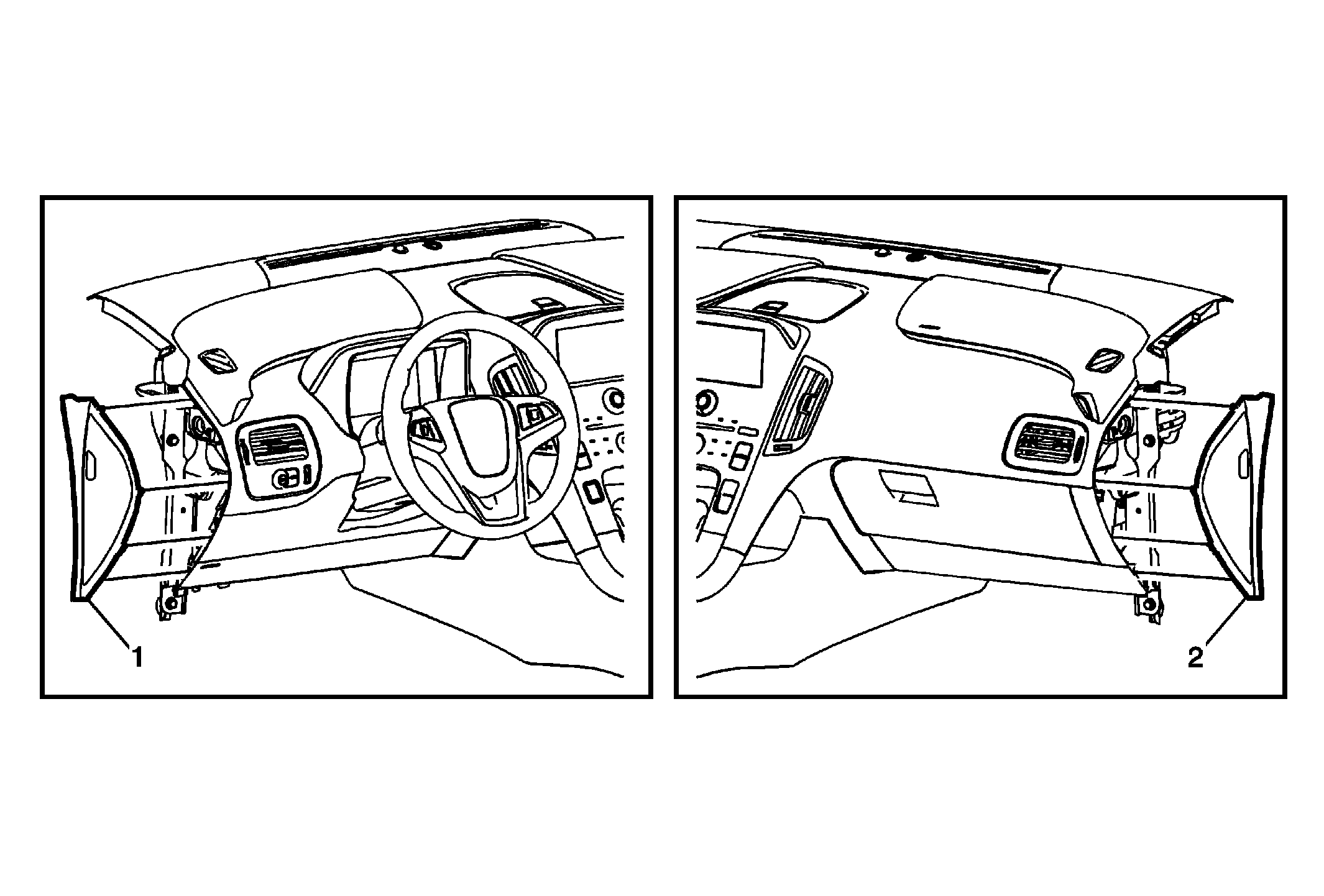

Fig 1: Instrument Panel Side Trim Panel
GM2384857Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Side Trim Panel Replacement

Callout Component Name
1 Instrument Panel Side Trim Panel - Left
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the side trim panel from the instrument panel assembly.
2 Instrument Panel Side Trim Panel - Right
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the side trim panel from the instrument panel assembly.
