Instrument Panel Lower Compartment Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

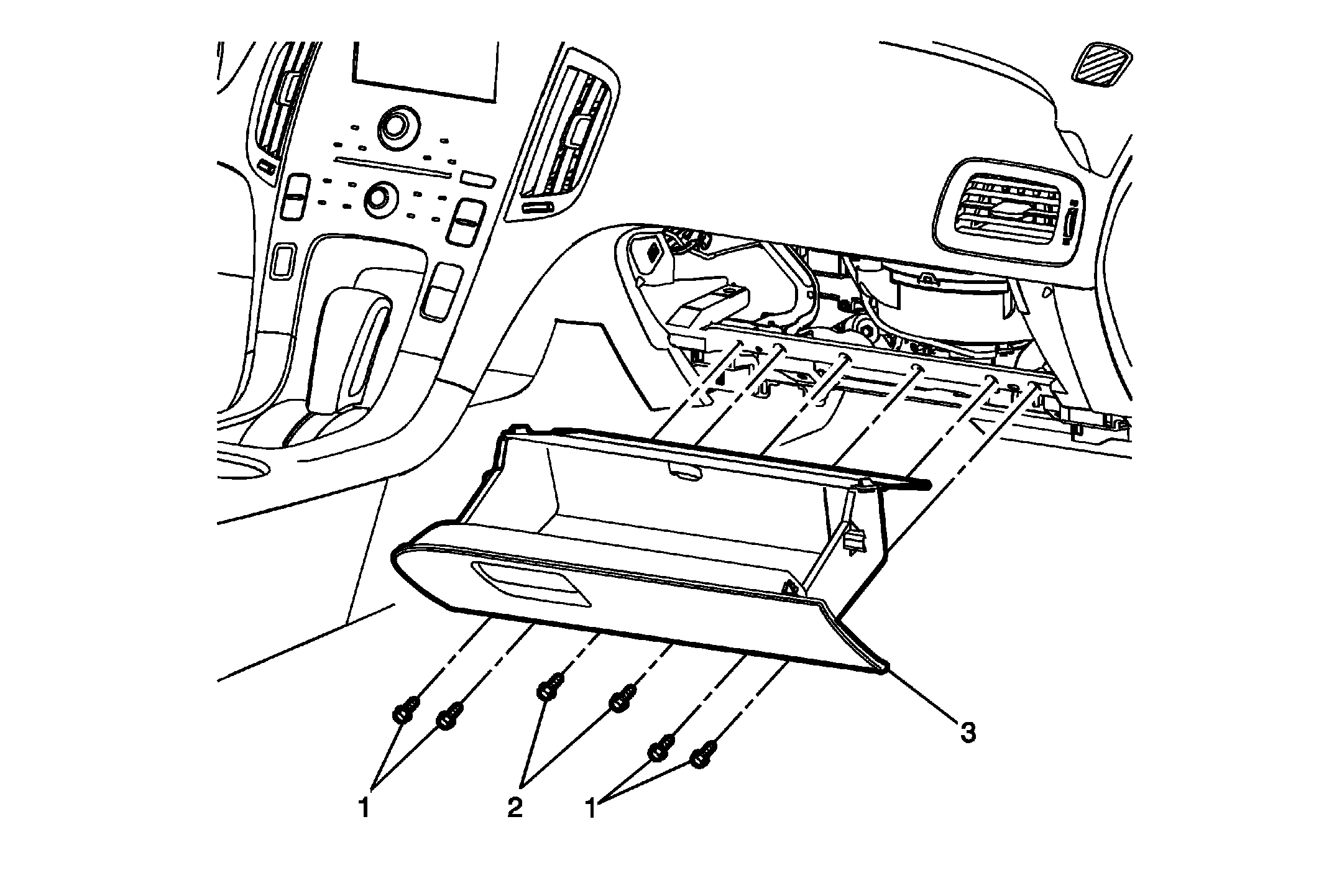

Fig 1: Instrument Panel Lower Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right lower instrument panel inflatable restraint module. Refer to Inflatable Restraint Instrument Panel Lower Module Replacement - Passenger Side .
1	Instrument Panel Lower Compartment Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Compartment Tether Fasteners (Qty: 2)
3	Instrument Panel Lower Compartment Assembly Procedures Disconnect the instrument panel compartment dampener. When replacing the compartment assembly, transfer all necessary components.
