Engine Coolant Temperature Sensor Replacement (Water Outlet)

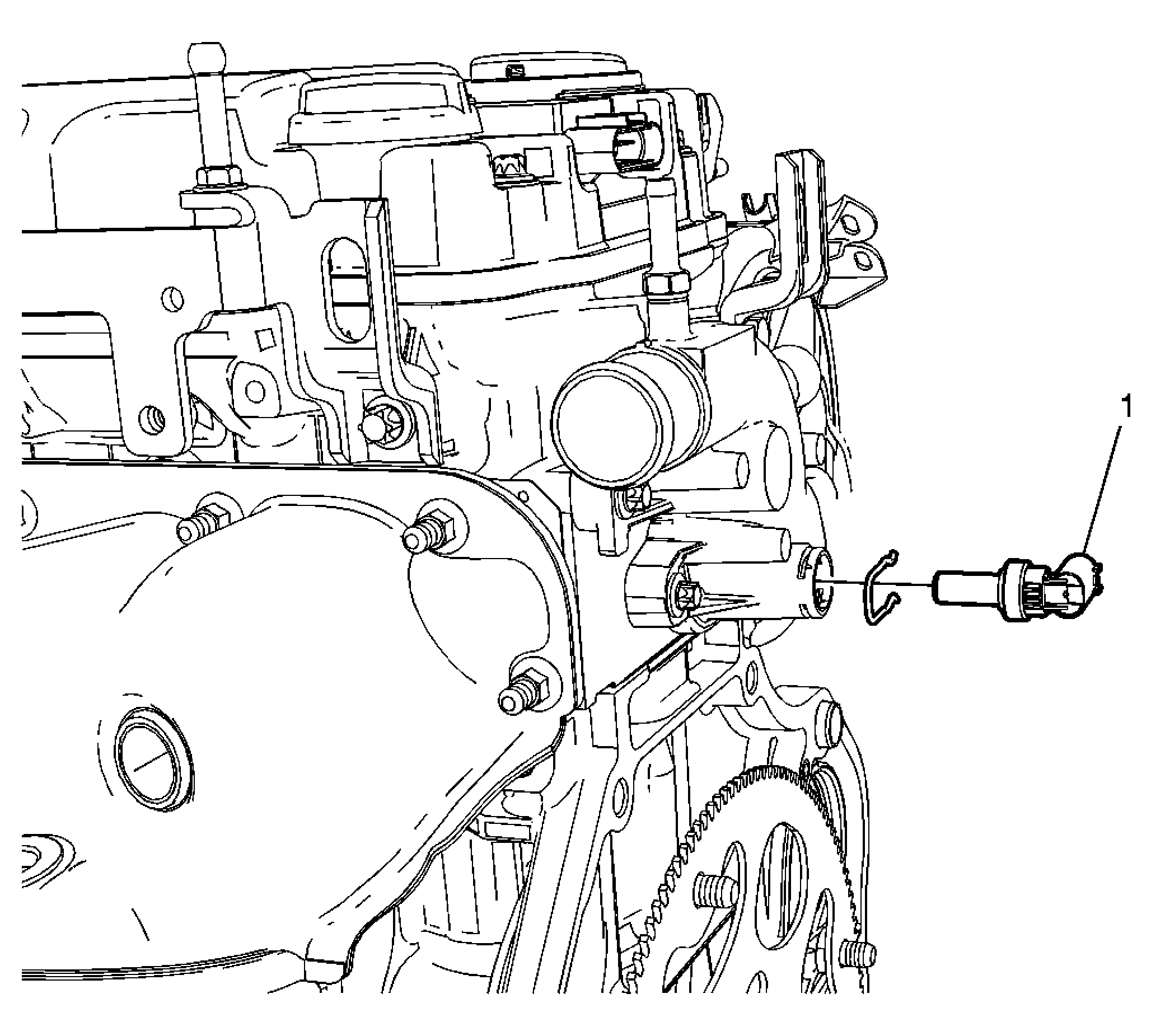

Fig 1: Engine Coolant Temperature Sensor (Water Outlet)
GM2378043Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Partially drain the cooling system. Refer to Cooling System Draining and Filling .
1 Engine Coolant Temperature Sensor

Procedure

  1. Remove the retaining clip.
  2. Disconnect the electrical connector.
