Antilock Brake System Wiring Schematics

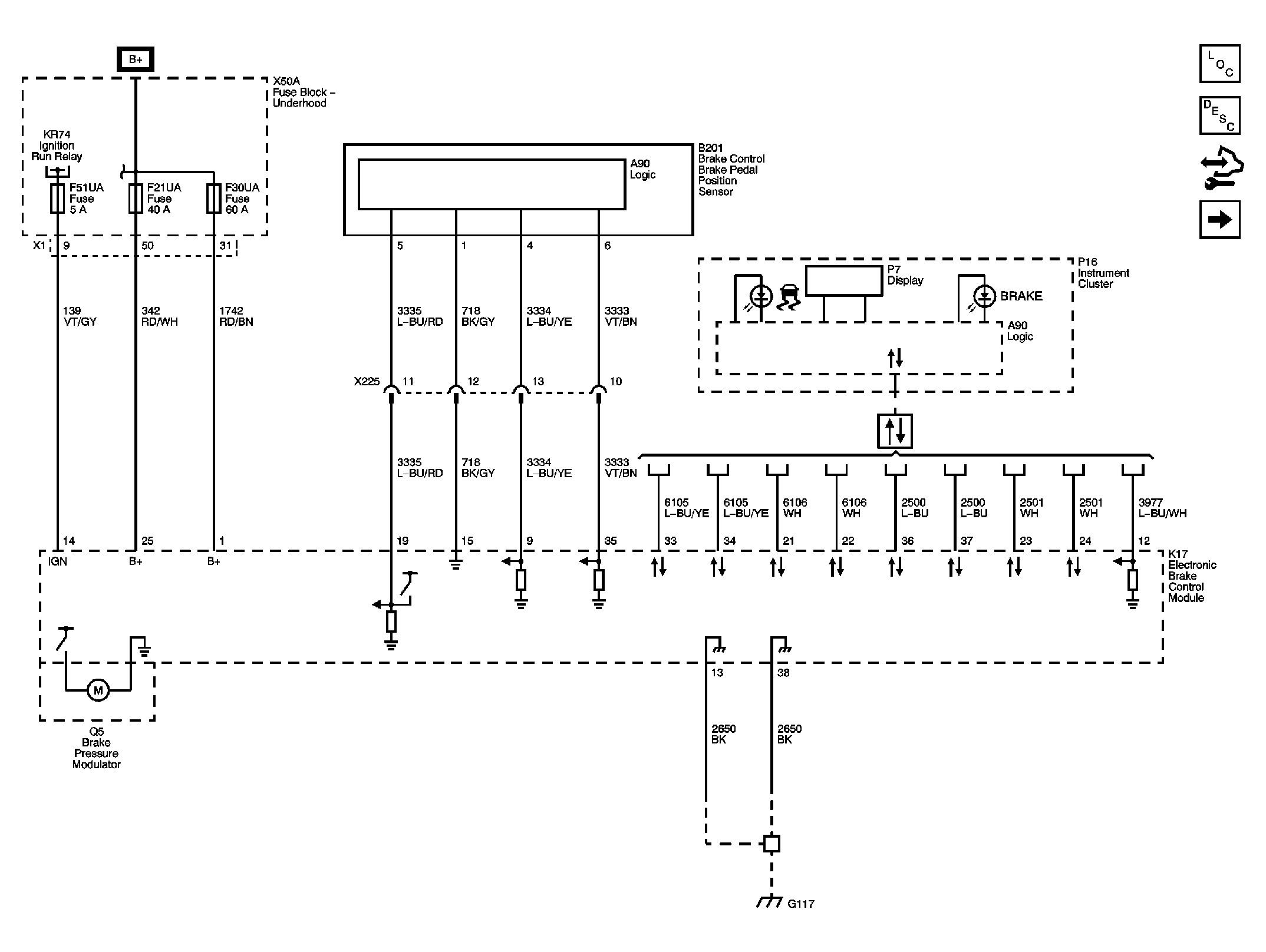

Fig 1: Power, Ground, Serial Data And Brake Pedal Position Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

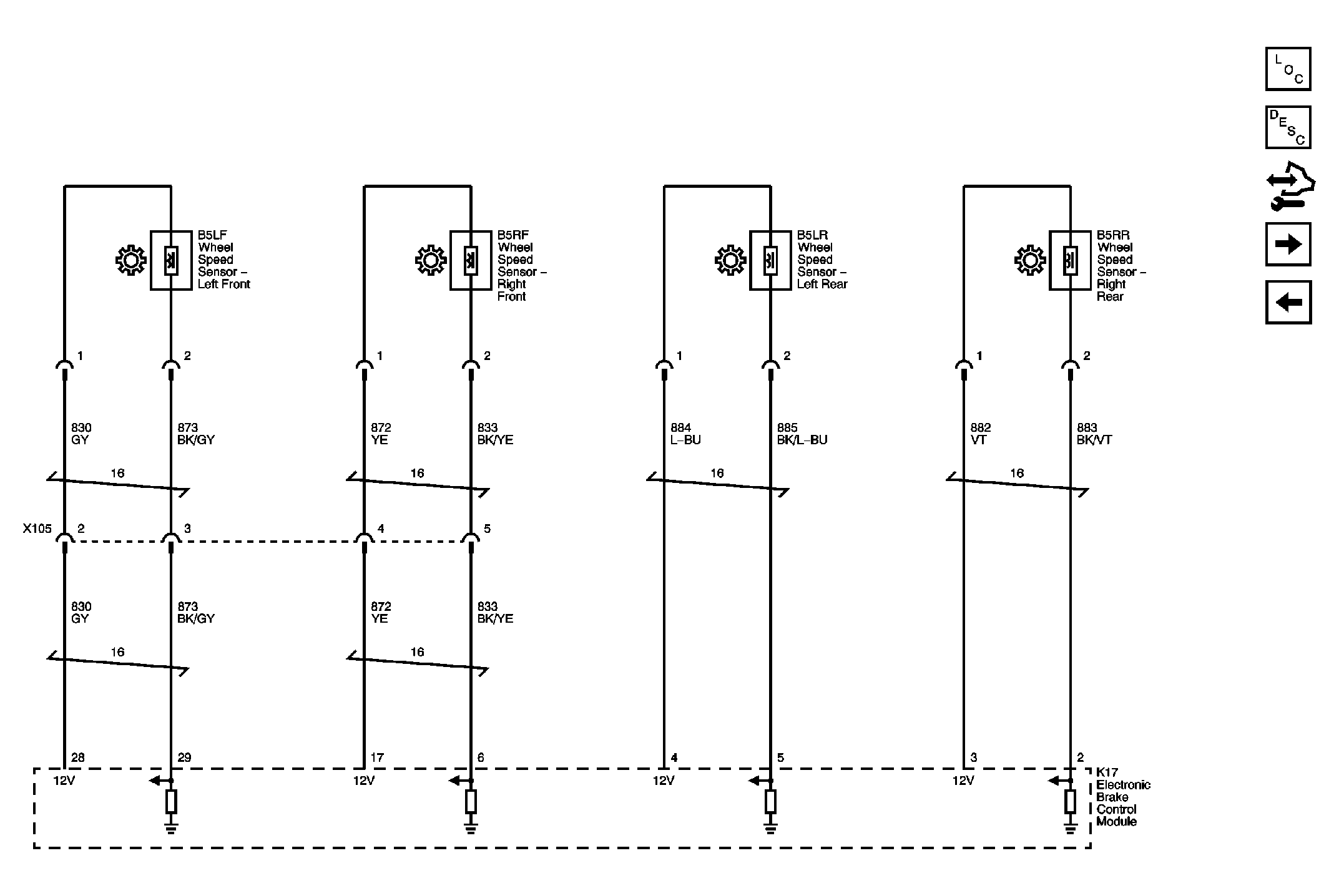

Fig 2: Wheel Speed Signals Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

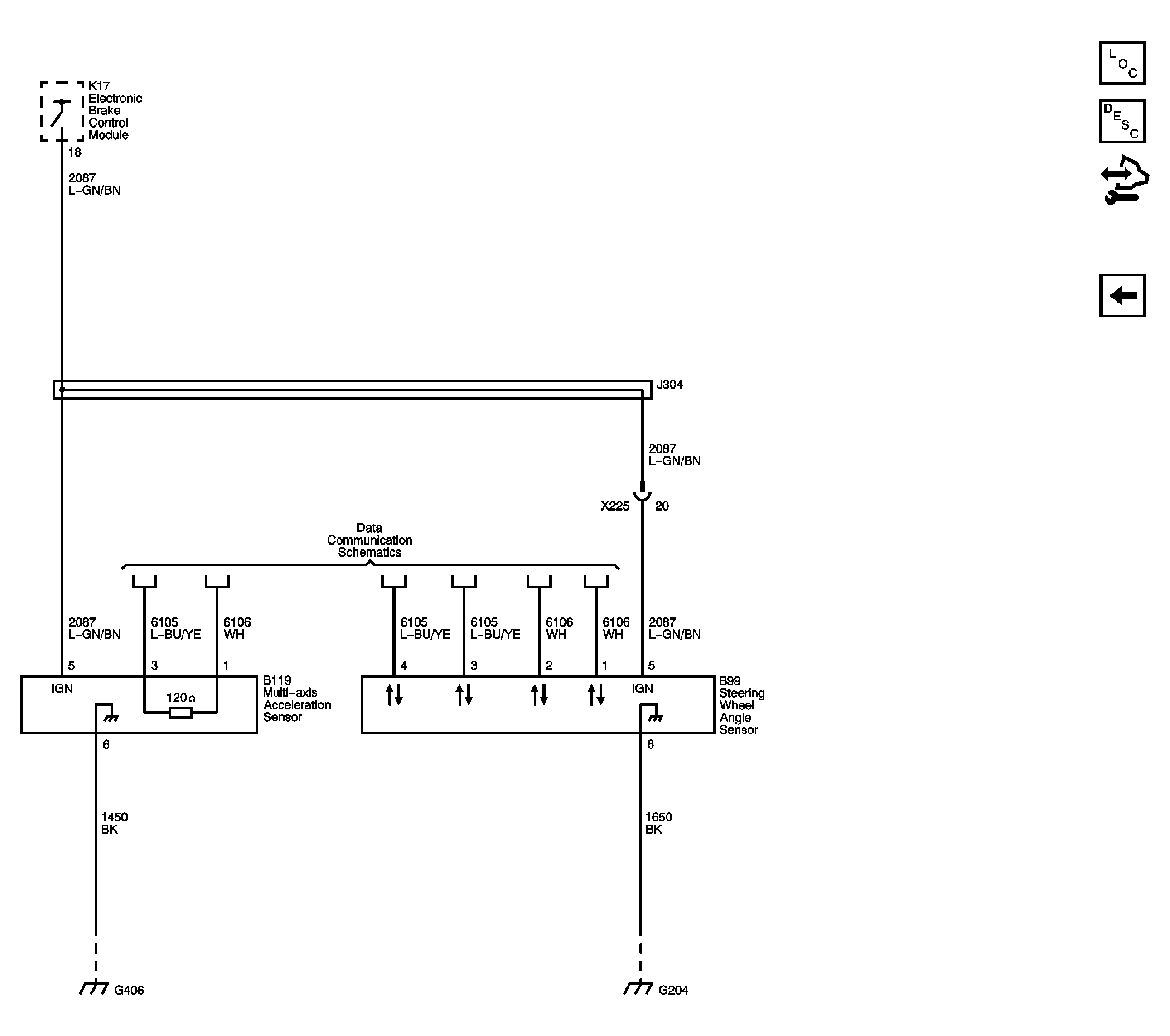

Fig 3: Vehicle Stability Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
