Mirror System
>>
Wiring Schematics
>>
Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics

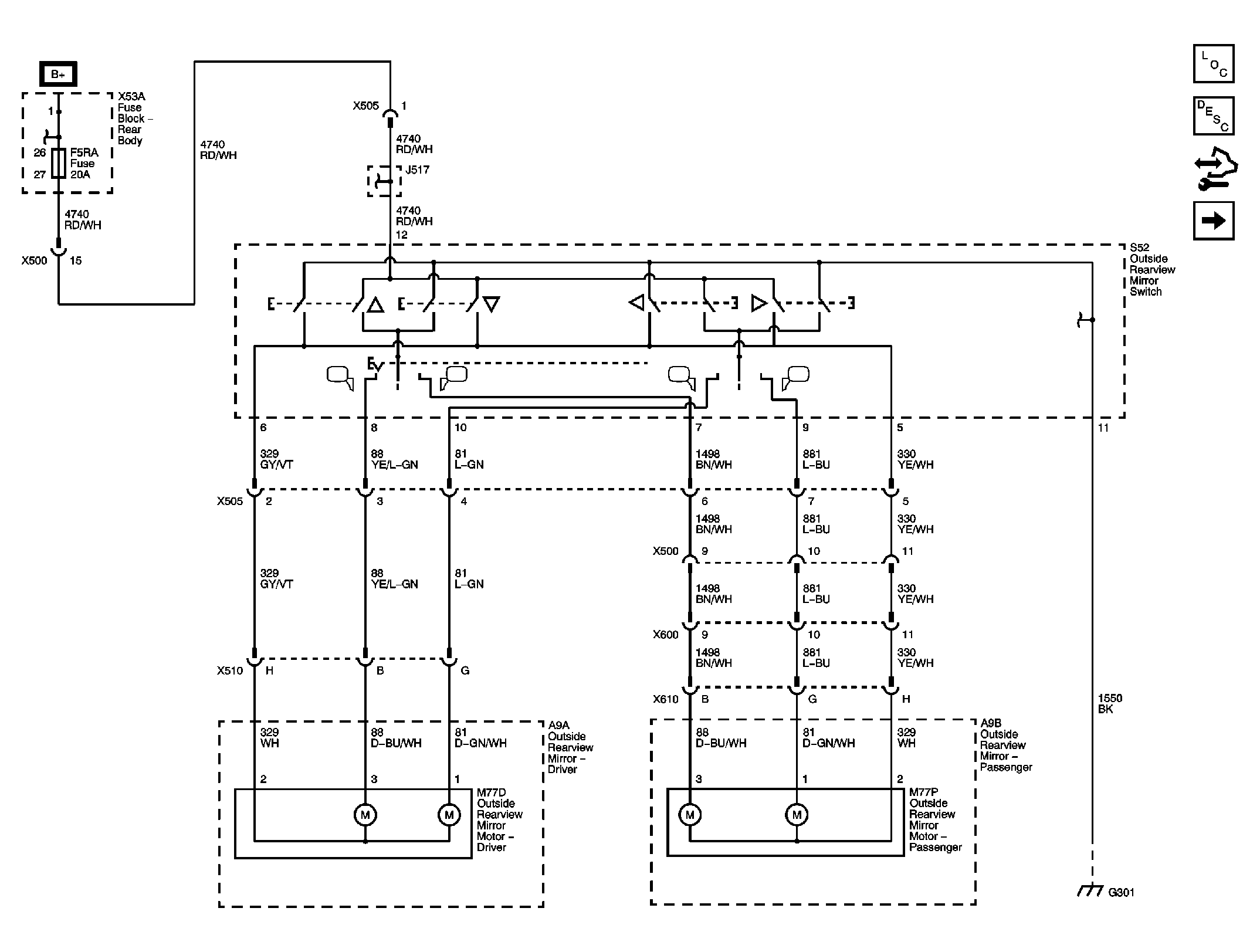

Fig 1: Directional Controls And Motors Wiring Schematic
Courtesy of GENERAL MOTORS CORP.

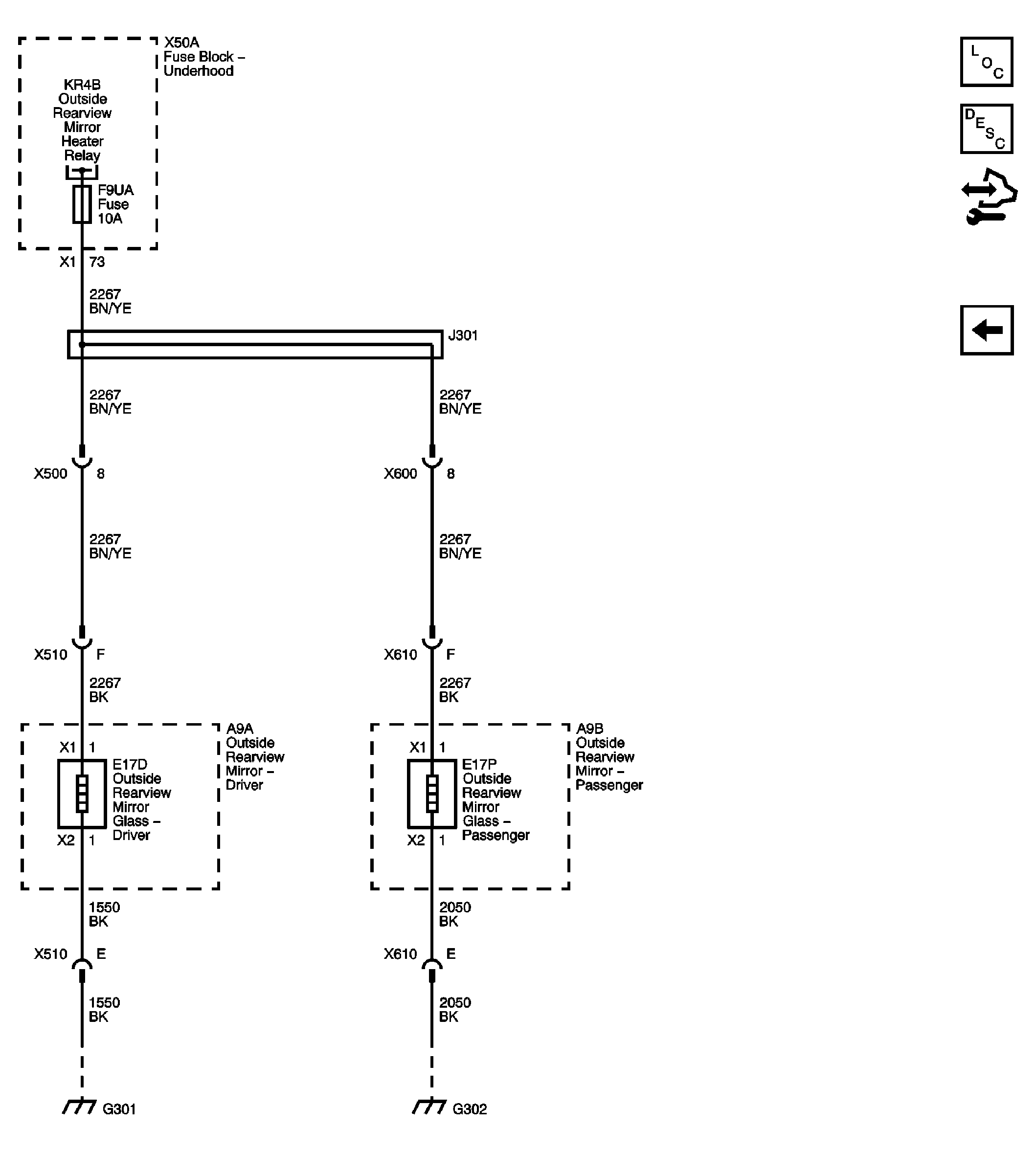

Fig 2: Mirror Heaters Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
