Moveable Window Wiring Schematics

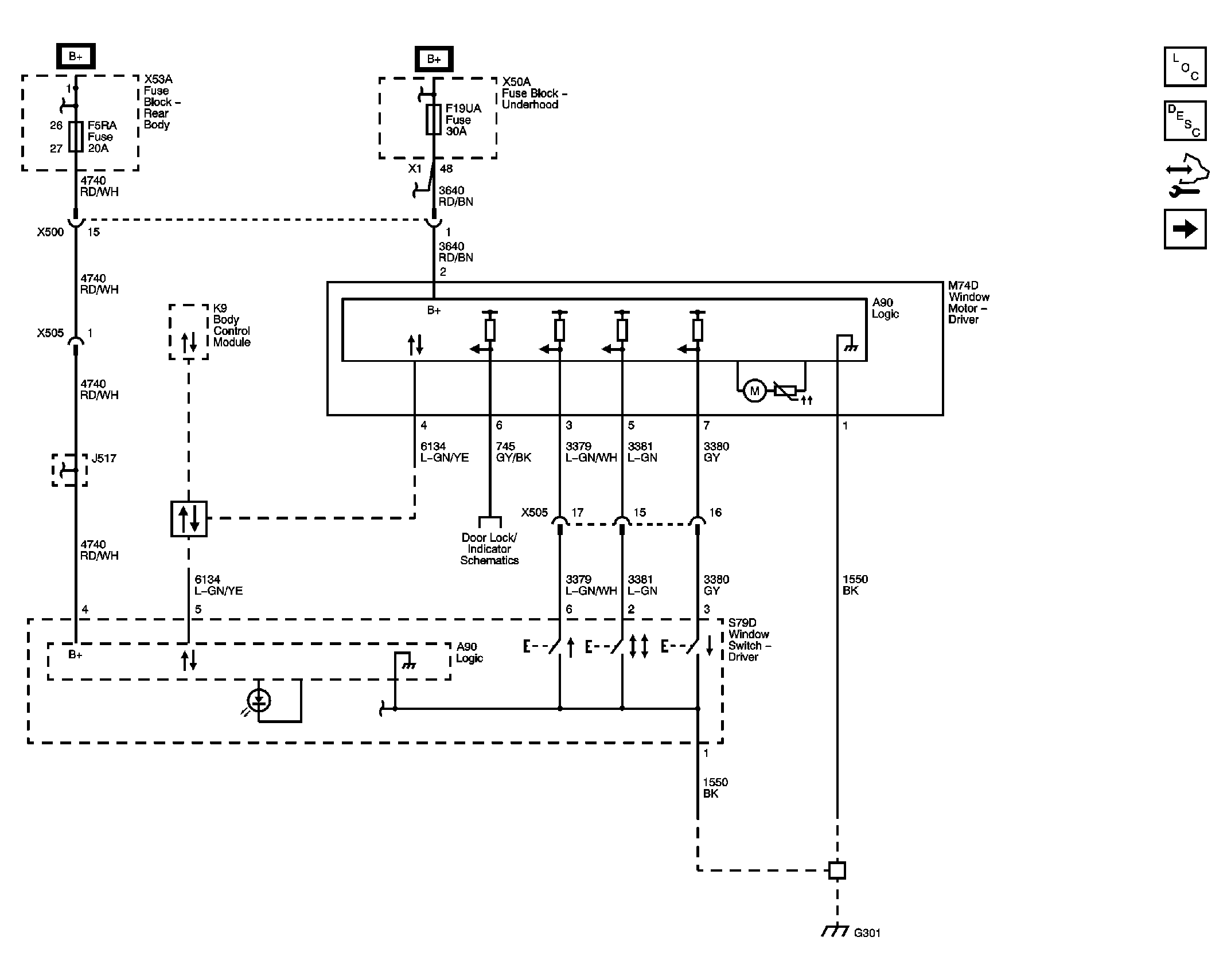

Fig 1: Driver Window Wiring Schematic
GM2489732Courtesy of GENERAL MOTORS CORP.

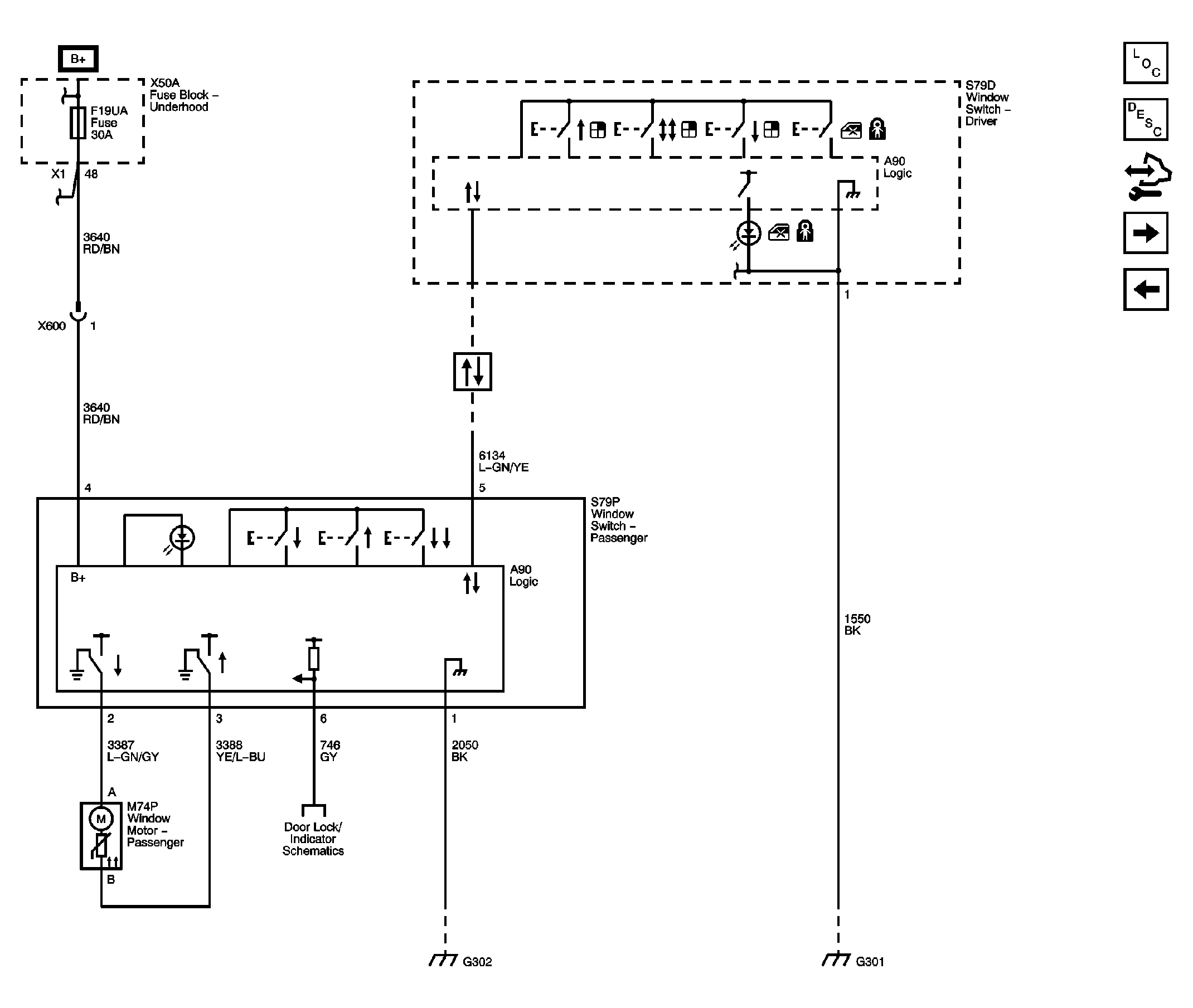

Fig 2: Passenger Window Wiring Schematic
GM2489733Courtesy of GENERAL MOTORS CORP.

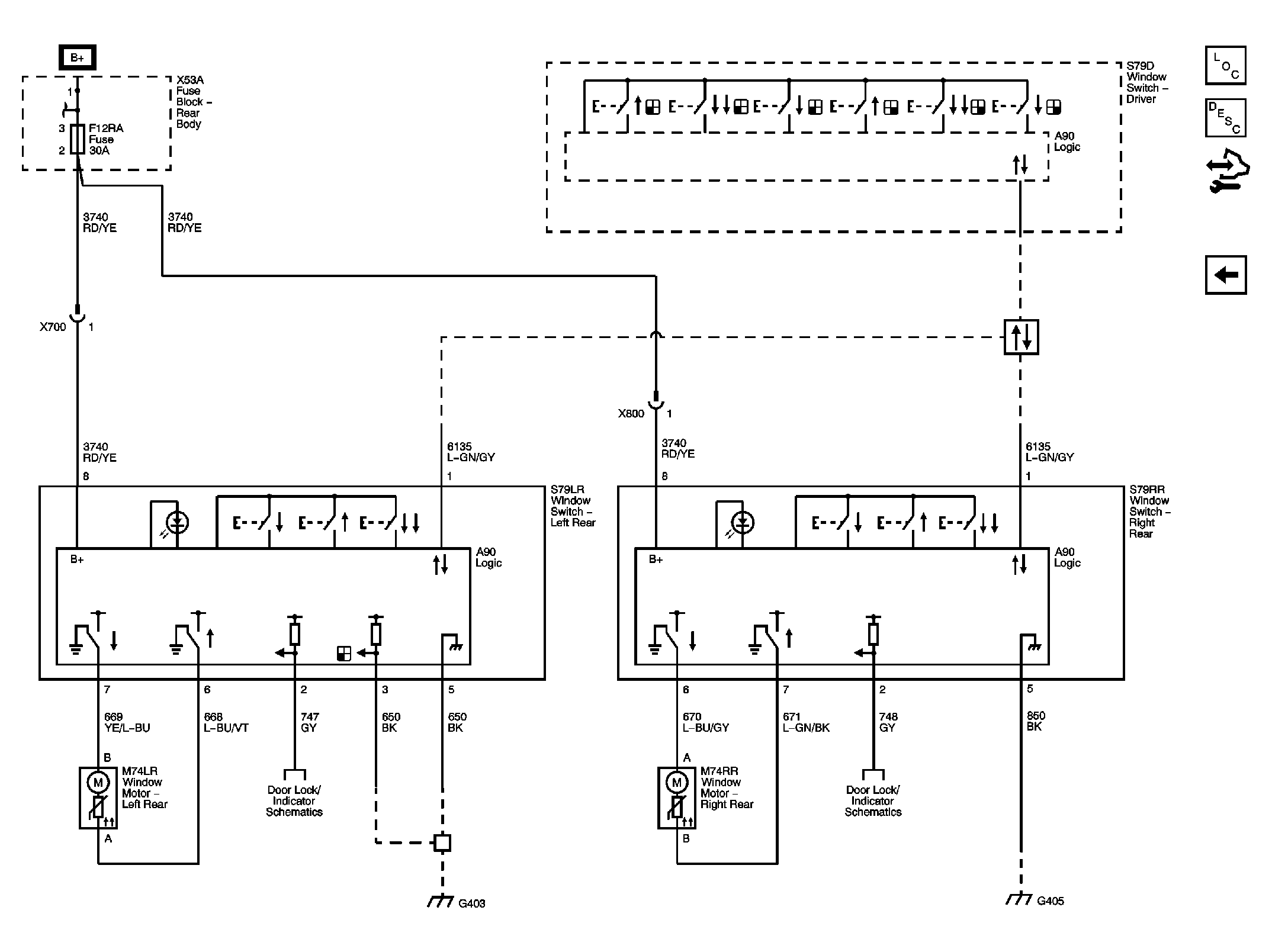

Fig 3: Rear Window Wiring Schematic
GM2489734Courtesy of GENERAL MOTORS CORP.
