Steering Wheel Secondary/Configurable Control Wiring Schematics

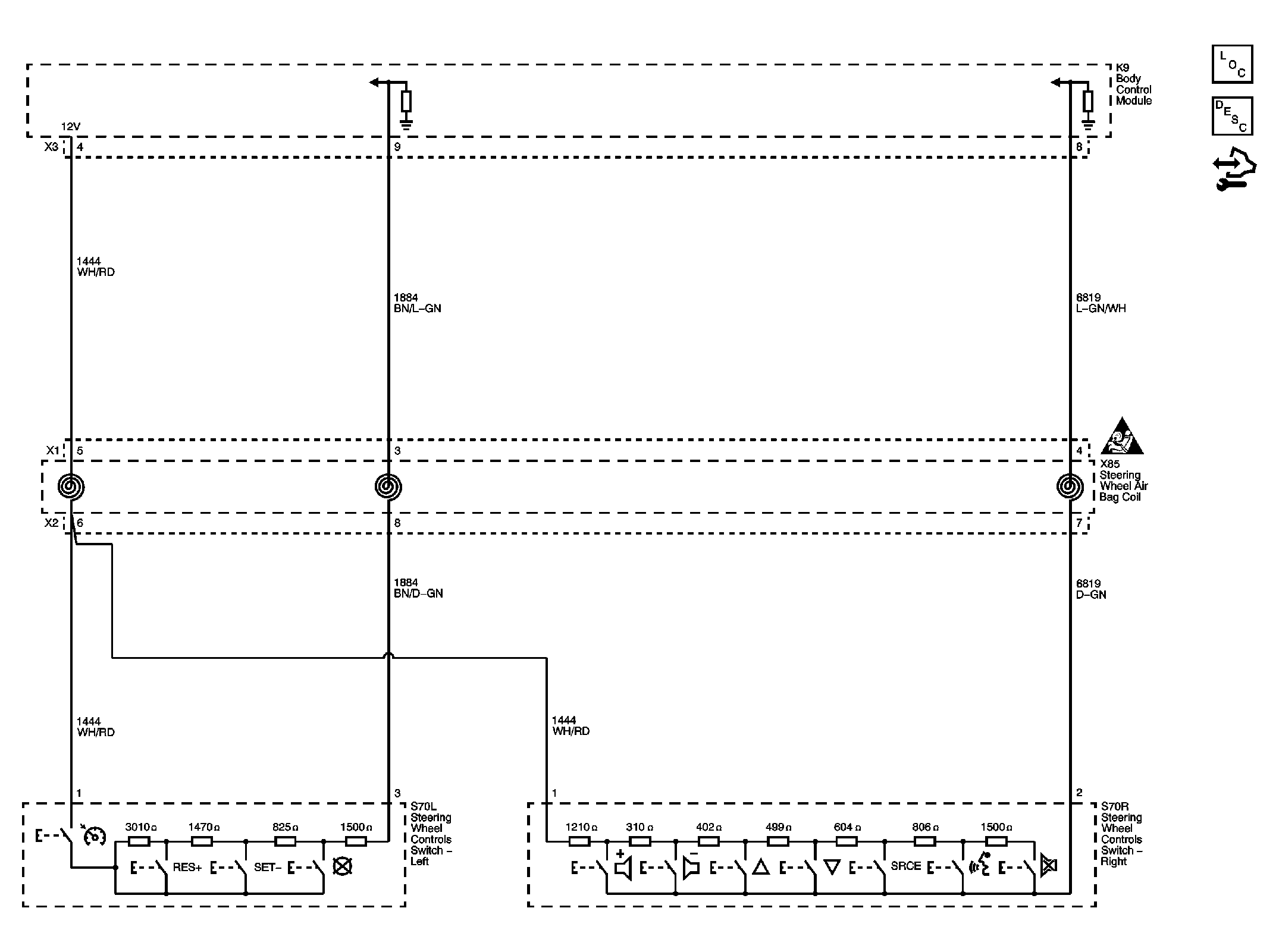

Fig 1: Steering Wheel Controls Wiring Schematic

GM2488632

Courtesy of GENERAL MOTORS CORP.
