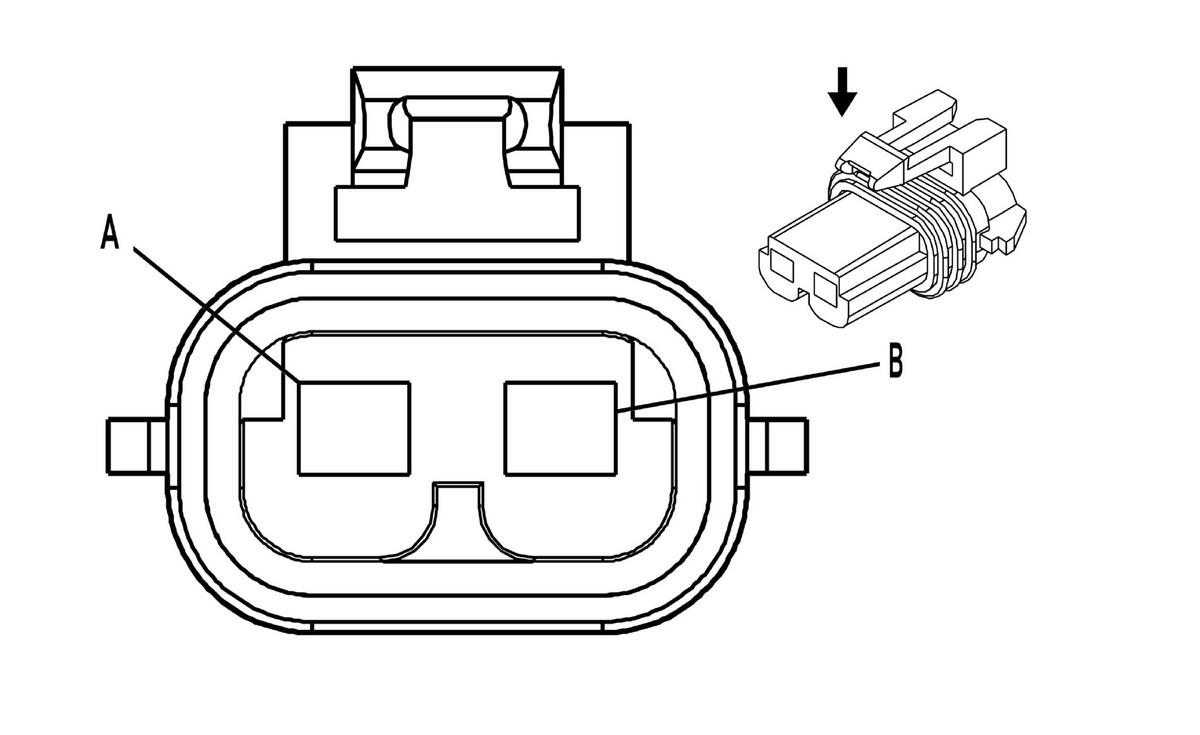

F103 Power Inverter Module Assembly Cable Cover
 Courtesy of GENERAL MOTORS CORP.
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12077900
- Service Connector: 12116247
- Description: 2-Way F Metri-Pack 280 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly - 12116247
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 12077411/2
- Core/Insulation Crimp: 2/5
|
F103 Power Inverter Module Assembly Cable Cover
| Pin |
Size |
Color |
Circuit |
Function |
Option |
| A |
0.5 |
VT |
5087 |
High Voltage Interlock Loop Signal (1) |
- |
| B |
0.5 |
VT |
5087 |
High Voltage Interlock Loop Signal (1) |
- |
