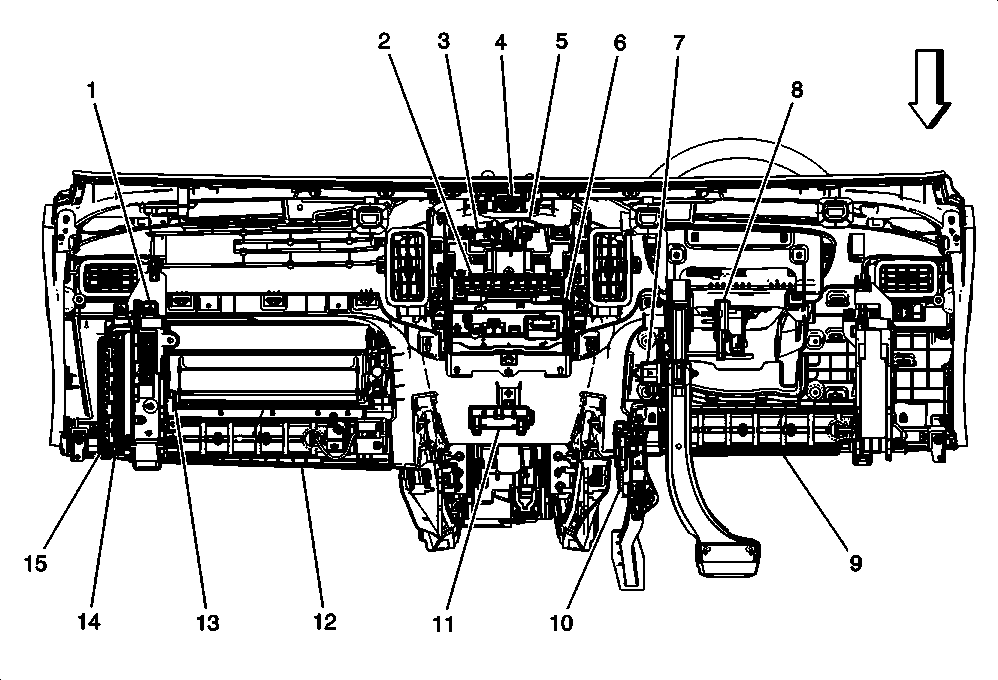

Locating Instrument Panel Components (2 Of 2)
Locating Instrument Panel Components (2 Of 2)
| Component Name | Callout |
|---|---|
| K73 Telematics Communication Interface Control Module | 1 |
| K33 HVAC Control Module | 2 |
| K89 Immobilizer Control Module | 3 |
| E32 Cigarette Lighter Receptacle | 4 |
| B101 Immobilizer Antenna | 5 |
| A11 Radio | 6 |
| B22 Brake Pedal Position Sensor | 7 |
| B201 Brake Control Brake Pedal Position Sensor | 8 |
| F114D Knee Air Bag - Driver | 9 |
| B107 Accelerator Pedal Position Sensor | 10 |
| T10 Keyless Entry Antenna | 11 |
| F114P Knee Air Bag - Passenger | 12 |
| T15 Navigation Antenna Signal Splitter | 13 |
| K9 Body Control Module | 14 |
