Instrument Panel Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

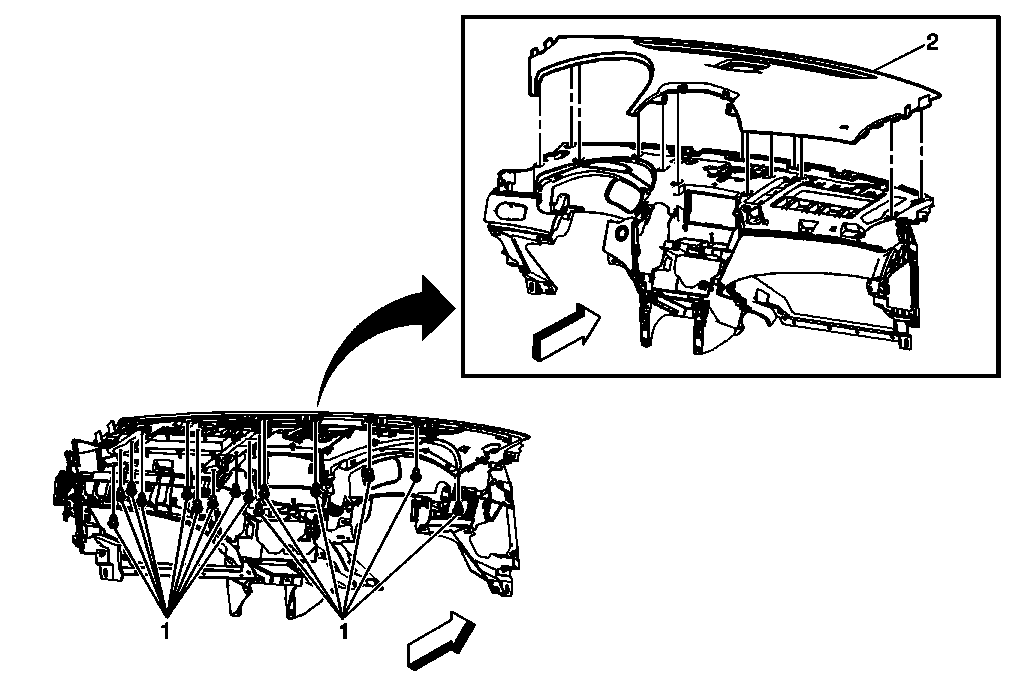

Fig 1: Identifying Instrument Panel Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly Removal . Remove the windshield defroster nozzle duct. Refer to Windshield Defroster Nozzle Duct Replacement . Remove the instrument panel sound deadening material.
1	Instrument Panel Upper Trim Panel Fasteners (Qty: 17) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
2	Instrument Panel Upper Trim Panel Procedure: Grasp the instrument panel upper trim panel and pull upward releasing the retainer clips securing the instrument panel upper trim panel to the carrier assembly.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel assembly from the vehicle. Refer to Instrument Panel Assembly Removal .
Remove the windshield defroster nozzle duct. Refer to Windshield Defroster Nozzle Duct Replacement .
Remove the instrument panel sound deadening material.

Instrument Panel Upper Trim Panel Fasteners (Qty: 17)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Instrument Panel Upper Trim Panel
Procedure:
Grasp the instrument panel upper trim panel and pull upward releasing the retainer clips securing the instrument panel upper trim panel to the carrier assembly.
