Front Floor Console Rear Compartment Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

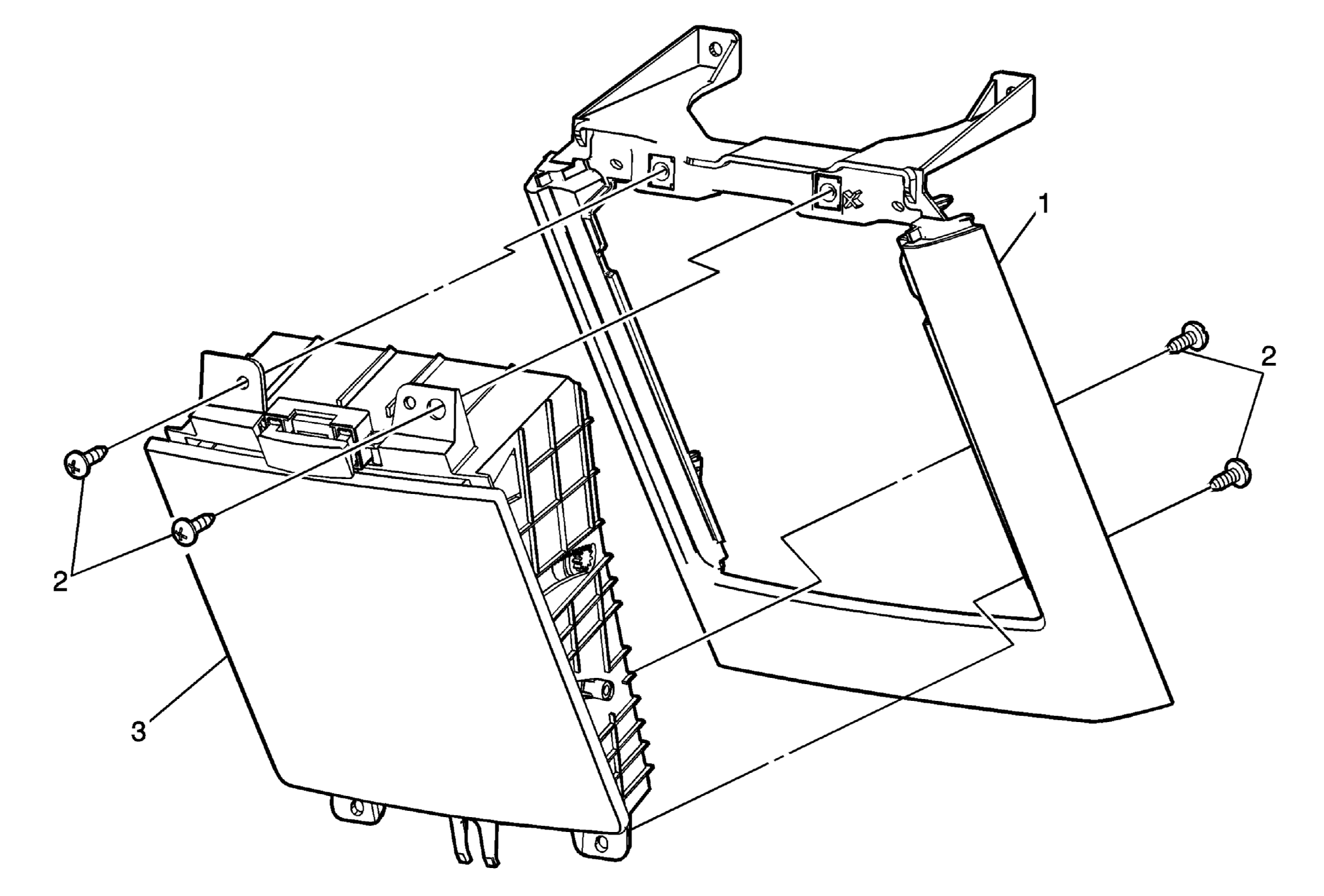

Fig 1: View Of Front Floor Console Rear Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Floor Console Lower Rear Trim Panel Refer to Front Floor Console Rear Trim Panel Replacement - Lower .
2	Front Floor Console Rear Compartment Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Front Floor Console Rear Compartment Assembly Procedure: When replacing the front floor console rear compartment, transfer all necessary components.
