Wiper/Washer System Wiring Schematics
>>
Front Washer
Front Washer

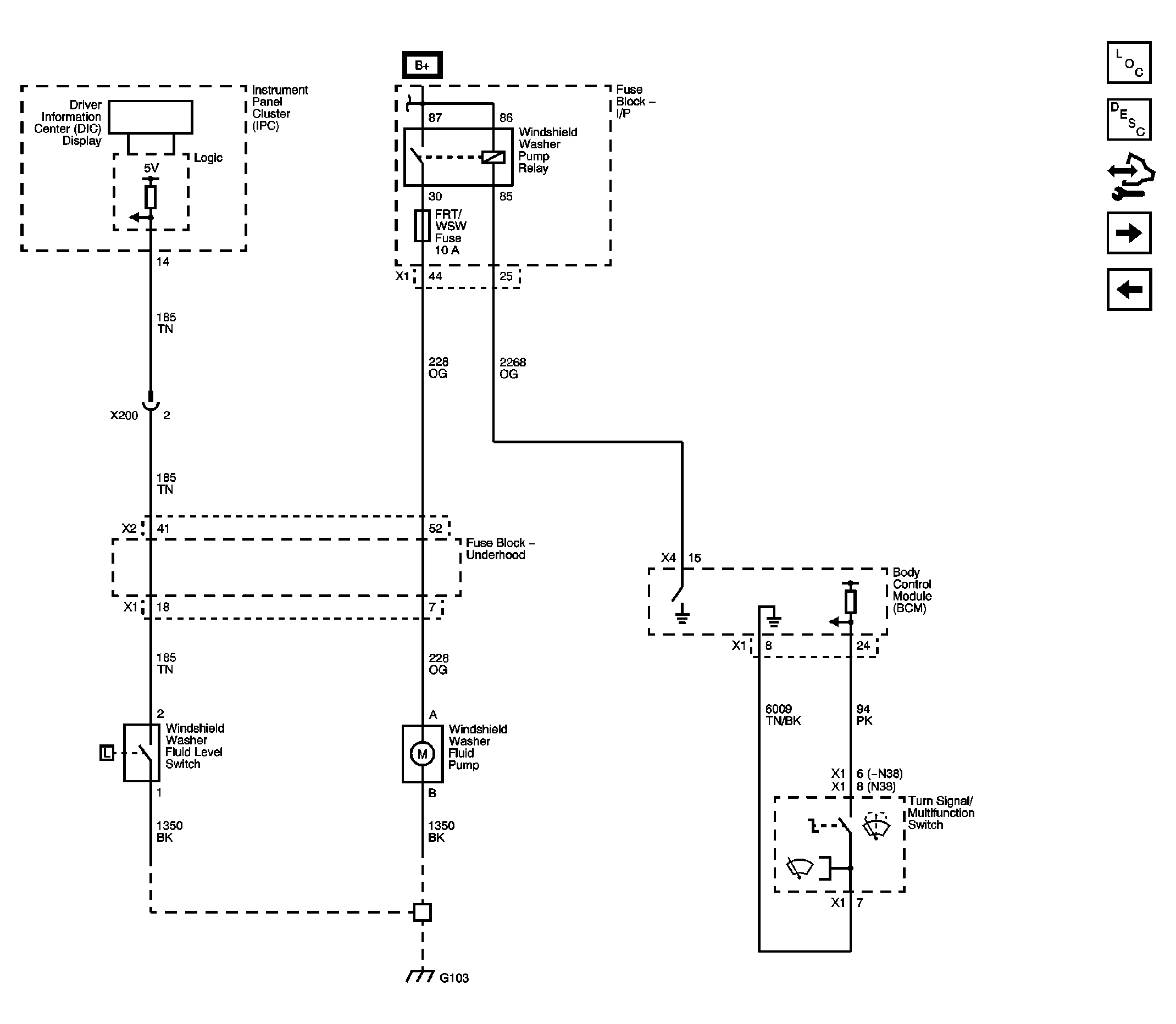

Fig 1: Front Washer Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
