Exhaust Heat Shield Replacement (Front)
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

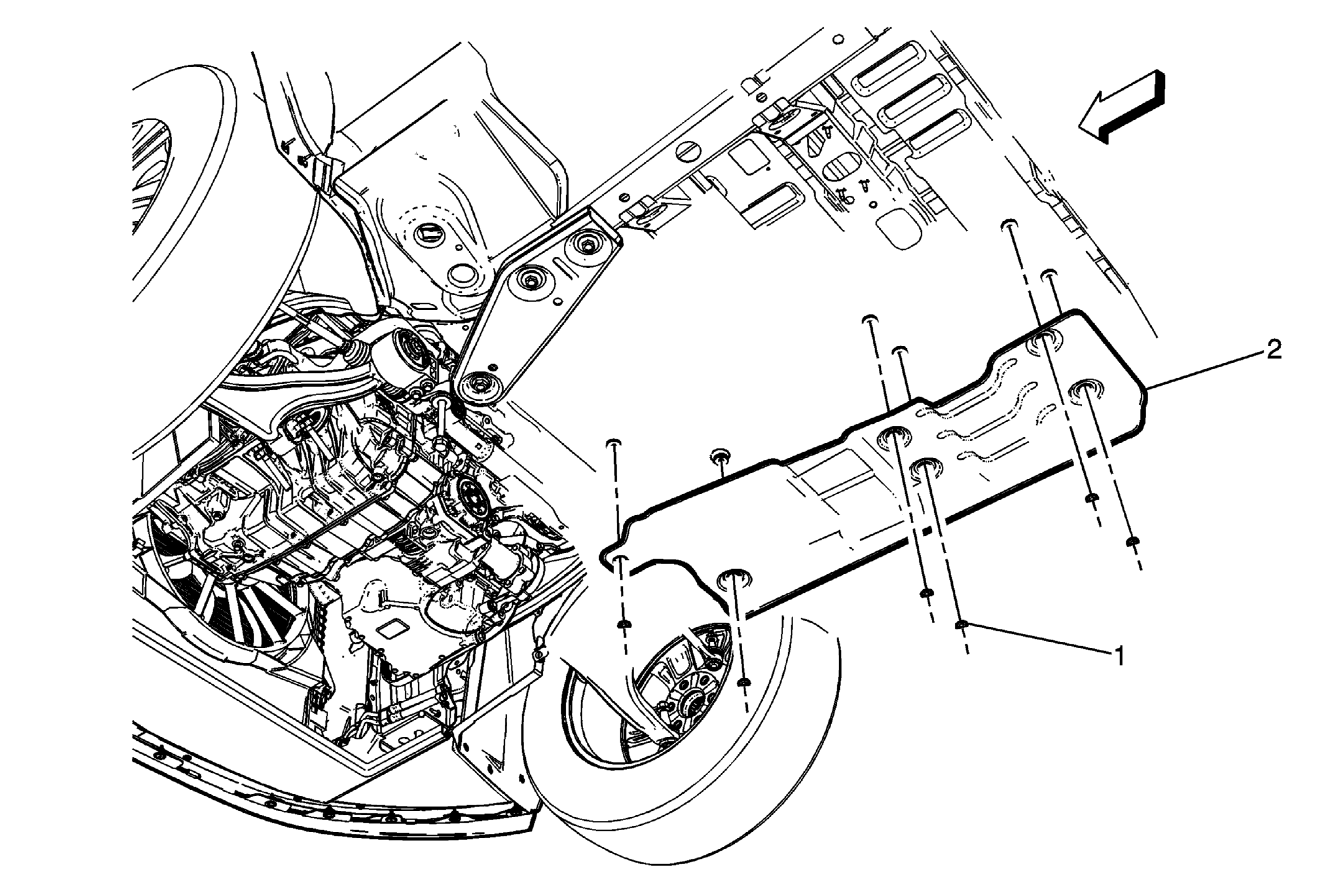

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Exhaust Service Warning .
WARNING:
Preliminary Procedure Remove the exhaust muffler. Refer to Exhaust Muffler Replacement .Refer to Eye Protection Warning . |
|
| 1 | Exhaust Heat Shield Fastener (Qty: 6)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Exhaust Heat Shield |
