Liftgate Center Applique Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

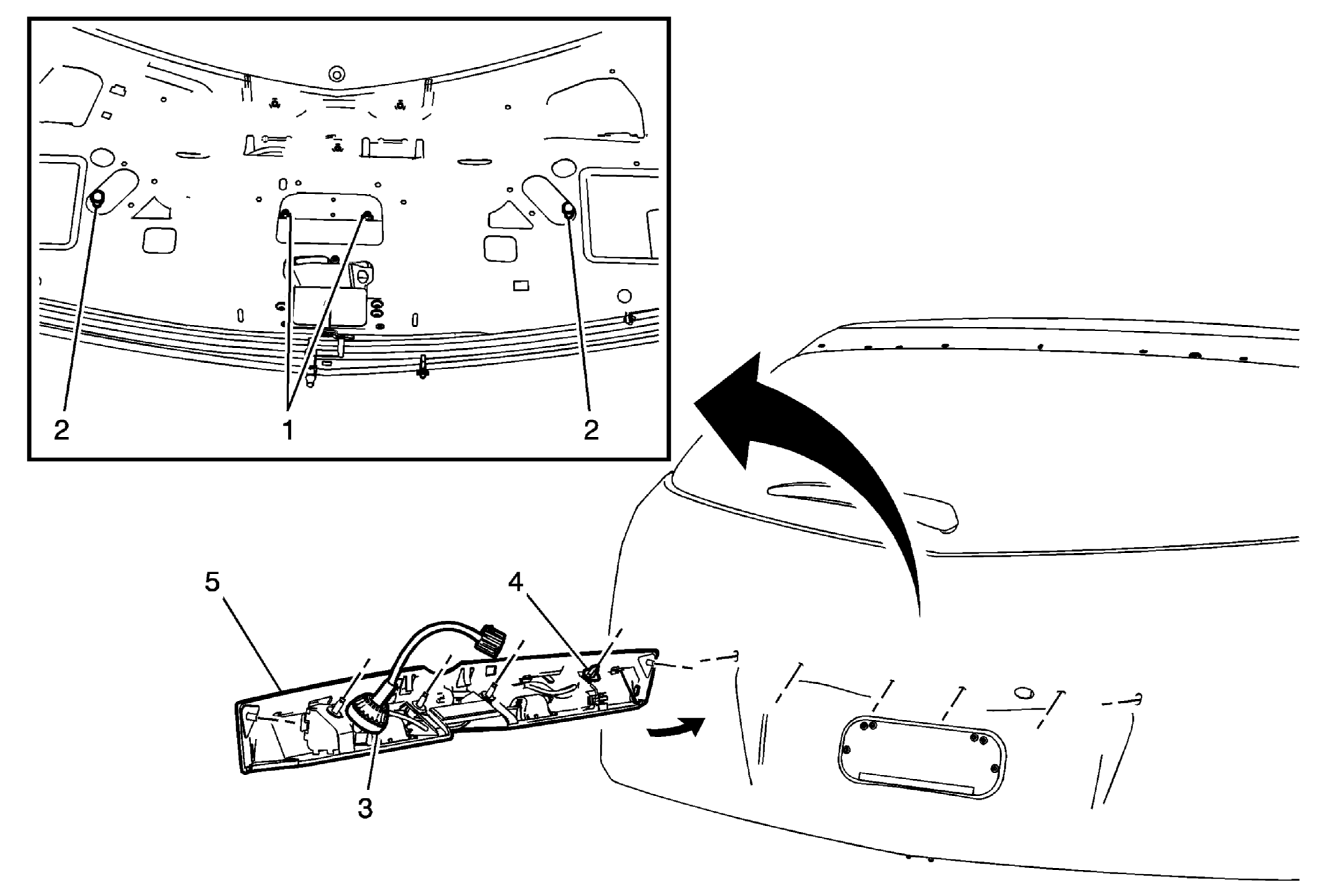

Fig 1: Identifying Liftgate Center Applique Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the interior liftgate trim panels. Refer to Liftgate Upper Trim Finish Panel Replacement , and Liftgate Lower Trim Finish Panel Replacement . Disconnect the electrical connector for the license plate lamps. Disengage the electrical harness grommet from the outer liftgate panel.
1	Liftgate Center Applique Inner Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Liftgate Center Applique Outer Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Electrical Harness Grommet
4	Retainer (Qty: 1) TIP: Carefully release the upper retainer, replace as needed.
5	Liftgate Center Applique Panel Procedure Transfer parts as needed to the new applique panel.
