Wiper/Washer Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

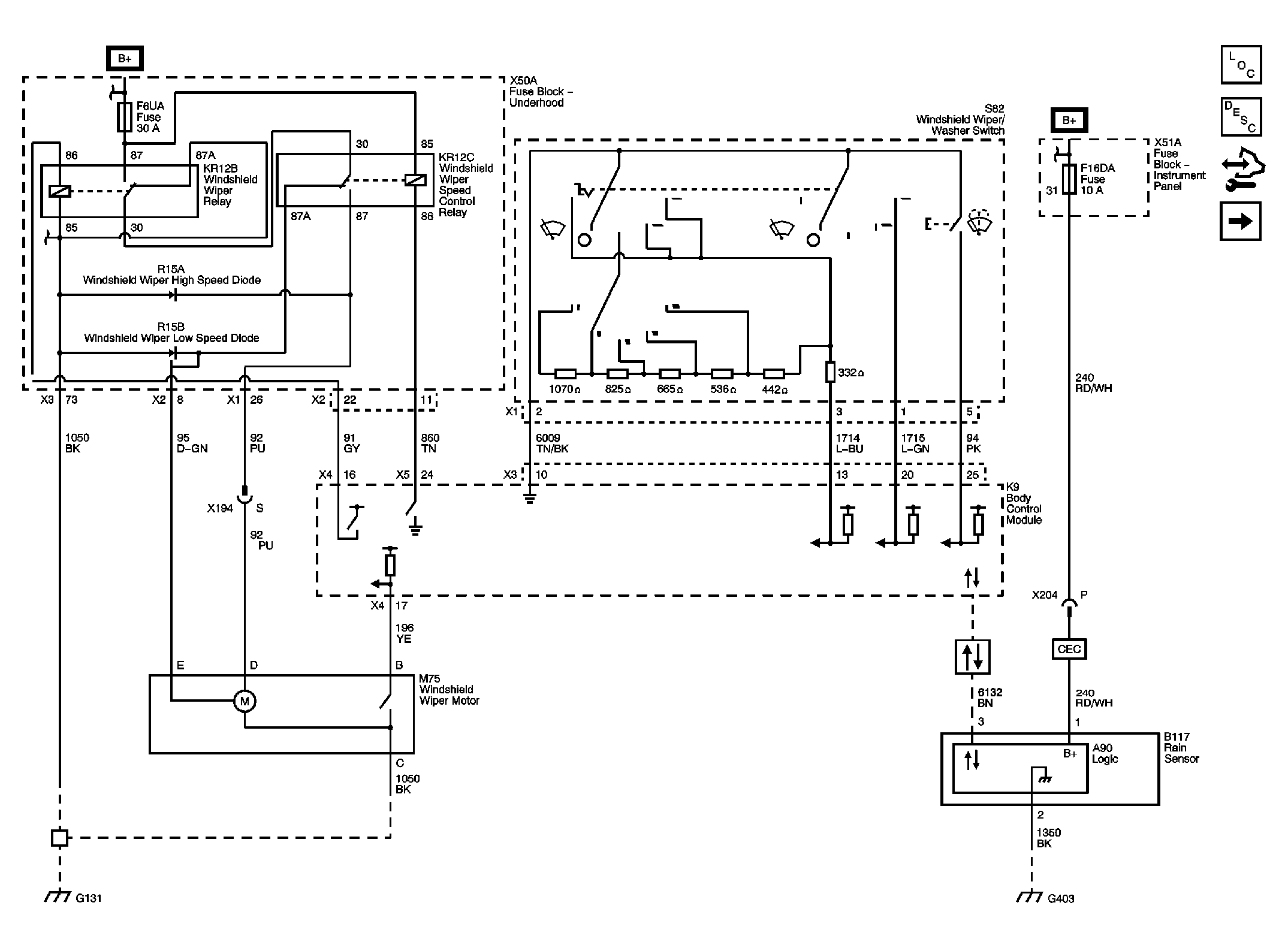

Fig 1: Front Wipers Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

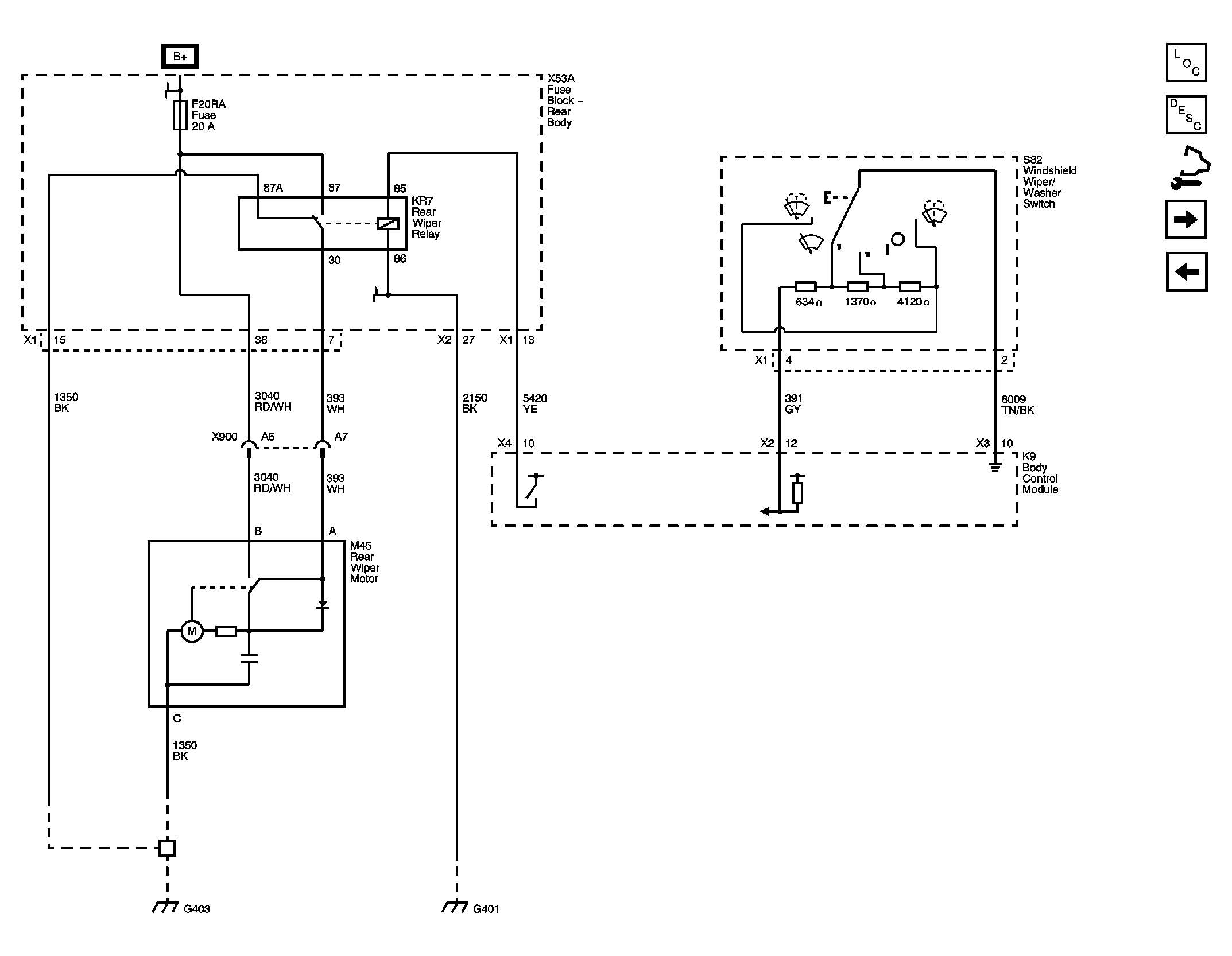

Fig 2: Rear Wipers Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

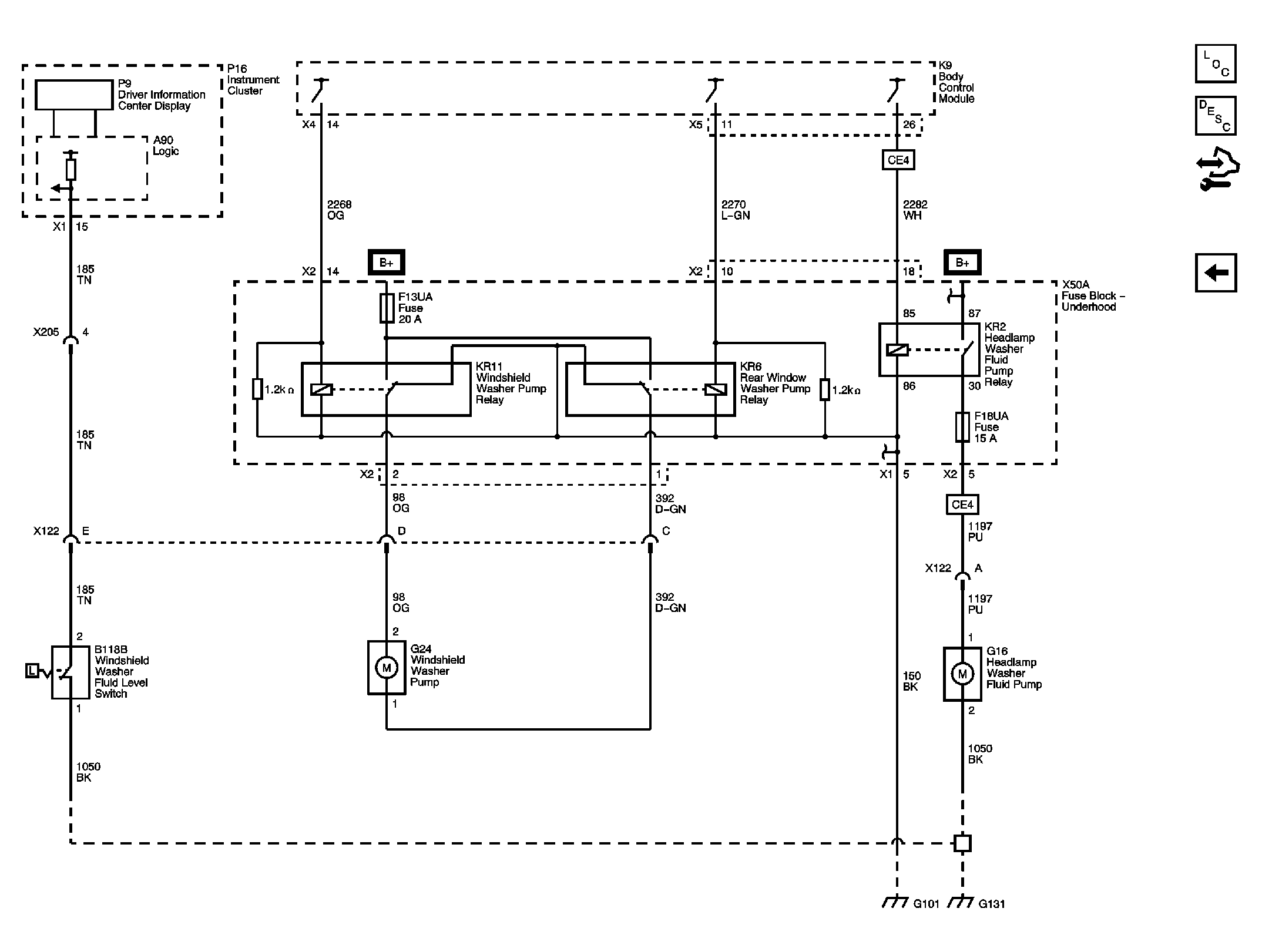

Fig 3: Windshield & Headlamp Washers Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
