Rear Window Washer Nozzle Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

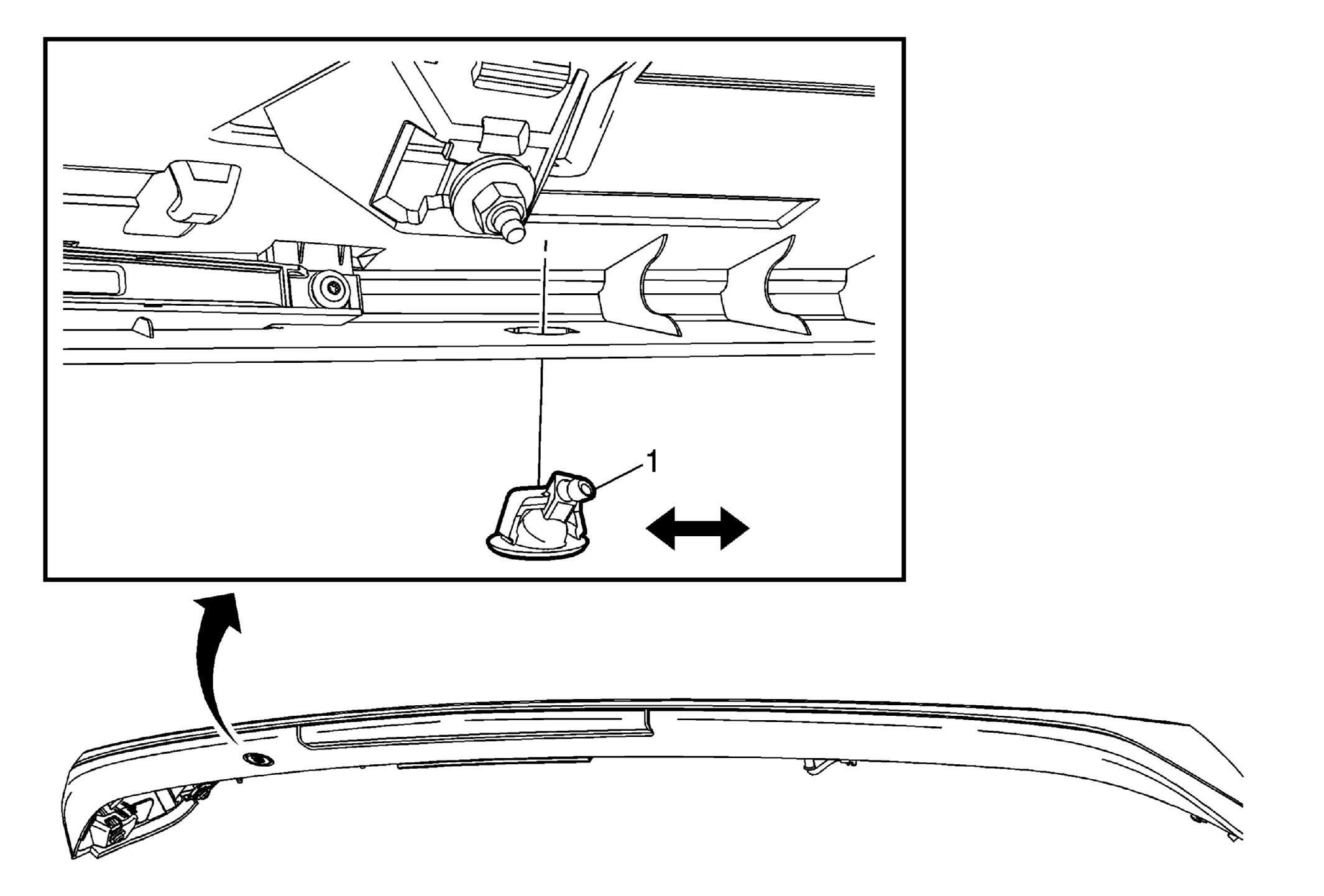

Fig 1: View Of Rear Window Washer Nozzle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear end spoiler. Refer to Rear End Spoiler Replacement .
1	Rear Window Washer Nozzle Procedure Squeeze the outer tabs on the nozzle in order to remove the nozzle from the rear spoiler. Disconnect the rear window washer nozzle hose from the rear window washer nozzle. Remove the rear window washer nozzle. Check the rear window washer nozzle adjustment. Refer to Rear Window Washer Nozzle Adjustment .

Callout

Component Name

Preliminary Procedure:
Remove the rear end spoiler. Refer to Rear End Spoiler Replacement .

Rear Window Washer Nozzle

Procedure

Squeeze the outer tabs on the nozzle in order to remove the nozzle from the rear spoiler.
Disconnect the rear window washer nozzle hose from the rear window washer nozzle.
Remove the rear window washer nozzle.
Check the rear window washer nozzle adjustment. Refer to Rear Window Washer Nozzle Adjustment .
