Stabilizer Shaft Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

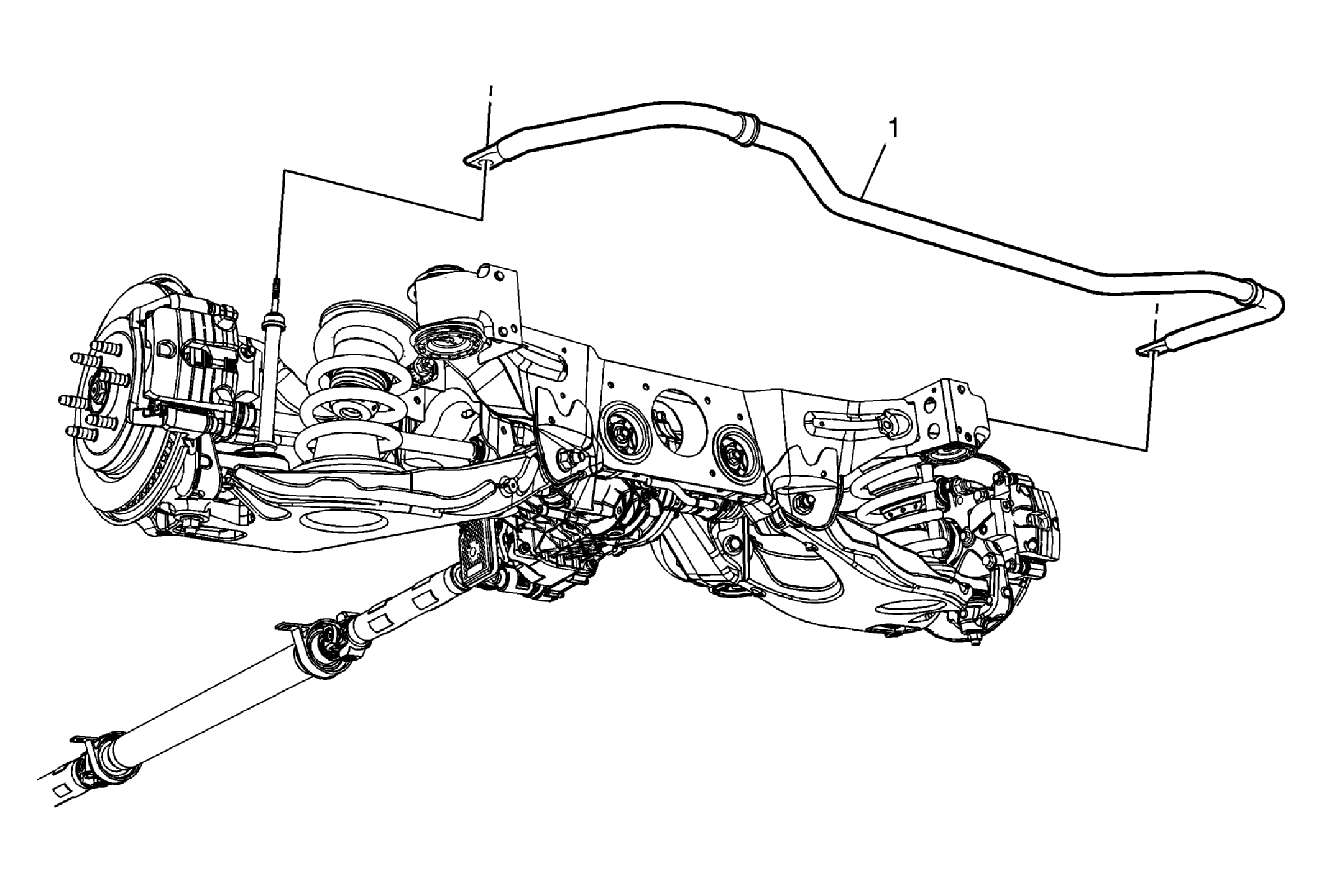

Fig 1: Identifying Stabilizer Shaft

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the stabilizer links from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement . Remove the stabilizer insulators. Refer to Stabilizer Shaft Insulator Replacement
1	Stabilizer Shaft

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Remove the stabilizer links from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement .
Remove the stabilizer insulators. Refer to Stabilizer Shaft Insulator Replacement

Stabilizer Shaft
