Rear Axle Upper Control Arm Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

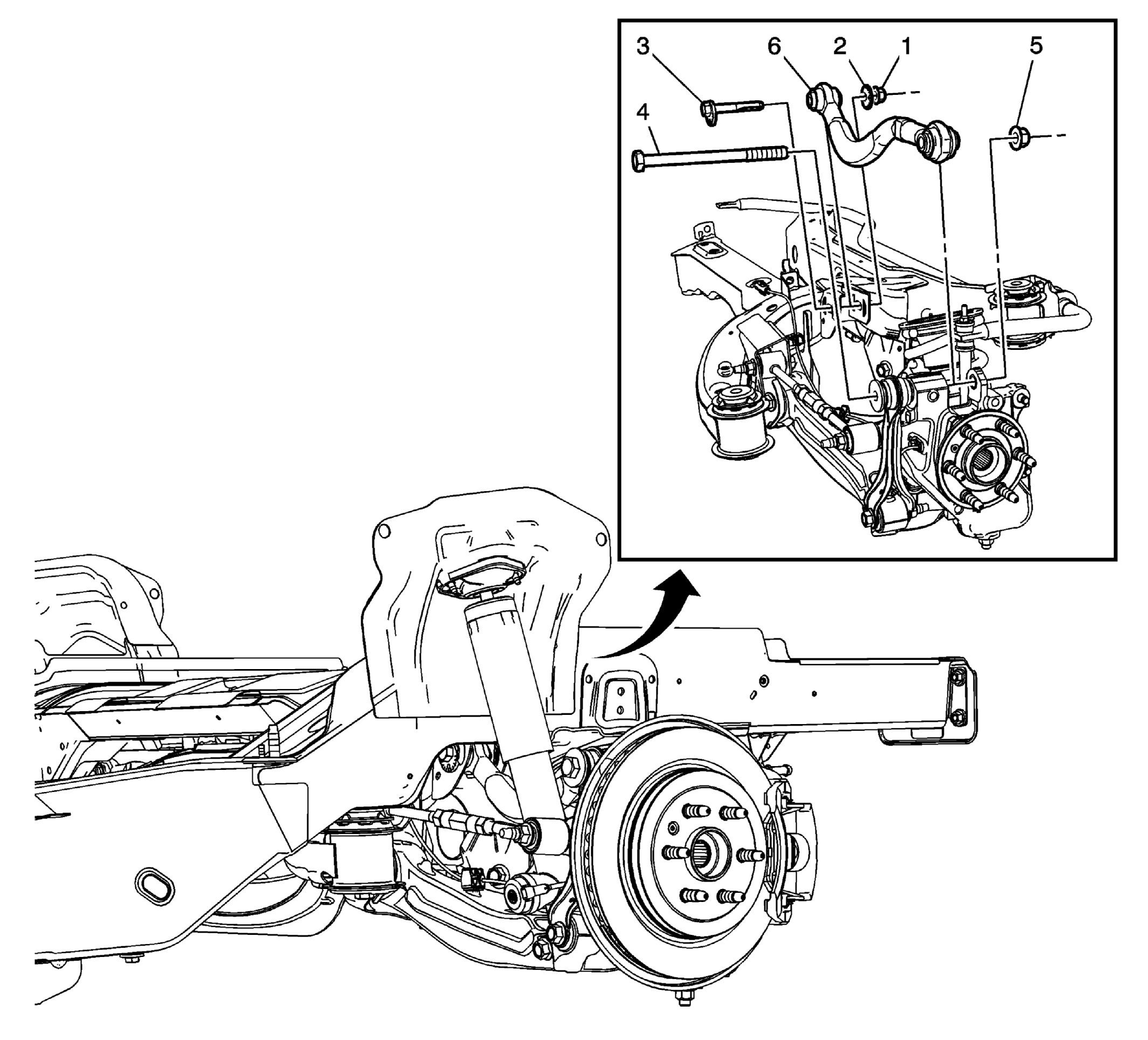

Fig 1: View Of Rear Axle Upper Control Arm & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation Support the rear lower control arm, if needed.
1	Rear Suspension Upper Control Arm Nut
2	Rear Suspension Upper Control Arm Adjuster Cam
3	Rear Suspension Upper Control Arm Adjuster Bolt CAUTION: Refer to Fastener Caution . Tighten 70 N.m (52 lb ft) plus an additional 60 degrees
4	Rear Suspension Upper Control Arm Bolt Tighten 150 N.m (111 lb ft) plus an additional 90 degrees
5	Rear Suspension Upper Control Arm Nut
6	Rear Suspension Upper Control Arm Procedure Check and adjust the rear camber. Refer to Rear Camber Adjustment .
