Installation Procedure

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

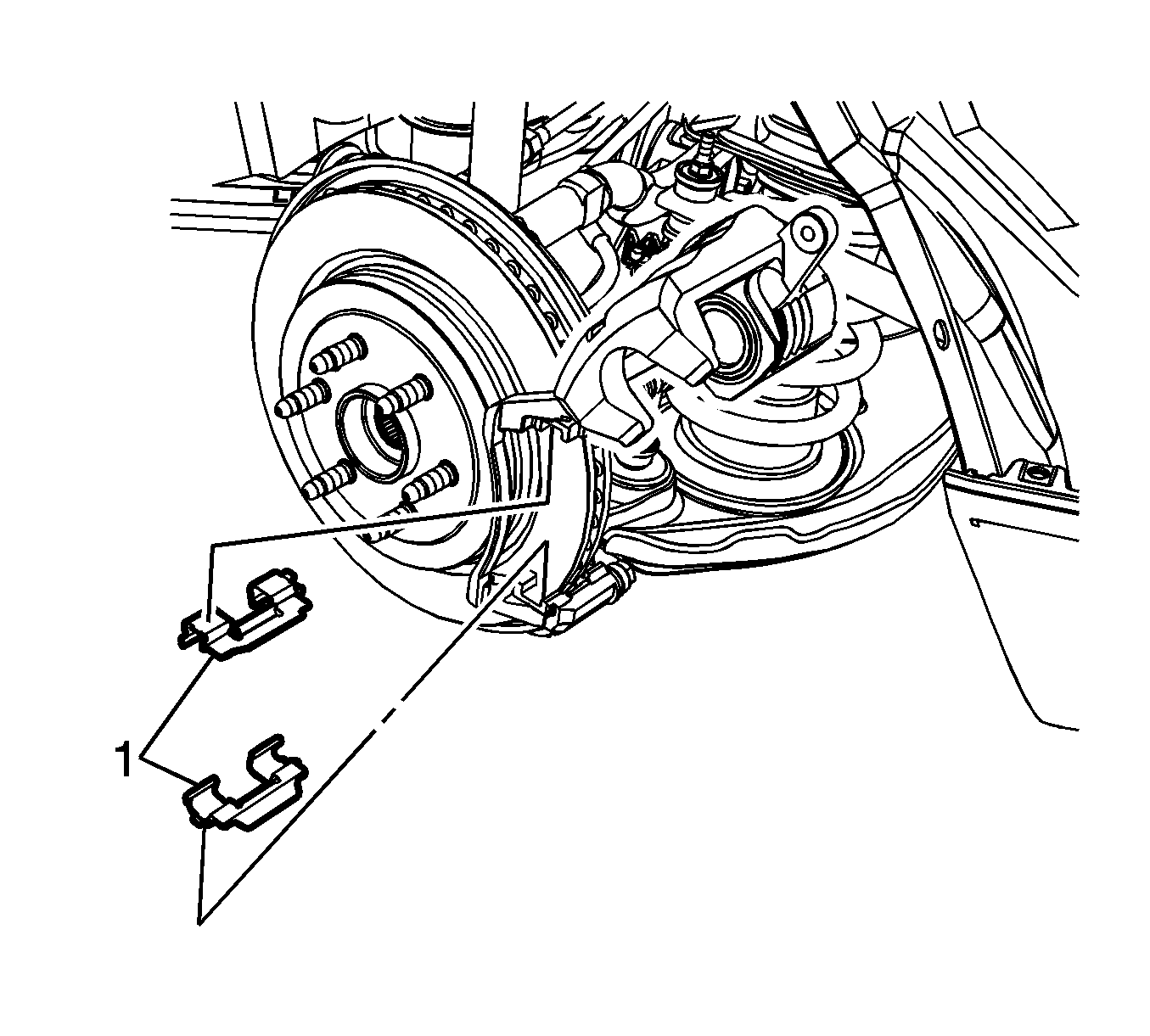

    Fig 1: Identifying Brake Pad Springs
    GM2227105Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If installing new brake pads, install new brake pad springs.

  1. Install the brake pad springs (1).

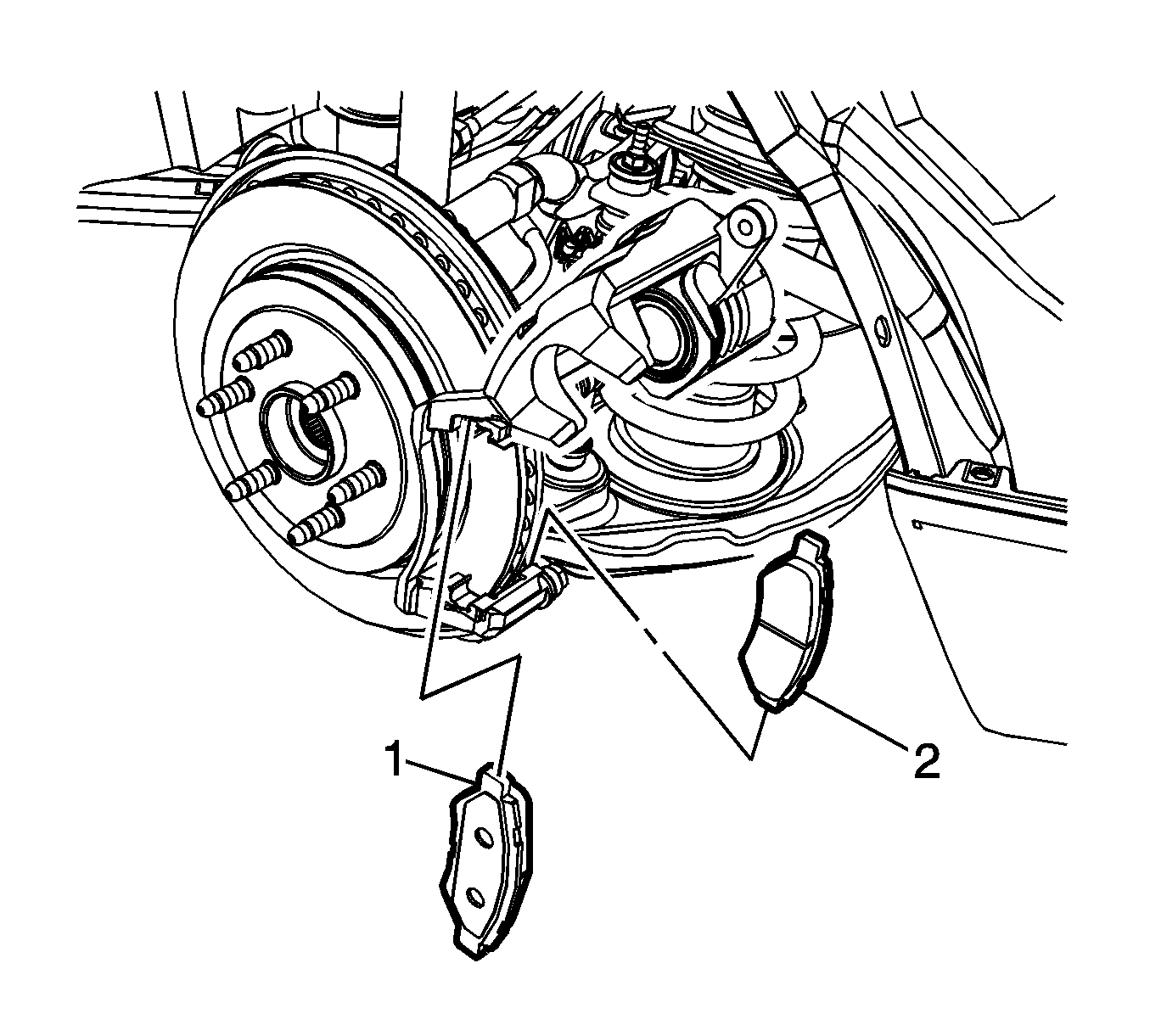

    2. Fig 2: View Of Inner & Outer Brake Pads
    GM2227103Courtesy of GENERAL MOTORS COMPANY
  2. Install the outer brake pad (1).
  3. Install the inner brake pad (2).
  4. Rotate the brake caliper into position.

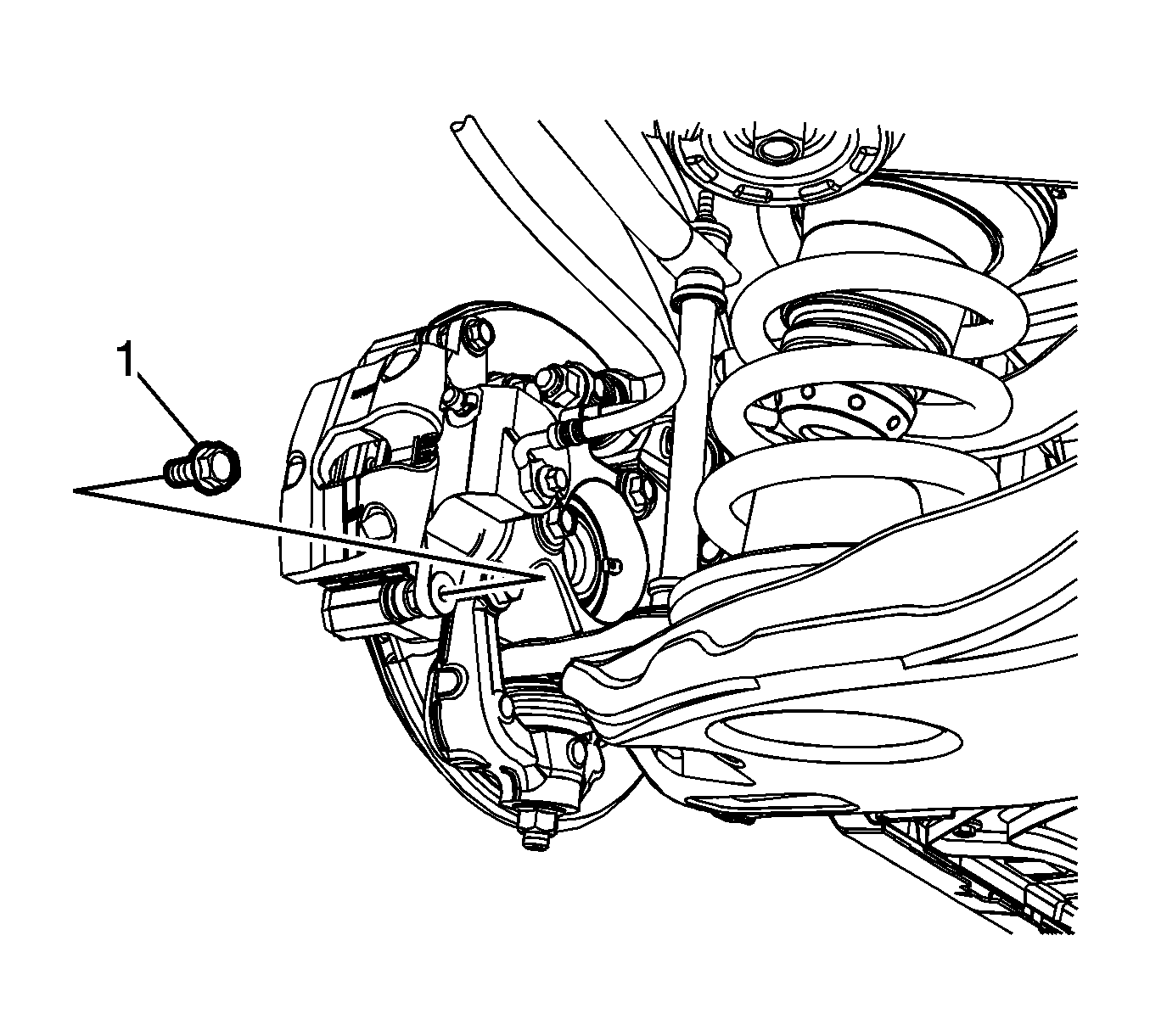

    5. Fig 3: Identifying Caliper Guide Pin
    GM2227101Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  5. Using a backup wrench to hold the brake caliper guide pin stationary, install the brake caliper guide pin bolt (1) and tighten to 60 N.m (44 lb ft).
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
  8. Slowly release the brake pedal.
  9. Wait 15 seconds, then repeat steps 7-8 until a firm brake pedal apply is obtained. This will properly seat the brake caliper pistons and brake pads.
  10. Fill the brake master cylinder reservoir to the proper level. Refer to Master Cylinder Reservoir Filling .
  11. Set the electronic park brake cable tension. Refer to Parking Brake Cable Adjuster Enabling .
  12. Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
