Installation Procedure

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

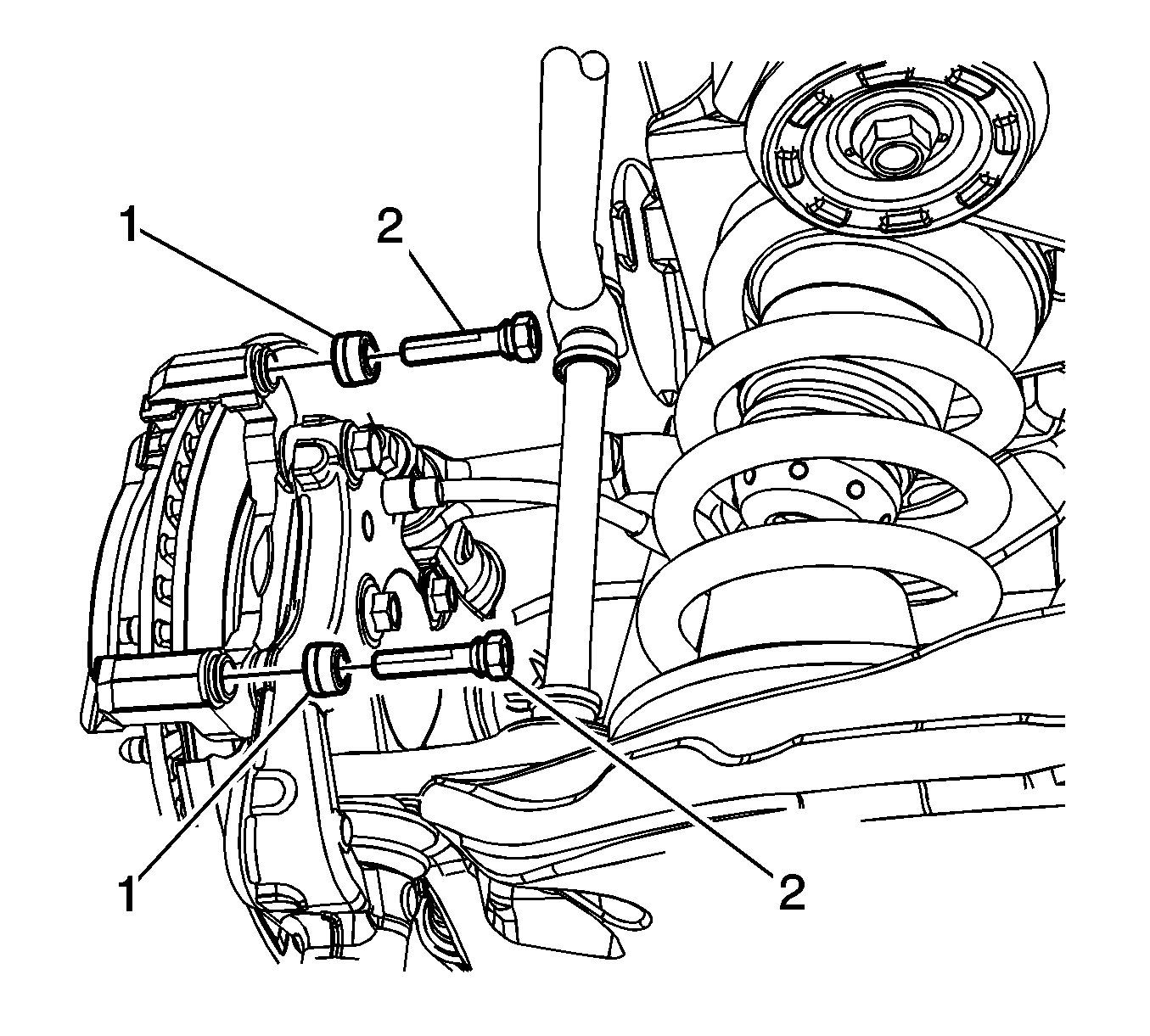

    Fig 1: Identifying Brake Caliper Guide Pin Seals & Guide Pins
    GM2227145Courtesy of GENERAL MOTORS COMPANY
  1. Apply a light coat of high temperature silicone brake lubricant to the brake caliper guide pins.

    Install the brake caliper guide pin seals (1) to the brake caliper bracket.

  2. Assemble the brake caliper guide pin seals (1) to the brake caliper guide pins (2).
  3. Ensure the lip of the seal is fully seated in the groove of the brake caliper guide pin.
  4. Install the brake caliper guide pin and seal assemblies to the brake caliper bracket.
  5. Ensure the lip of the seal is fully seated in the groove of the brake caliper bracket.

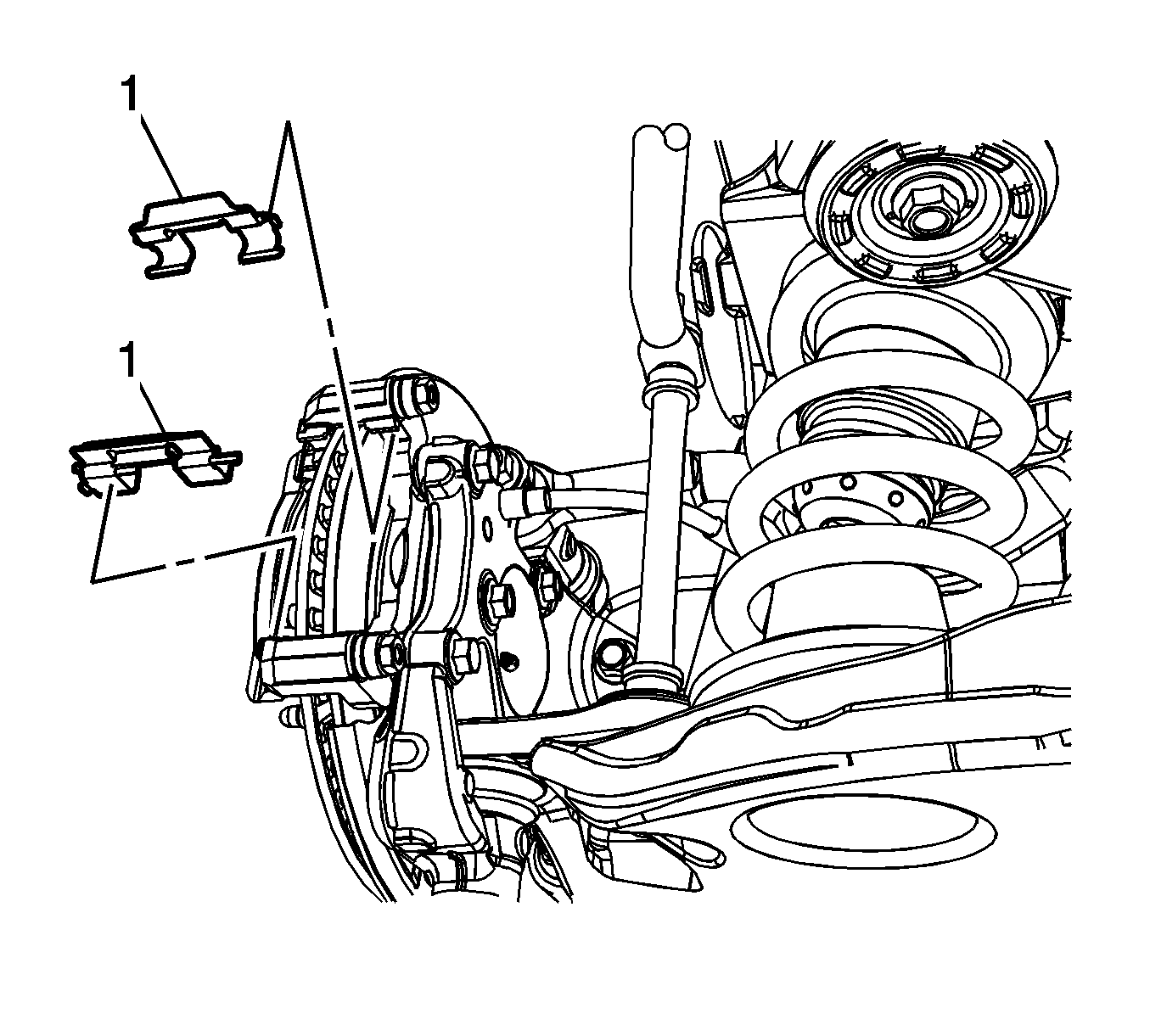

    6. Fig 2: Identifying Brake Pad Springs
    GM2227135Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    If installing new brake pads, install new brake pad springs.

  6. Install the brake pad springs (1).

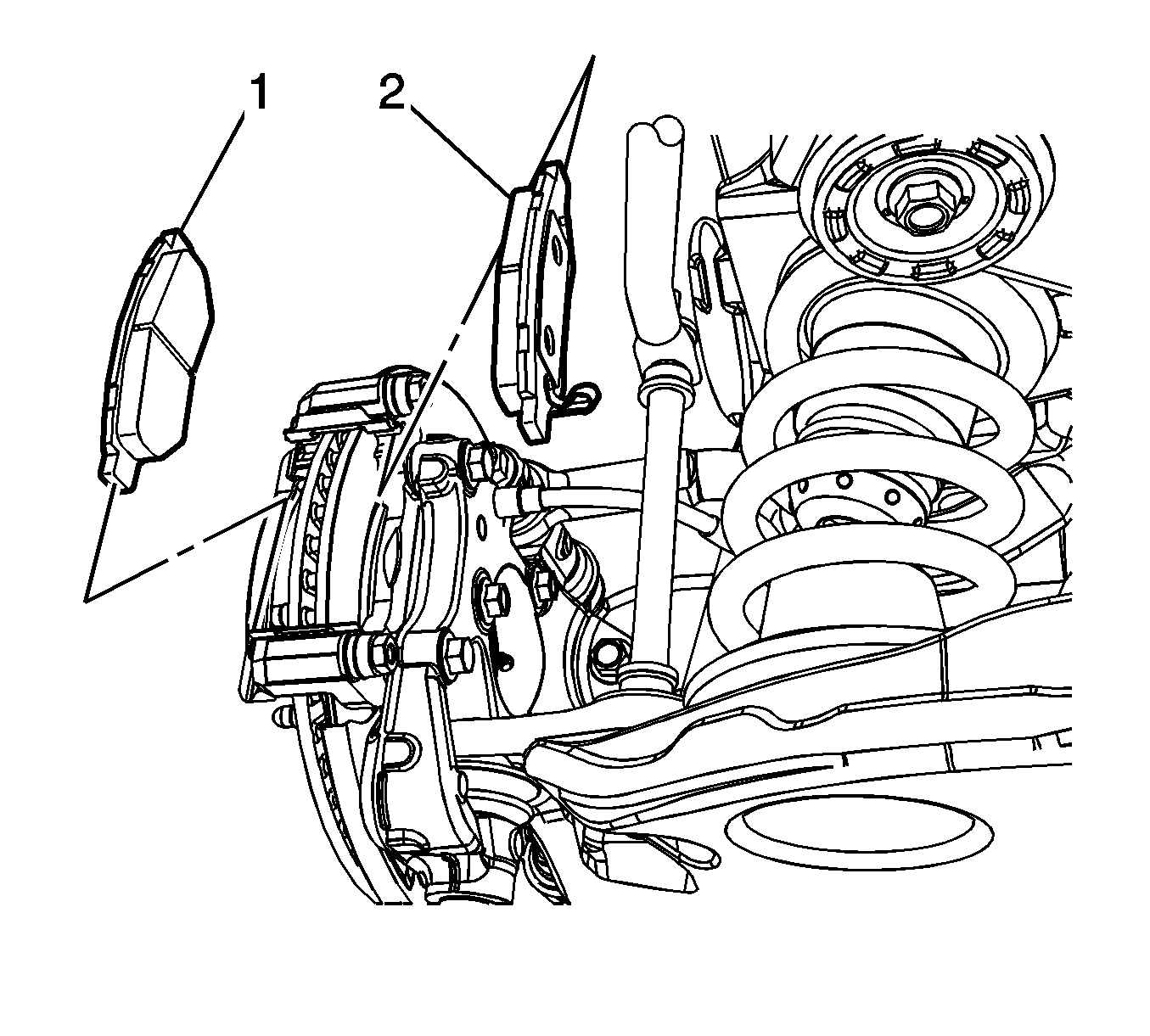

    7. Fig 3: Illustrating Brake Caliper & Disc Brake Pads
    GM2227129Courtesy of GENERAL MOTORS COMPANY
  7. Install the outer brake pad (1).
  8. Install the inner brake pad (2).

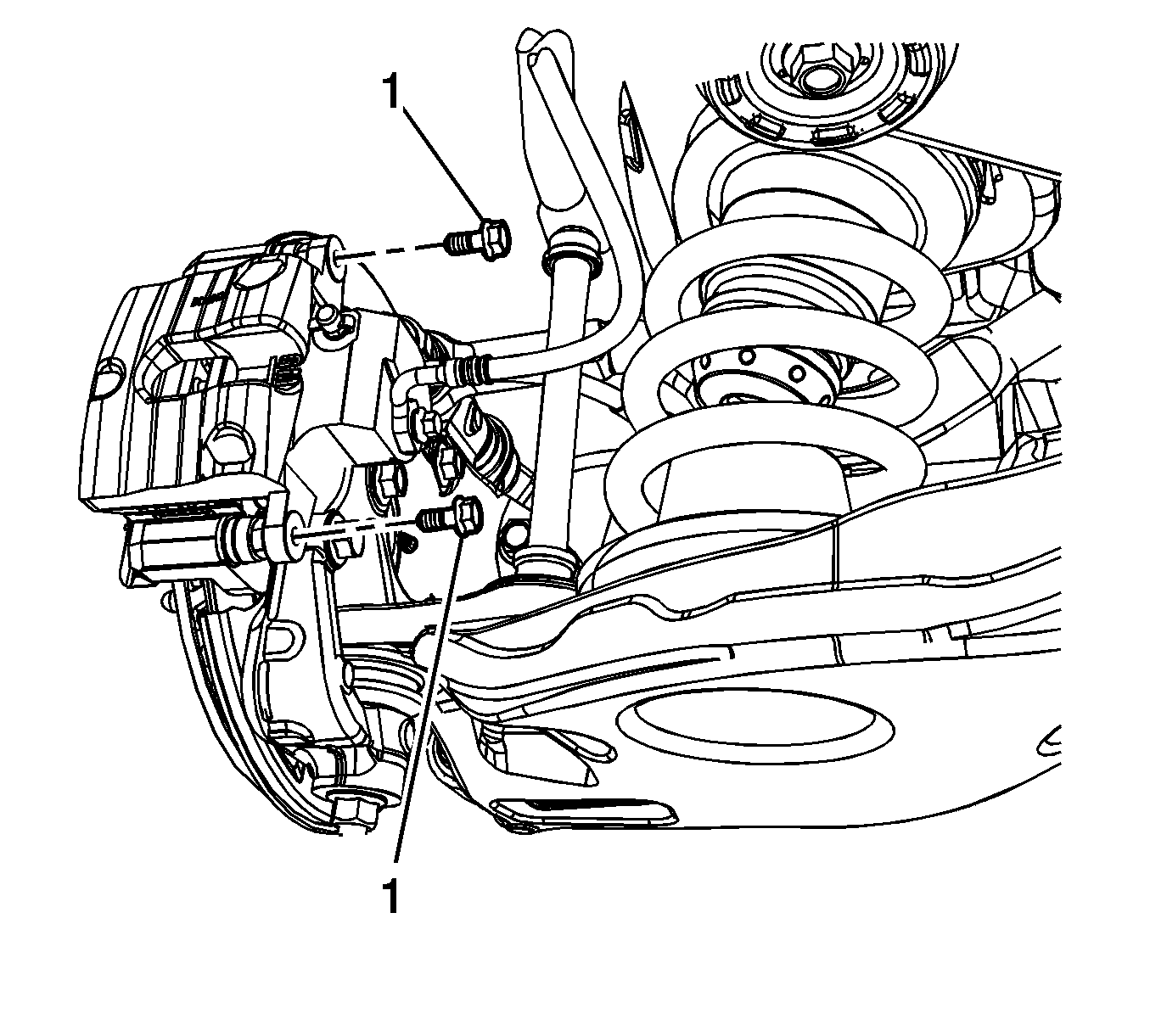

    9. Fig 4: View Of Caliper Guide Pins
    GM2227123Courtesy of GENERAL MOTORS COMPANY
  9. Position the brake caliper to the bracket.
    10. CAUTION:

    Refer to Fastener Caution .

  10. Using a backup wrench to hold the brake caliper guide pins stationary, install and tighten the guide pin bolts (1) to 60 N.m (44 lb ft).
  11. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
