Rear Side Door Inside Handle Replacement
WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

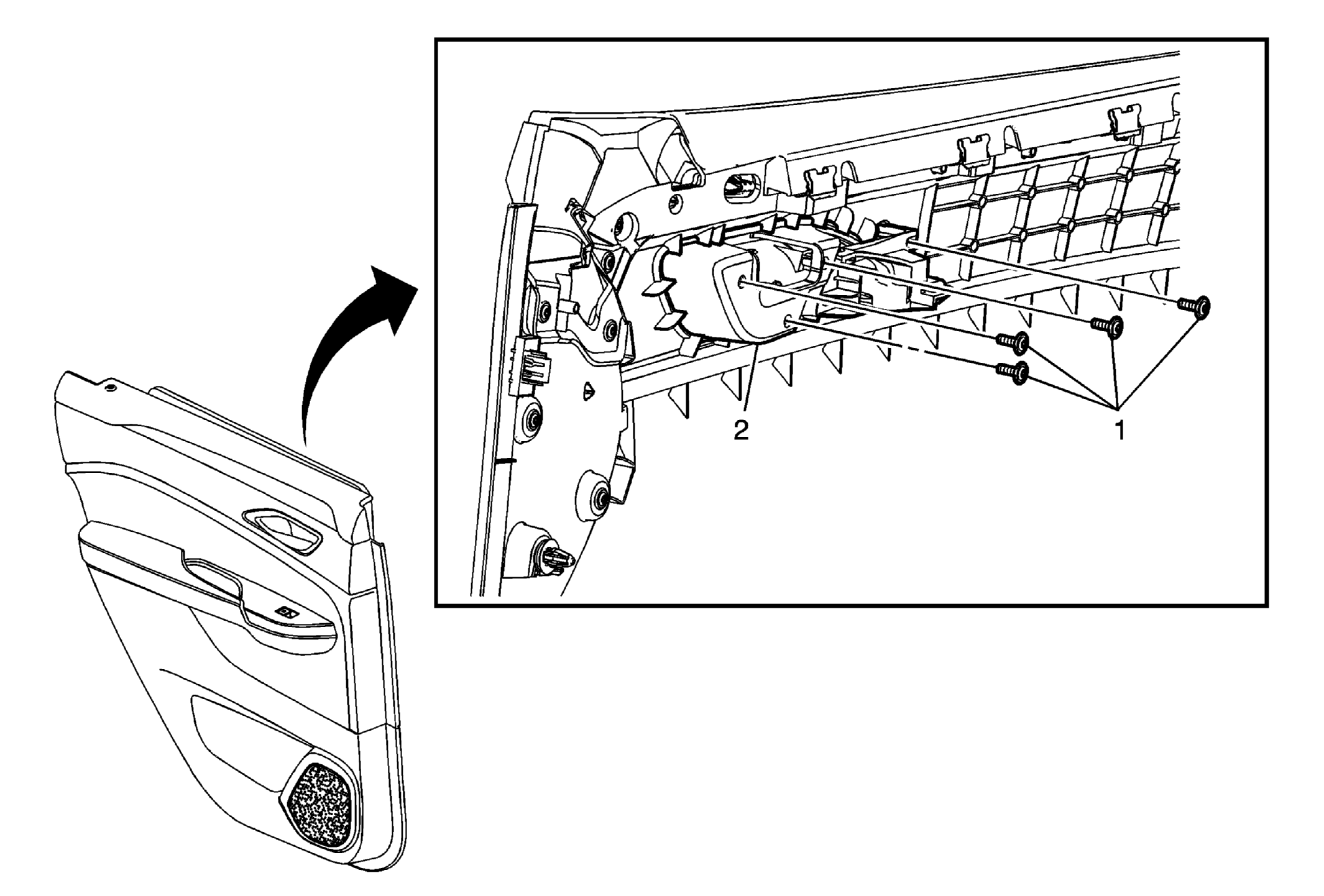

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove rear door trim panel. Refer to Rear Side Door Trim Replacement . |
|
| 1 | Rear Side Door Inside Handle Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Rear Side Door Inside Handle Assembly |
