Radiator Surge Tank Inlet Hose Replacement

WARNING: This page is about a different car, the 2015 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

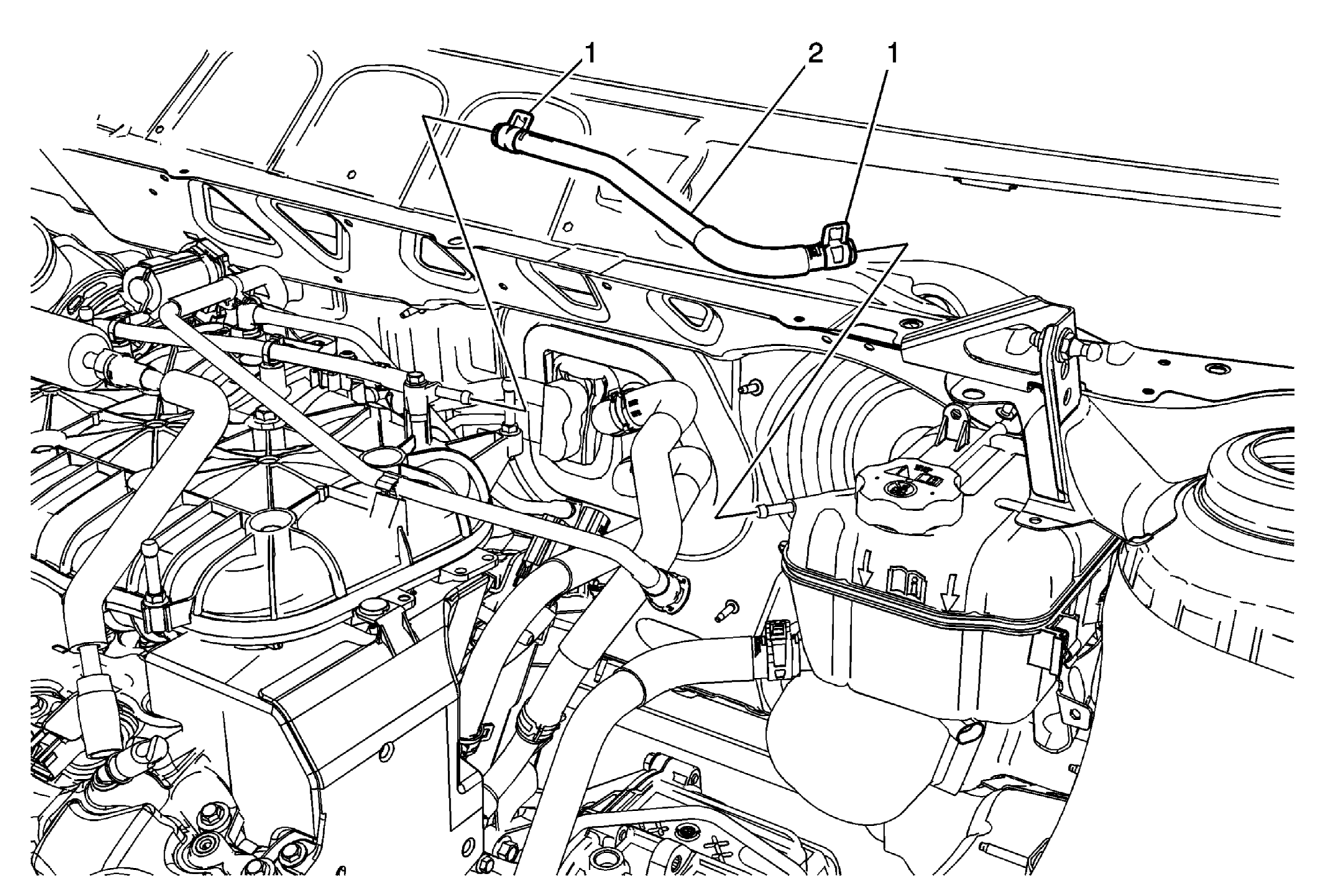

Fig 1: Radiator Surge Tank Inlet Hose (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Partially drain the coolant. Refer to Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static Fill) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Radiator Surge Tank Inlet Hose Clamp (Qty: 2) Procedure Disengage tension on the radiator surge tank inlet hose clamps using BO-38185 Hose Clamp Pliers. Special Tools BO-38185 Hose Clamp Pliers For equivalent regional tools, Refer to Special Tools
2	Radiator Surge Tank Inlet Hose

Callout

Component Name

Preliminary Procedures

Partially drain the coolant. Refer to Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static Fill) .
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .

Radiator Surge Tank Inlet Hose Clamp (Qty: 2)
Procedure
Disengage tension on the radiator surge tank inlet hose clamps using BO-38185 Hose Clamp Pliers.
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, Refer to Special Tools

Radiator Surge Tank Inlet Hose
