Left Side of the Engine Compartment

Left Side of the Engine Compartment

Component Name Callout
Brake Fluid Level Switch 1
Electronic Brake Control Module (EBCM) 2
Variable Effort Steering Actuator (NV7) 3
Brake Booster Vacuum Sensor 4

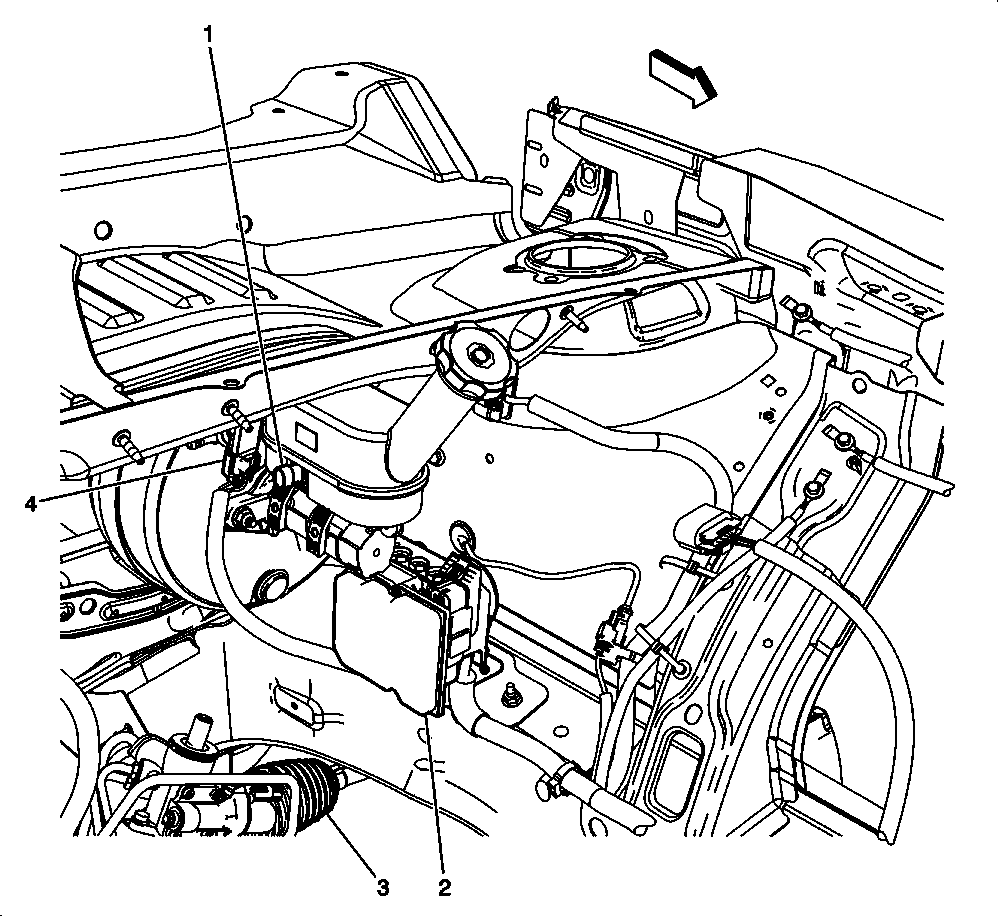

Fig 1: Left Side Of Engine Compartment
GM2358077Courtesy of GENERAL MOTORS CORP.
