Steering Column Lower Trim Cover Replacement

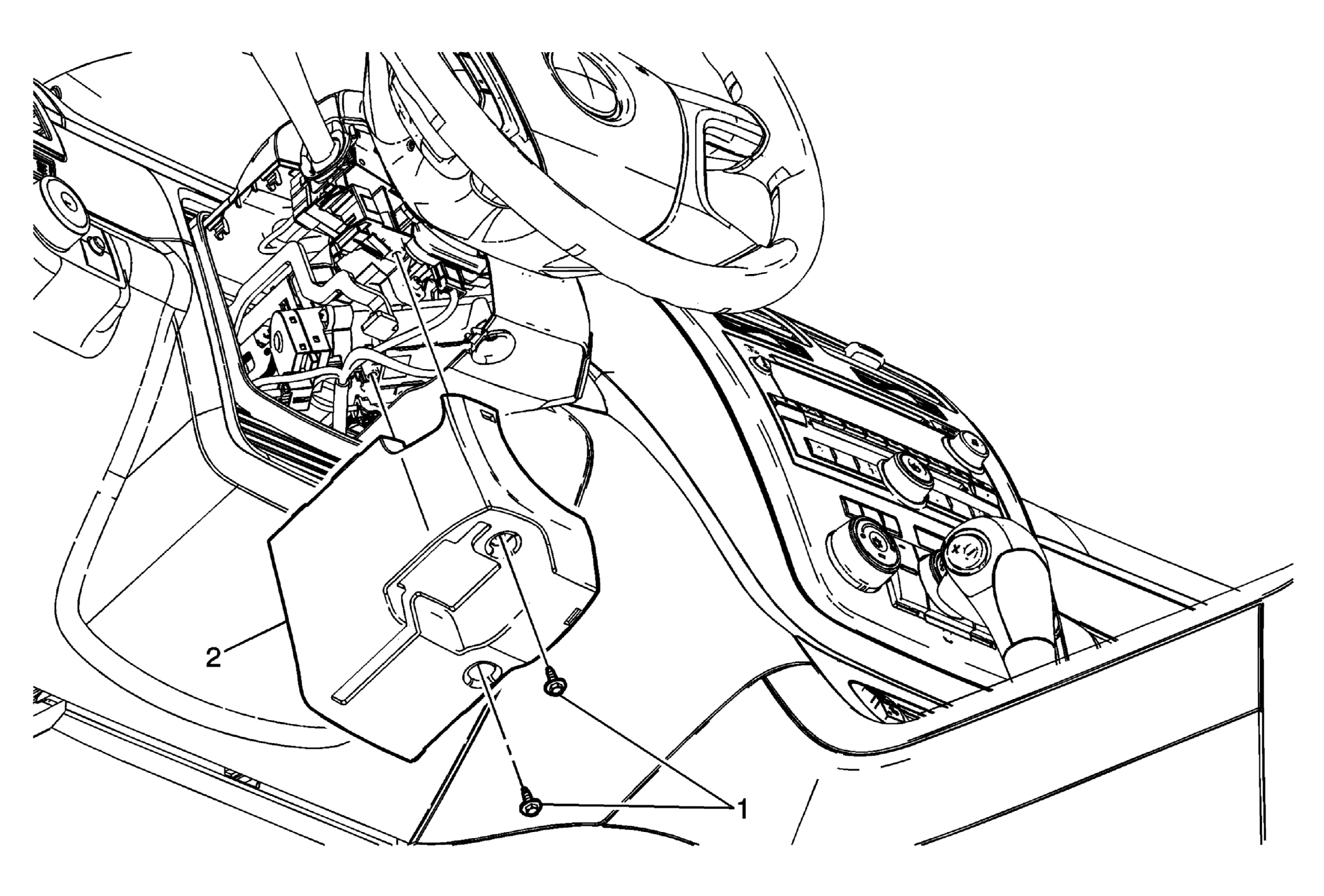

Fig 1: Identifying Steering Column Lower Trim Cover
GM1850478Courtesy of GENERAL MOTORS CORP.
Steering Column Lower Trim Cover Replacement

Callout Component Name
Preliminary Procedure
Remove the ignition lock cylinder opening trim cover bolts. Refer to Ignition Lock Cylinder Opening Trim Cover Replacement .
1 Steering Column Lower Trim Cover Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Steering Column Lower Trim Cover

Procedure

  1. Unclip the steering column lower trim cover from the ignition lock cylinder opening trim cover.
  2. Separate the steering column lower trim cover from the steering column upper trim cover.
