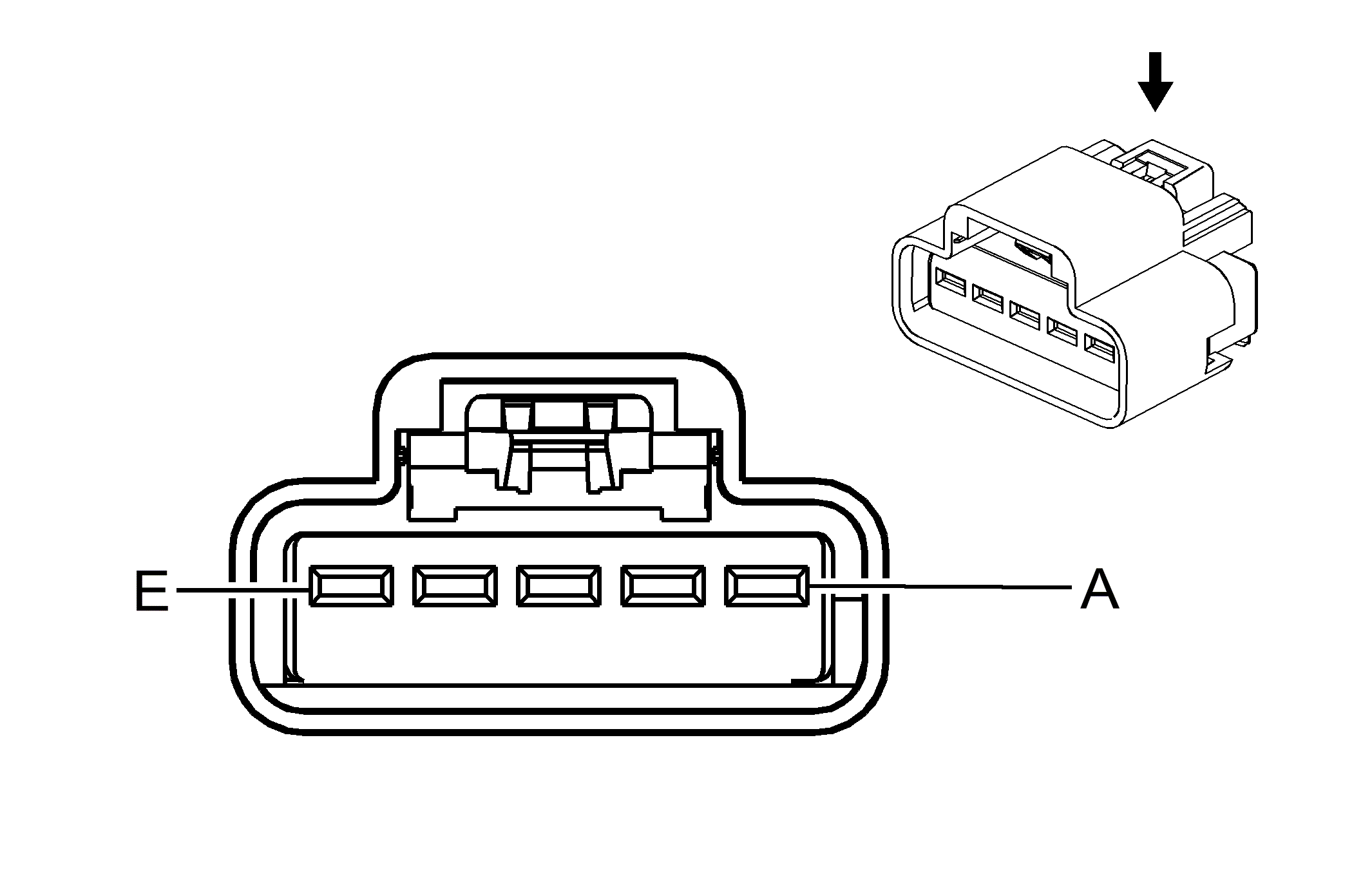

Rear Window Wiper Motor (X88)
Courtesy of GENERAL MOTORS CORP. Rear Window Wiper Motor (X88)
| Pin |
Wire |
Circuit |
Function |
| A |
1 BK |
650 |
Ground |
| B |
- |
- |
Not Used |
| C |
0.5 L-GN |
2270 |
Rear Window Washer Relay Control |
| D |
0.5 GY |
391 |
Rear Window Wiper Switch Signal |
| E |
1 RD/WH |
3840 |
Battery Positive Voltage |
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 15326893
- Service Connector: 89046647
- Description: 5-Way F GT 280 Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575753
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304711/8
- Core/Insulation Crimp: Pins: A, E - 2/A
- Core/Insulation Crimp: Pins: C, D - E/A
|
