Release Systems Schematics

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

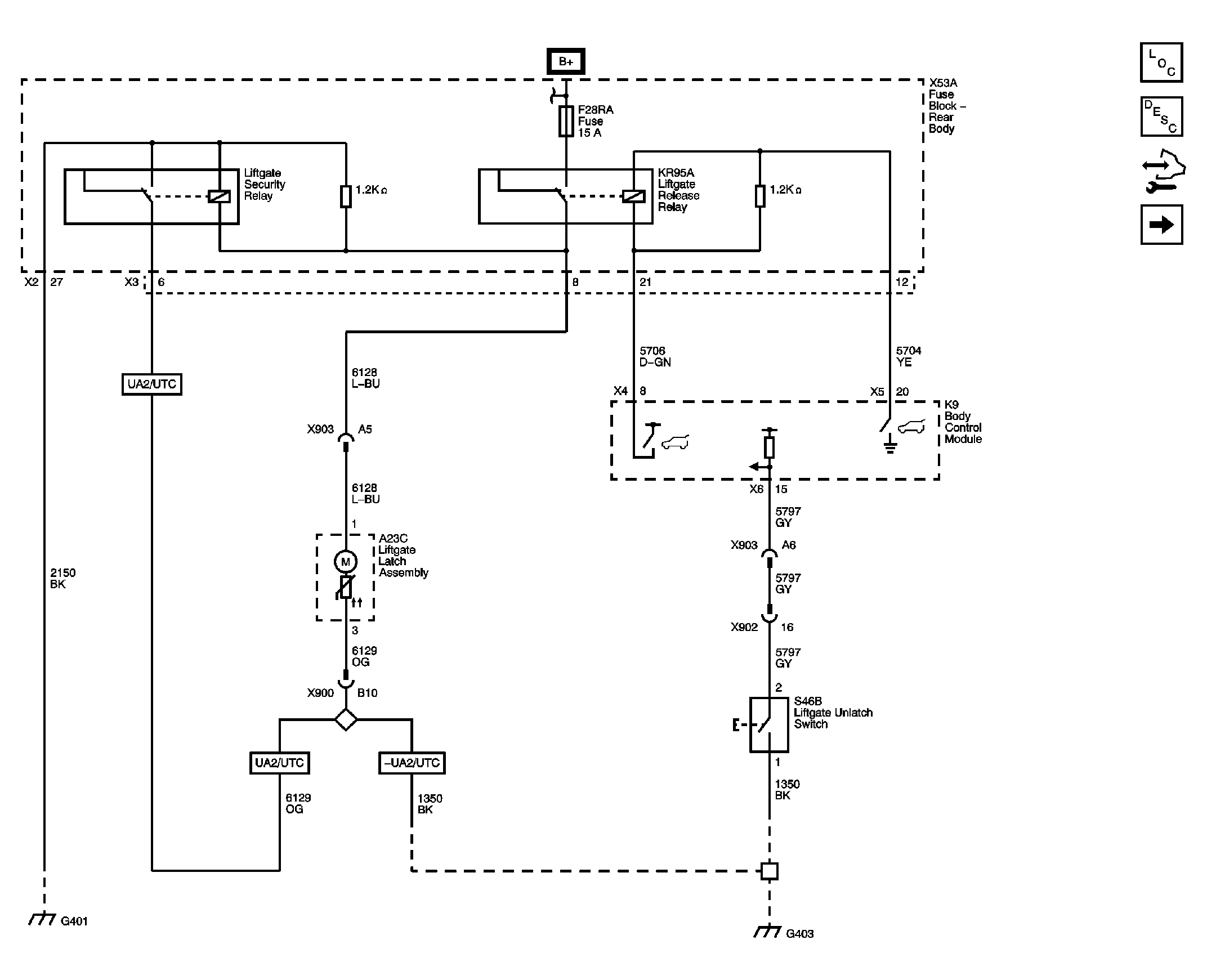

Fig 1: Liftgate Release Controls Circuit Schematic (Without TB5)

Courtesy of GENERAL MOTORS CORP.

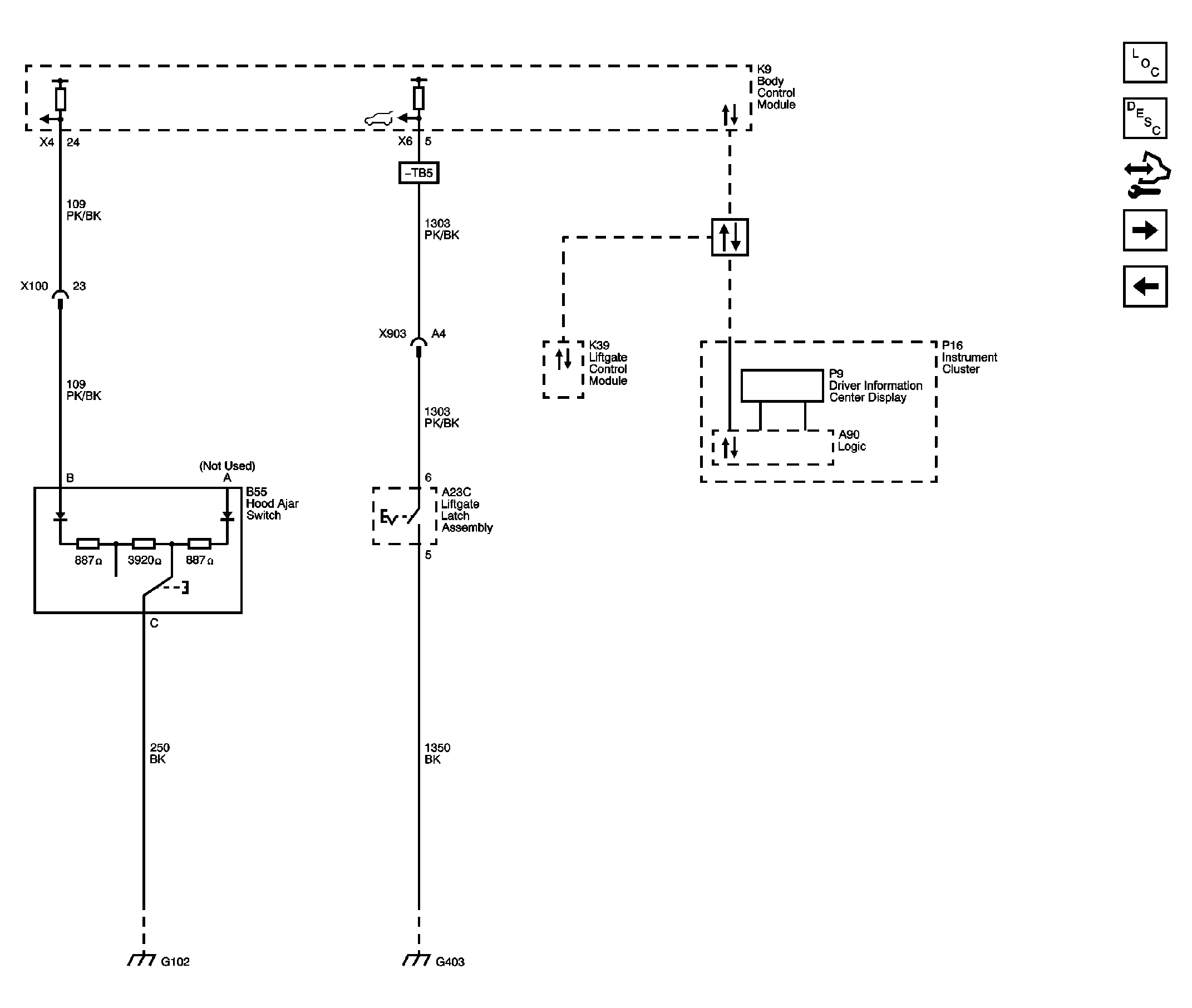

Fig 2: Liftgate Ajar Switch Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

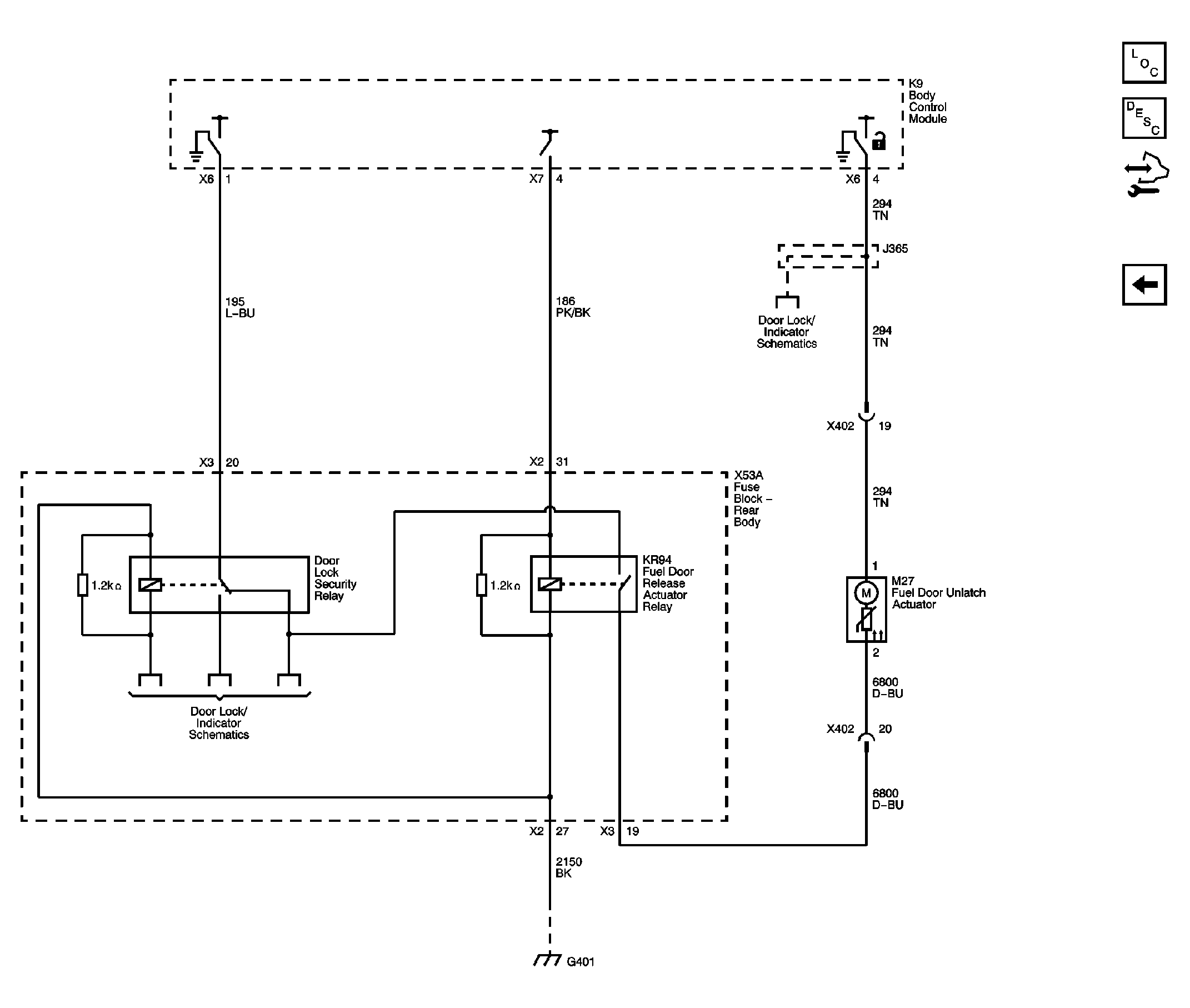

Fig 3: Fuel Door Release Circuit Schematic (NO8)

Courtesy of GENERAL MOTORS CORP.
