Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

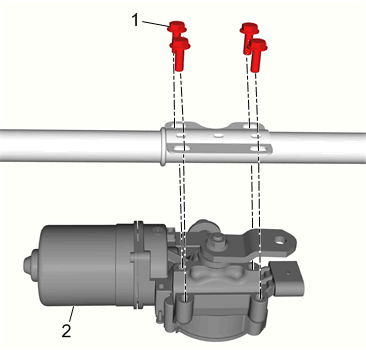

    Fig 1: Windshield Wiper Motor
    GM4292983Courtesy of GENERAL MOTORS COMPANY
  1. Install Windshield Wiper Motor (2).

    Install Windshield Wiper Transmission Bolt (1) and tighten 15 N.m (11 lb ft)

    2. Fig 2: Lower Transmission Arm And Crank Arm
    GM4293062Courtesy of GENERAL MOTORS COMPANY
  2. Use the J-39529  Wiper Linkage Installer (1) to install the lower transmission arm (2) to the crank arm.
    3. Fig 3: Upper Transmission Arm And Crank Arm
    GM4293064Courtesy of GENERAL MOTORS COMPANY
  3. Use the J-39529  Wiper Linkage Installer (1) to install the upper transmission arm (2) to the crank arm.
    4. Fig 4: Transmission Arms And Crank Arm
    GM4293096Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Verify that the alignment of all 3 arms are in the electrically Park position.

  4. Align both transmission arms (1) to the crank arm (2) so that they are in a straight arm.

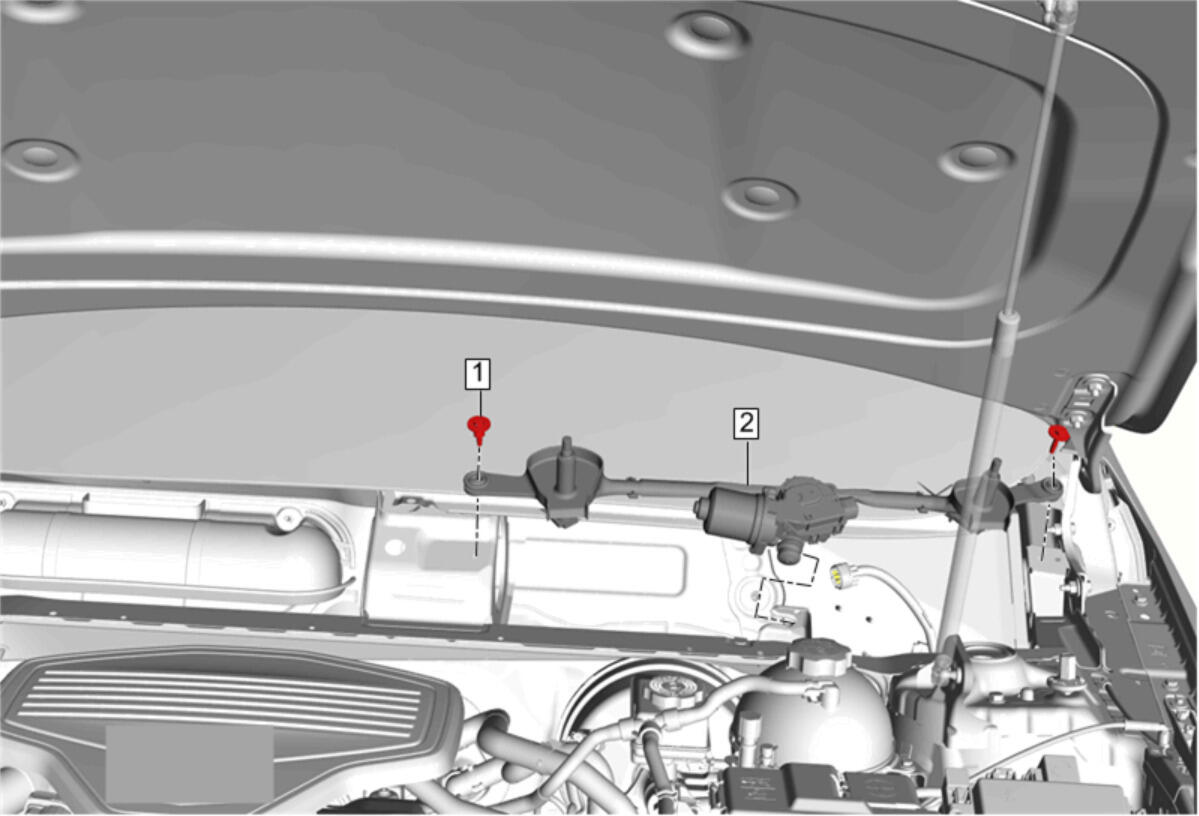

    5. Fig 5: Windshield Wiper Transmission
    GM4281971Courtesy of GENERAL MOTORS COMPANY
  5. Install Windshield Wiper Transmission (2) Windshield Wiper Transmission Replacement
  6. Verify proper windshield wiper motor operation.
