Rear Side Door Window Weatherstrip Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

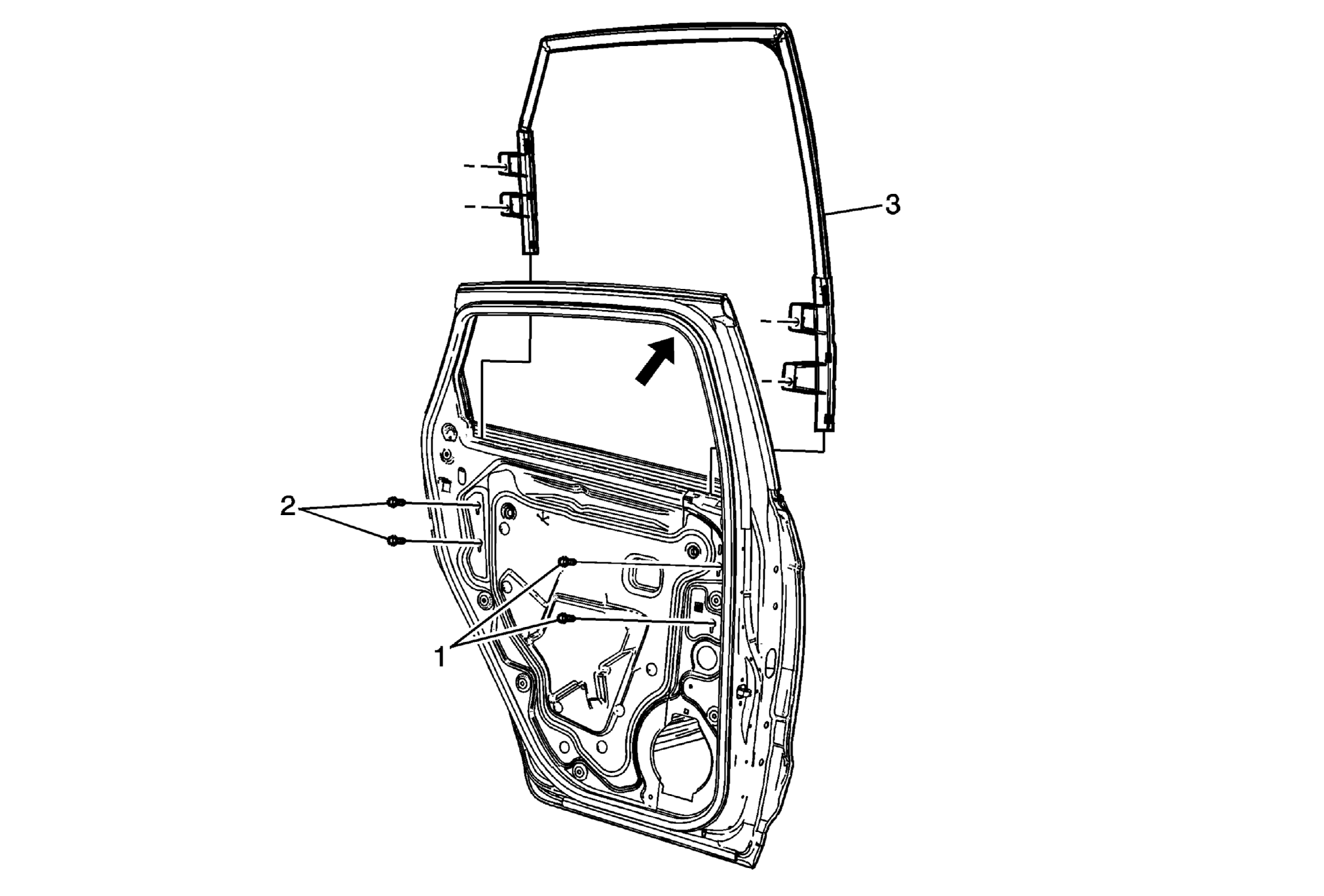

Fig 1: View Of Rear Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement Remove the rear side door window inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement . Remove the rear side door window garnish molding. Refer to Rear Side Door Window Garnish Molding Replacement Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Window Weatherstrip Front Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure: Remove the water deflector. Tighten: 10 N.m (89 lb in)
2	Rear Side Door Window Weatherstrip Rear Fasteners (Qty: 2) Tighten: 10 N.m (89 lb in)
3	Rear Side Door Window Weatherstrip Procedure Starting in the upper corner of the door frame, pull the weatherstrip out of the window frame. Center the weatherstrip in door frame. Work the weatherstrip towards the corners of the door frame. Operate the window to ensure that the window seal properly into the inner door frame.
