Rear Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

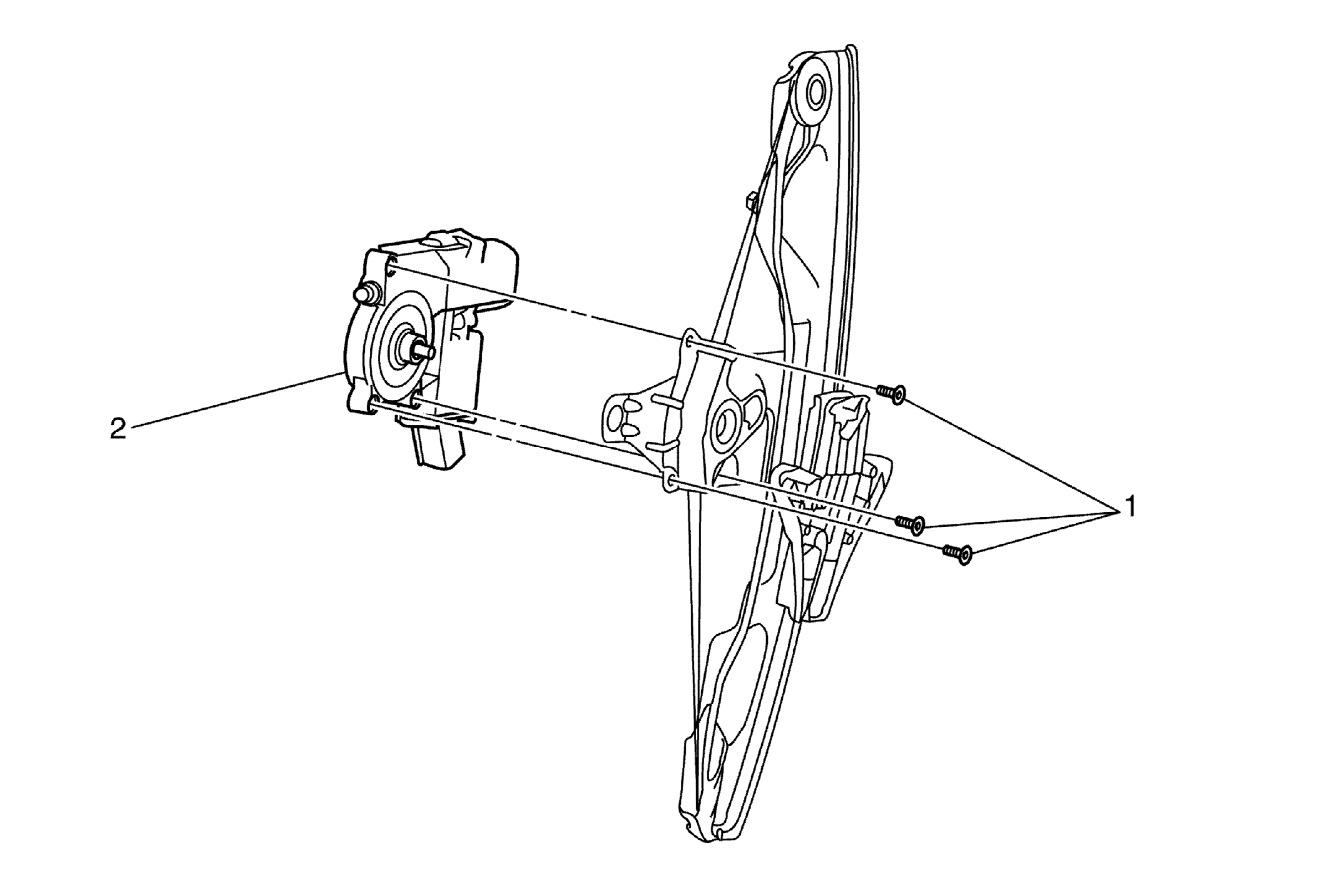

Fig 1: View Of Rear Side Door Window Regulator Motor & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement . Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .
1	Rear Side Door Window Regulator Motor Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Rear Side Door Window Regulator Motor Procedure: Disconnect the electrical connector from the motor.

Callout

Component Name

Preliminary Procedures

Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .
Remove the rear side door window regulator. Refer to Rear Side Door Window Regulator Replacement .

Rear Side Door Window Regulator Motor Fastener (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Rear Side Door Window Regulator Motor
Procedure:
Disconnect the electrical connector from the motor.
