Load Floor Rear Compartment Cover Handle Replacement
WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

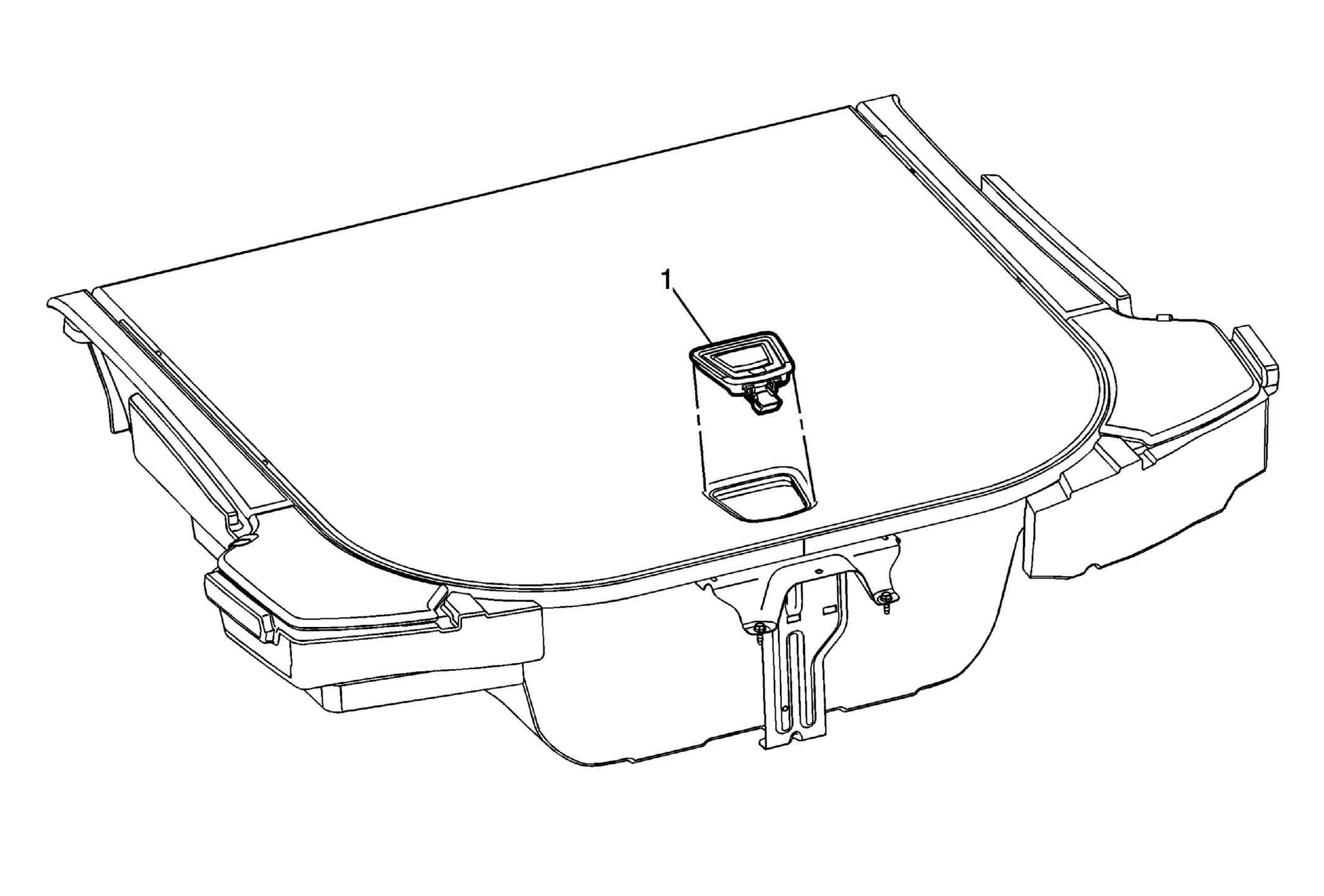

| Callout |
Component Name |
| 1 |
Load Floor Rear Compartment Cover Handle Assembly
Procedure:
Pull handle upward. From the backside squeeze the retaining clips to release part from cover assembly. |
