Body Hinge Pillar Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

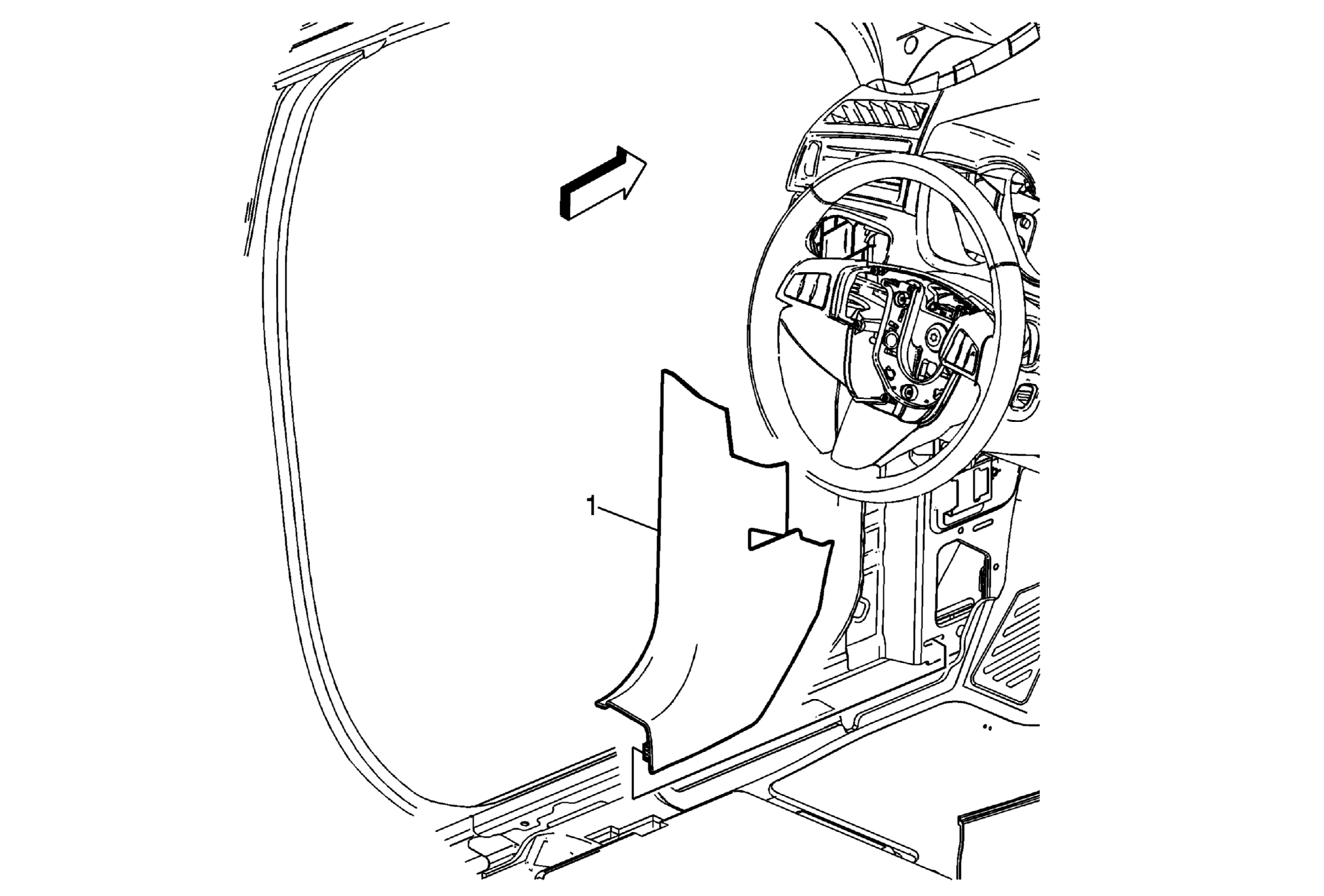

Fig 1: View Of Body Hinge Pillar Trim Panel
GM2233322Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel side trim panel. Refer to Instrument Panel Side Trim Panel Replacement
1 Body Hinge Pillar Trim Panel Assembly
Procedure:
Reposition the front floor panel carpet as needed.
