Water Pump Pulley Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

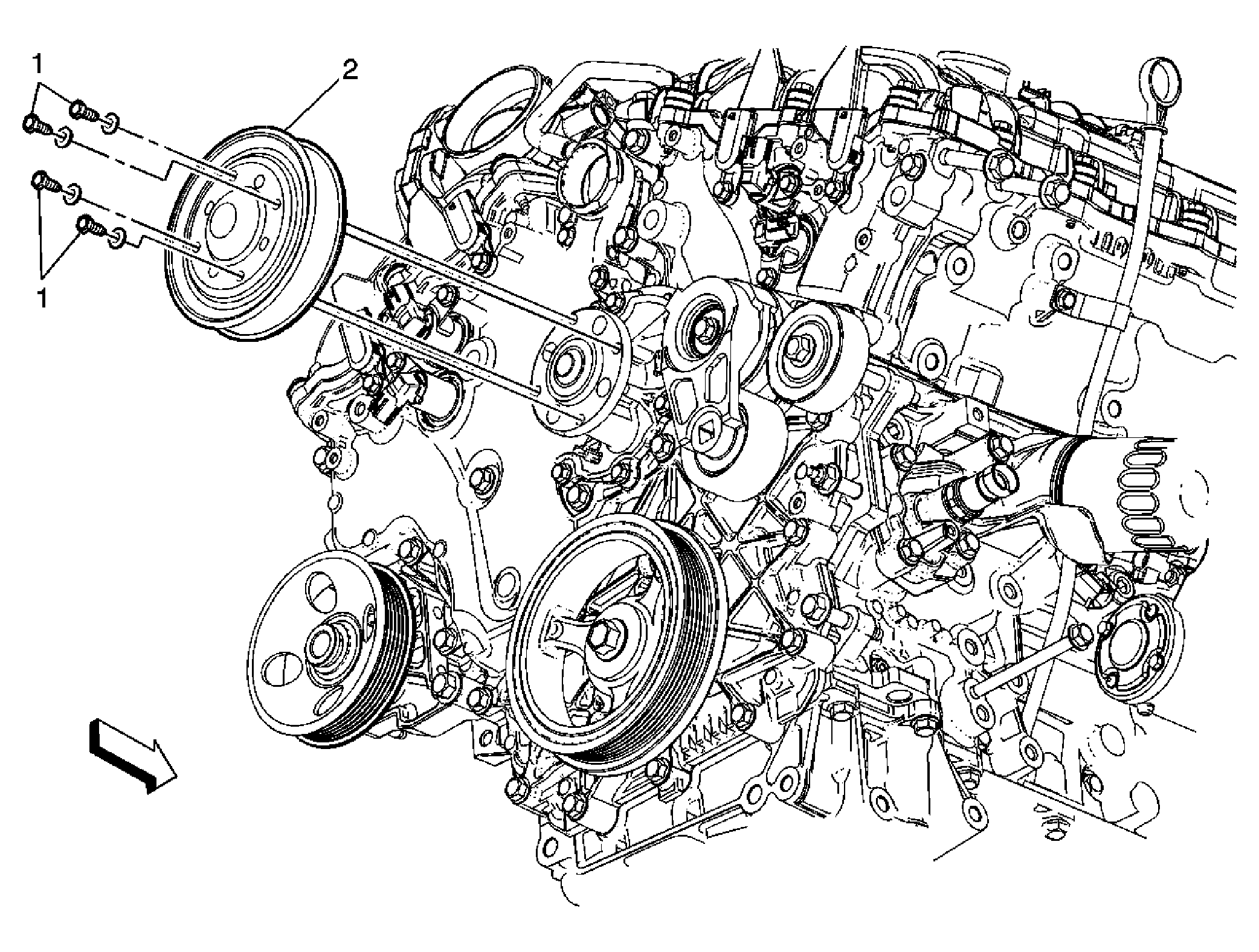

Fig 1: View Of Water Pump Pulley
GM2362743Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary procedures:
Remove the drive belt.Refer to Drive Belt Replacement
1 Water Pump Pulley Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  12 N.m (9 lb ft)


Tools Required:
EN 46104:  water pump pulley holding tool
For equivalent regional tools, refer to Special Tools
2 Water Pump Pulley
