Installation Procedure

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Install radiator inlet hose to the vehicle.

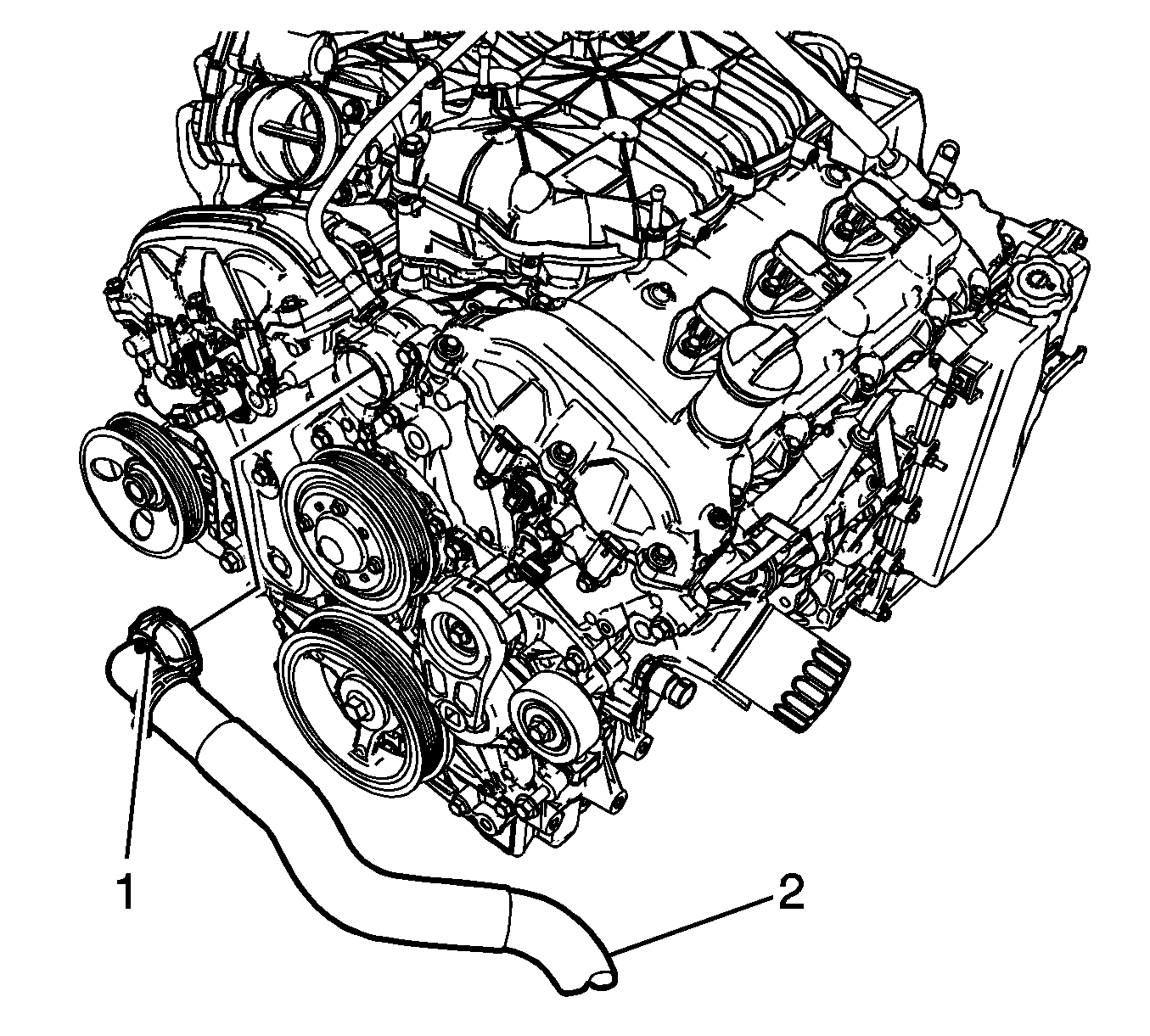

Fig 1: Identifying Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

NOTE: Lubricate the inside diameters of the hose with clean coolant prior to installation.

Clip the radiator inlet hose (2) to the engine.

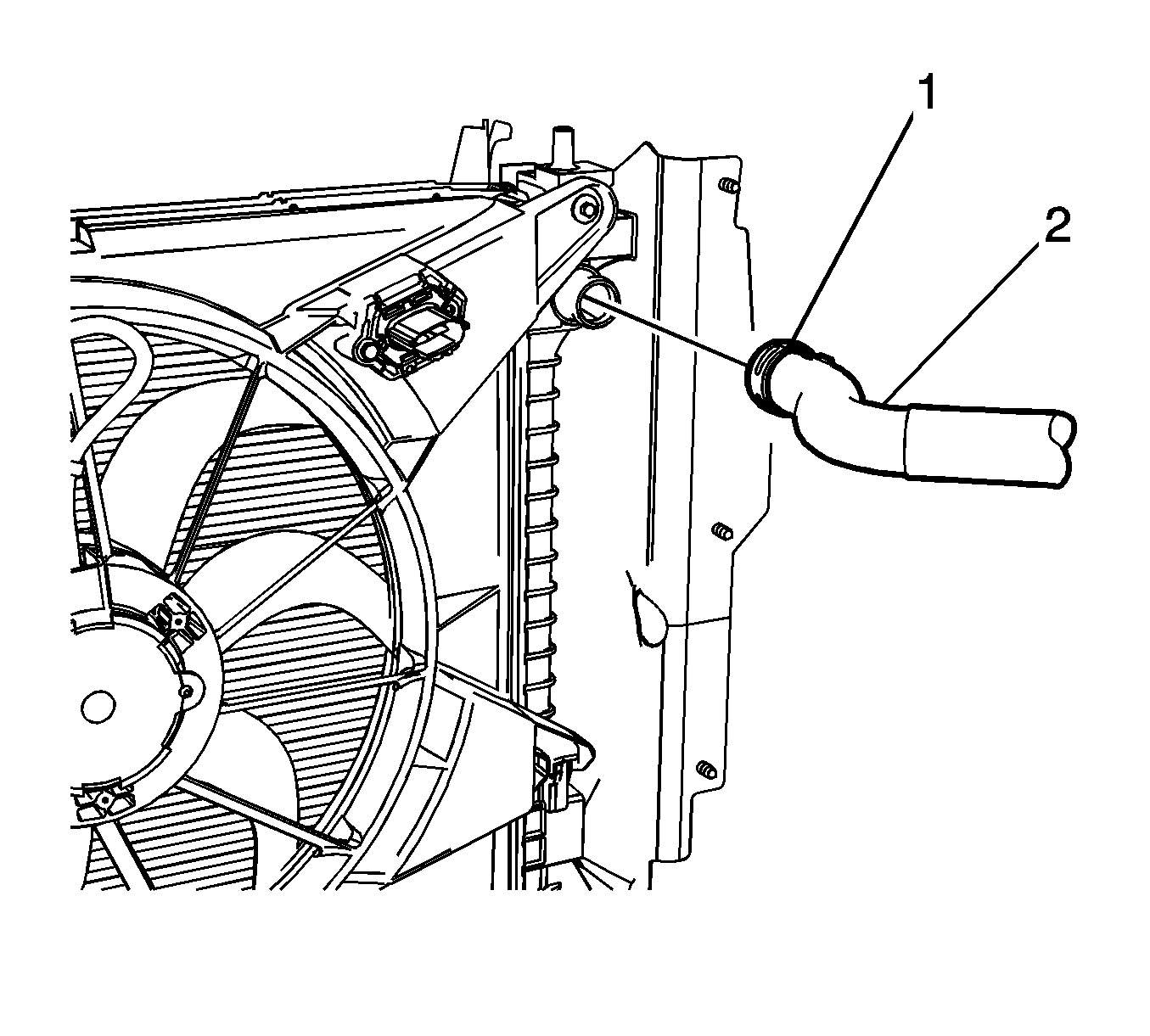

Fig 2: View Of Radiator Inlet Hose & Clamp

Courtesy of GENERAL MOTORS CORP.

Install the radiator inlet hose (2) to the radiator.
Engage tension on the radiator inlet hose clamp (1) at the radiator using BO-38185: Hose Clamp Pliers.
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill LF1) or Cooling System Draining and Filling - Vac-N-Fill (GE 47716) or Cooling System Draining and Filling (Static Fill LAU) .
